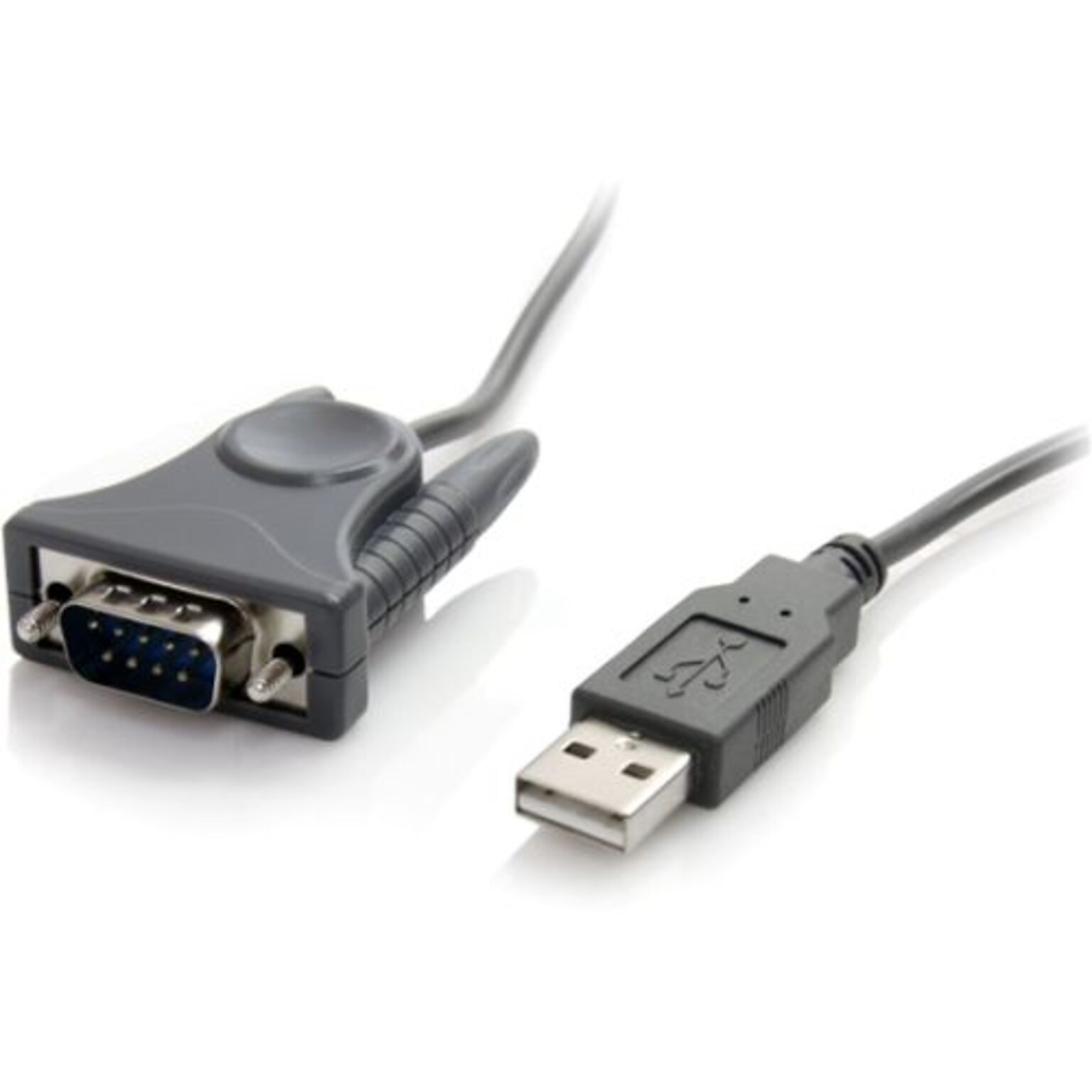

Startech ICUSB232DB25 USB To RS232 DB9/DB25 Serial Adapter Cable
Item #:
901-DE4073ING
Model #:
DE4073
Brand:
StarTech
Not yet rated. Be the first to
Write a review!
Description
Startech.com® Serial adapter cable supports USB transfer speeds of up to 12 Mbps and lets you connect 9-pin or 25-pin RS232 serial devices to your laptop.
- Data transfer rate: 230.4 Kbps
- Ports: connector on first end: 1 x 9-pin DB-9 male RS-232 serial, connector on second end: 1 x type-A male USB 2.0 USB
- Conductor: Copper
- Cable length: 3'
- Chipset ID: Prolific - PL-2303
- Max baud rate: 230.4 Kbps, Serial protocol: RS-232, Data bits: 4, 5, 6, 7, 8, FIFO: 512 bytes, Flow control: none, Xon/Xoff, hardware, Parity: none, even, odd, mark, space, Stop bits: 1, 1.5, 2
- Bus type: USB 2.0, Port style: Cable adapter
- Cable type: Serial
- Environmental condition: Operating temperature: 0 to 70 deg C, Humidity: 5 - 85% RH
- Operating system: Windows 8/7/Vista/XP/XP Embedded/POS Ready 2009/Embedded System 2009/CE 4.2/5.2/Mobile 5/6/PocketPC 2003/2000/Server 2012/2008 R2/2003, Mac OS 10.1 and up, Linux
Specifications
Adapter & Splitter Type
Adapter
Adapter Use
Data
Brand
StarTech
Connector Gender
Male to Male
End 1 Connector Type
Serial
End 2 Connector Type
RS232
USB
Yes
Warranty Information
2 Year
