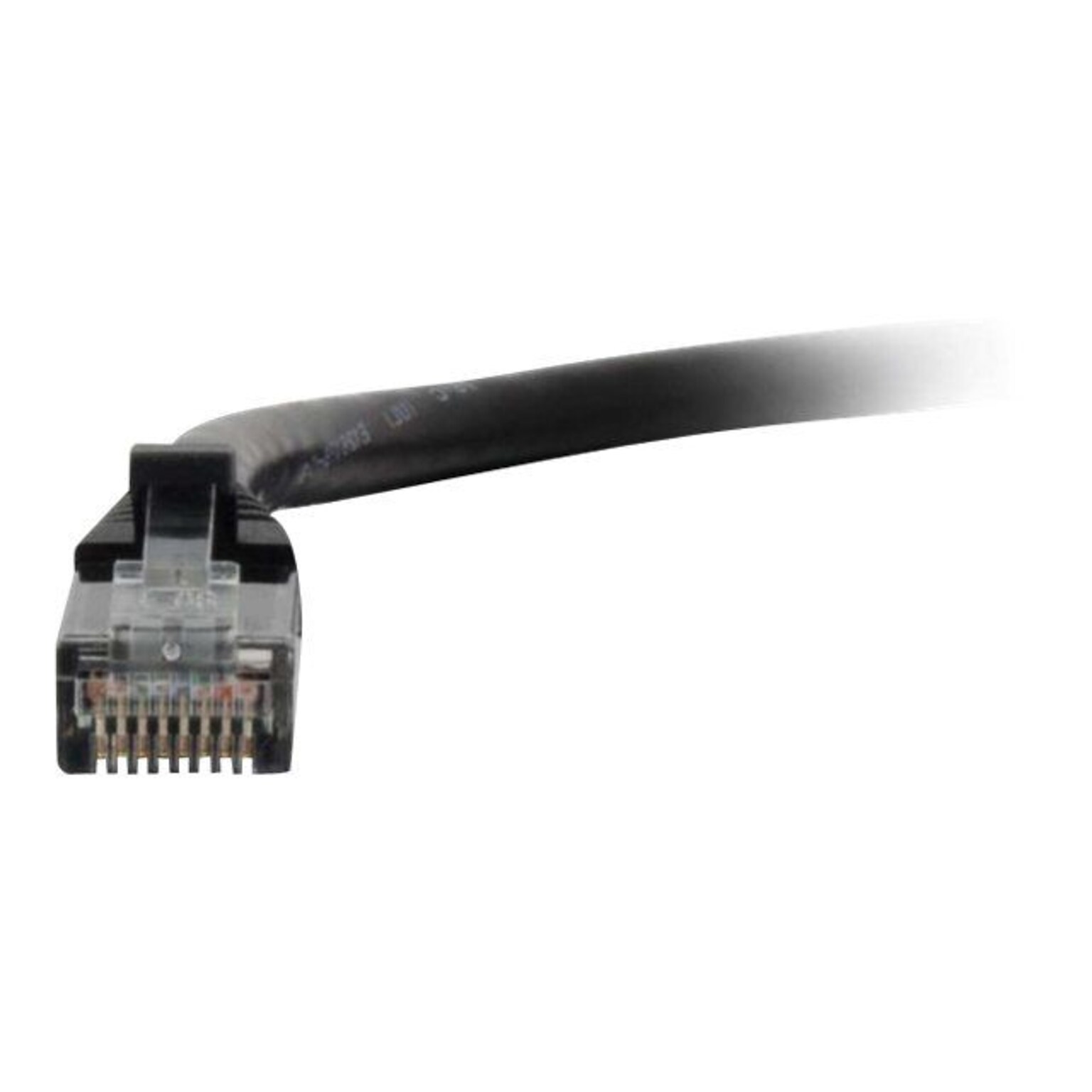

C2G ® 15189 5' RJ-45 Male/Male Cat5e Snagless Unshielded Ethernet Network Patch Cable; Black

See pricing info, deals and product reviews for C2G ® 15189 5' RJ-45 Male/Male Cat5e Snagless Unshielded Ethernet Network Patch Cable; Black at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1120415IN
  Model #: 15189
Brand: C2G Cables to Go
Not yet rated.Be the first to Write a Review!
C2G ® 15189 5 RJ-45 Male/Male Cat5e Snagless Unshielded Ethernet Network Patch Cable; Black
$8.49 Each
Delivery Date:

Enter Zip Code
Parcel
Description
The C2G 5' black Cat5e snagless unshielded Ethernet network patch cable features RJ-45 male connectors on both the ends for enhanced connectivity. This male/male cable with an FR-PVC jacket truncates both impedance and structural return loss. The cable has a 24 AWG stranded bare copper conductor, which minimizes near-end crosstalk levels. This patch cable maintains the twist spacing throughout the line to the termination point. It is compatible with hub, switch, router, network adapter, modem DSL/cable, patch panel and other high-performance networking applications.
  • Cat5e snagless network patch cable for fast Ethernet network, requiring bandwidth-intensive voice, data/video distribution applications
  • Cable length: 5'
  • Connections: one 8-pin RJ-45 male connector on both ends
  • Connectivity: Wired
  • FR-PVC Jacket for added durability and 24 AWG stranded bare copper conductors for excellent signal transmission
  • Meets RoHS, EIA/TIA 568B.2 standards and certifications
  • Contact material: 50 micron gold-plated copper alloy
  • Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
  • Comes in black color
  • Data transfer rate: 1000 Mbps
  • Diameter: 5.3 mm OD jacket, 0.95 + 0.05 mm insulation, thickness: 0.55 mm jacket
  • Voltage rating: 30 V, Dielectric strength: 500 MV/m
  • Resistance: 89 ohm/km (maximum) DC conductor, 100 ohm/km (minimum) insulation
  • Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
  • Temperature: 60 deg C
  • Snagless design protects clips while plugging and unplugging operation
  • Perfect for 1000base-T, 100base-T, 10base-T, 4/16 Mbps Token Ring, 100 VG-Any LAN, 100 Mbps TP-PMD, 55/155 Mbps ATM and voice
  • Weight: 0.13 lbs.
  • Comes with lifetime warranty
Specifications
Brand : C2G Cables to Go Customizable : No
Weight : 0.15 lbs. per Each
