StarTech D86A2-2-PORT-8K-KVM USB DisplayPort 2-Port KVM Switch
Item #:
369-IM1HK9272
Model #:
D86A2-2-PORT-8K
Brand:
StarTech
Not yet rated. Be the first to
Write a review!
New
$402.99
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.

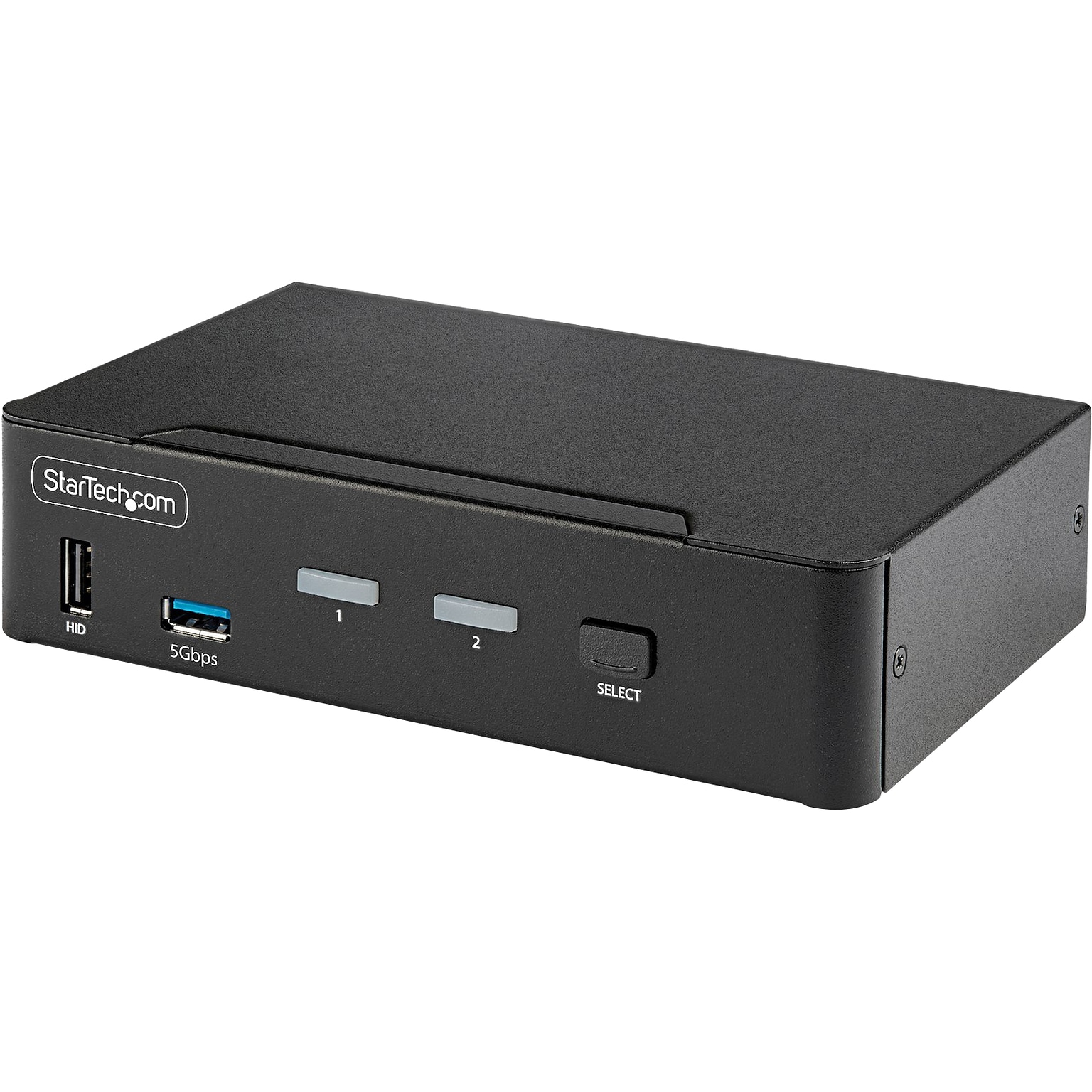

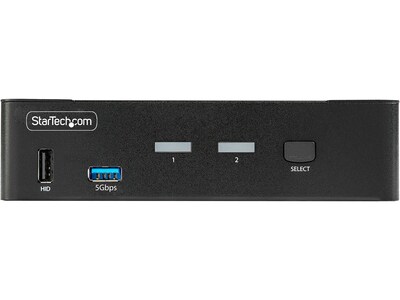

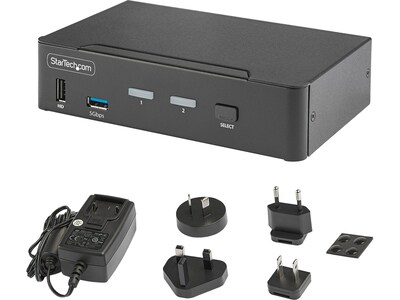

StarTech D86A2-2-PORT-8K-KVM USB DisplayPort 2-Port KVM Switch
Limited quantity available: 3 remaining
Description
Share and switch between two USB-A and DisplayPort-enabled computers, using this StarTech DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices. This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Perfect for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity. This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
- Dual-port KVM switch to share and switch between two USB Type-A and DisplayPort-enabled computers

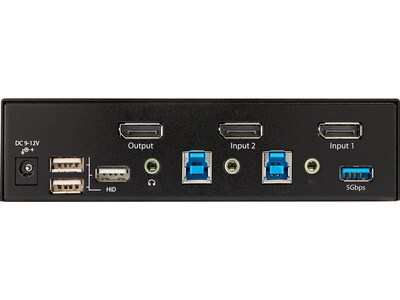

- Console interfaces: 2 x USB Type-A (9-pin, 5Gbps), 4 x USB Type-A (4-pin, 480Mbps), 1 x DisplayPort, and 1 x 3.5mm (female, three-position) stereo ports
- Host connectors: 2x USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps), 2x DisplayPorts, 2x 3.5mm stereo female 3 pos ports
- Compatible with USB Type-A and DisplayPort-enabled computers, keyboards, monitors, mouses
- Dimensions: 1.6"H x 3.9"W x 6.3"L
- Supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz and ultrawide resolutions of up to 5120x1440 at 60Hz
- Perfect for applications such as CAD/CAM, video editing, and content creation
- Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity
- Provides various switching options, including hotkey or push-button switching
- Works with all operating systems, including Windows, macOS, ChromeOS, and Linux
- Compatible with all hardware platforms, including Intel and AMD
- Durable metal housing helps prevent electromagnetic interference (EMI)
- Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns
- Meets or exceeds RoHS, CE, WEEE, TAA standards
- 2-year manufacturer limited warranty
Specifications
# of Ports
2
Brand
StarTech
Connector, Port or Interface Type(s)
USB Type-A (9 pin), USB 2.0 Type-A (4 pin), DisplayPort, 3.5mm Stereo Female 3 pos, Barrel Power Connector, USB 3.2 USB Type-B (9 pin)
Connects Devices (To and From)
Desktops, Keyboard, Mouse, Audio Device, Monitor
DisplayPort
Yes
Input Voltage
100 - 240V AC
IP Control
No
KVM Cable or Switch Type
KVM Switch
Maximum Resolution
7680 x 4320 @ 60Hz
Number of Computers Supported
2
Number of Monitors
1
OS Compatibility
Windows, macOS, ChromeOS, and Linux
Port Selection
Push Button and Hotkeys
Power Consumption (Watts)
36
Power Source
Ac Powered
Rack-Mountable
Not Rack-Mountable
USB
Yes
Warranty Information
2 Year
