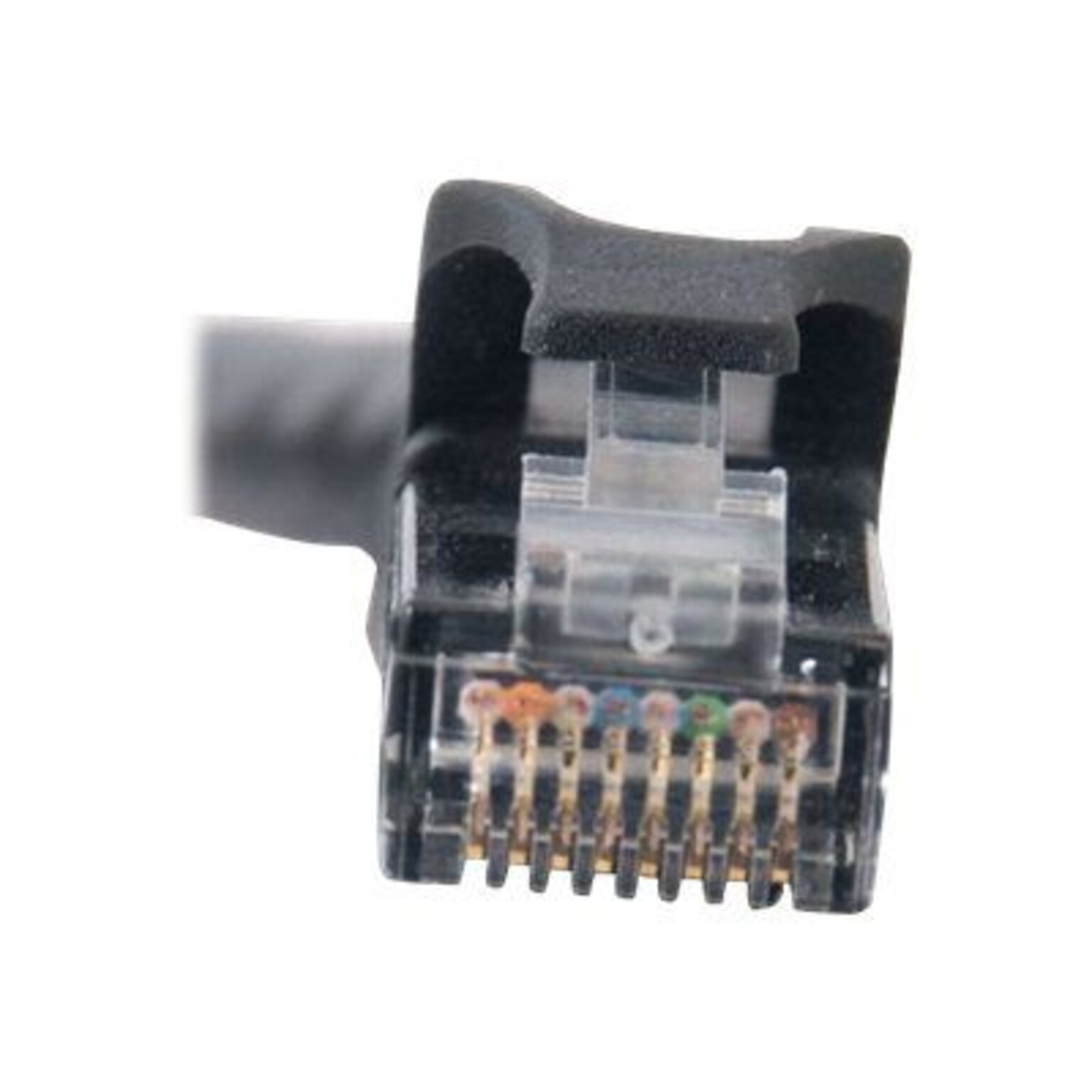

C2G 27153 10' Black RJ-45 Male/Male Cat6 Snagless Unshielded Network Patch Cable for Network Adapters/Hubs
See pricing info, deals and product reviews for C2G 27153 10' Black RJ-45 Male/Male Cat6 Snagless Unshielded Network Patch Cable for Network Adapters/Hubs at Quill.com. Order online today and get fast, free shipping for your business.
The C2G 27153 10' Cat6 snagless unshielded black network patch cable is ideal for fast Ethernet networks requiring bandwidth-intensive voice, data or video distribution applications. This cable with RJ-45 male to RJ-45 male connection, reduces impedance as well as structural return loss and has shortened body plug to keep minimum Near-End crosstalk levels. It has HDPE insulation and PVC jacket for durability. High quality 4-pair 24 AWG stranded bare copper cable eliminates unwanted cable snags during installation and offers extra strain relief. The 50-micron gold plated contacts ensure good signal conductivity. Works well with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other twisted-pair applications.
Network patch cable is suitable for Fast Ethernet and Gigabit computer networks
Dimensions: 10'L
Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
Features black polycarbonate connector, PVC jacket, molded PVC hood, copper alloy contact and HDPE insulation
Has RJ-45 male to RJ-45 male end for connectivity
4-Pair 24 AWG stranded bare copper conductors for better electrical conductivity
50-micron gold plated contacts for protection against corrosion
0.6 mm Nominal thickness, 6.2 +/- 0.3 mm O.D., 0.98 +/- 0.05 mm Dia. conductor
DC resistance: 9.38 Ohm/100 m max
Frequency: Up to 500 MHz
Voltage: 30 V
Impedance: 100 Ohm, Capacitance: 5600 pf/100 m, Propagation delay: 545 ns/100 m maximum, Delay skew: 45 ns/100 m maximum
Perfect for Gigabit 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5) and 100 VG-Any LAN applications
Temperature rating: 60 deg C
Snagless design secures clips when plugging and unplugging
Includes standard RJ-45 connectors and unshielded twisted pair wires
Meets RoHS compliance and TIA/EIA standards and certifications
Weight: 0.25 lbs.
Comes with lifetime warranty
Specifications
Brand : C2G Cables to Go
Customizable : No
Weight : 0.30 lbs. per Each
