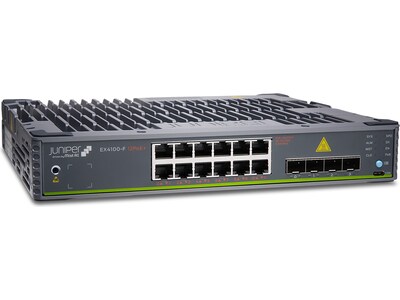

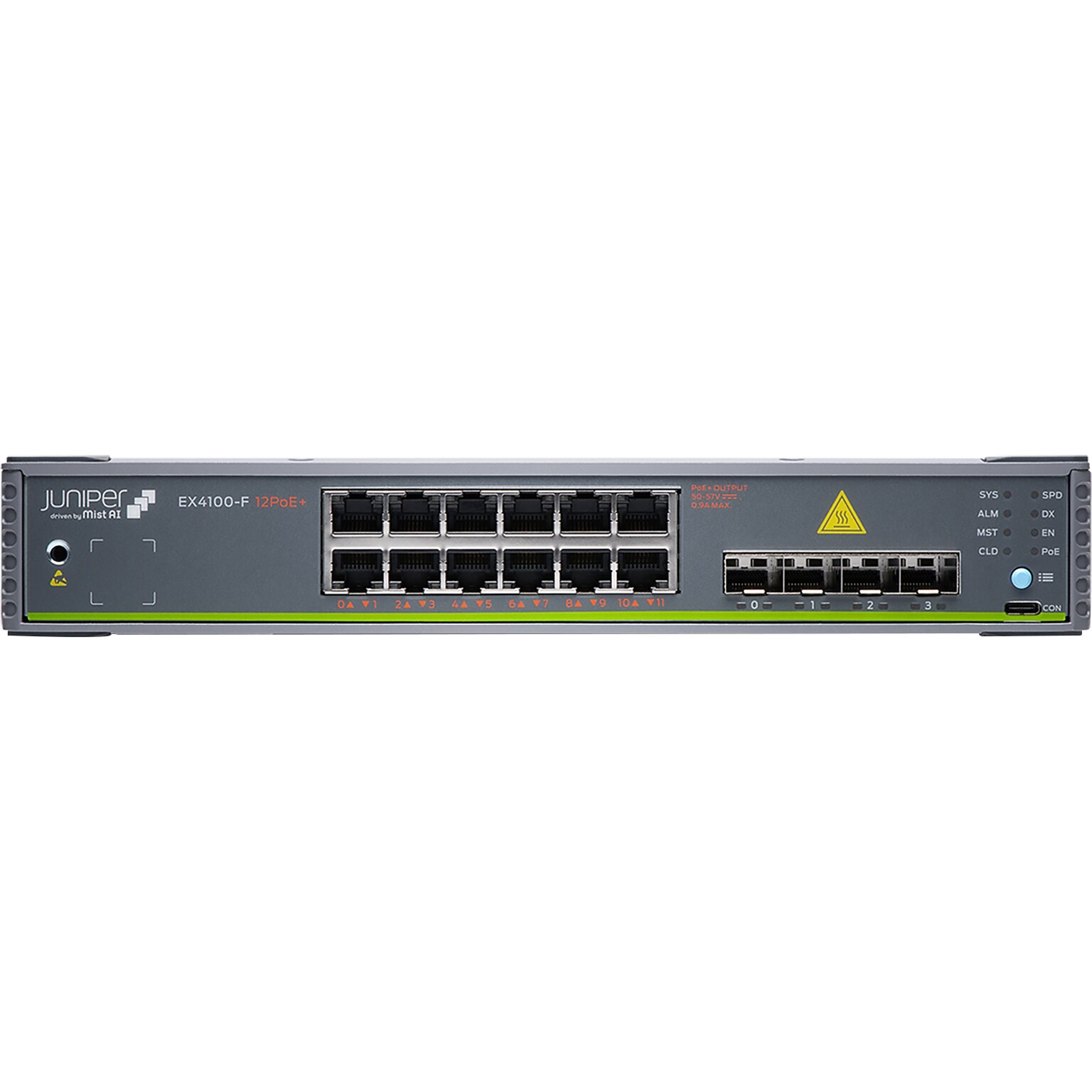

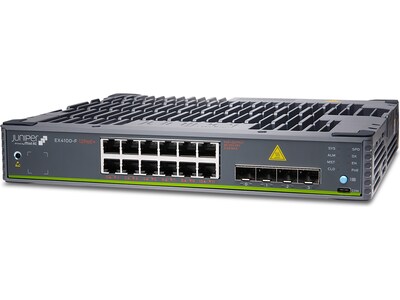

Juniper EX4100-F 12-Port Gigabit Ethernet PoE+ Managed Switch (EX4100-F-12P)
$4,396.00
Per each
Juniper EX4100-F 12-Port Gigabit Ethernet PoE+ Managed Switch (EX4100-F-12P)
Item #:
369-IM107YR46
Model #:
EX4100-F-12P
Brand:
Juniper
Not yet rated. Be the first to
Write a review!
New
$4,396.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.
Juniper EX4100-F 12-Port Gigabit Ethernet PoE+ Managed Switch (EX4100-F-12P)
Description
The EX4100-F-12P, which is a compact, fanless switch offering 12 x 1GbE Power over Ethernet Plus (PoE+) access ports and delivering up to 30W per port with a total of 180W of PoE power budget with an external power adapter. EX4100-F-12P can also be powered from an external 90W power sourcing equipment (PSE) device connected via the uplink port. Additional 90W of PoE budget is available if the second uplink port is connected to a PSE device. With external power adapter and the two uplink ports connected to 90W external PSE, total PoE power budget supported is up to 300W.
- Managed switch with 12 x 10/100/1000BASE-T PoE+, 2 x 100Mb/1GbE/2.5GbE/5GbE/10GbE uplinks, 4 x 10GbE stacking/uplink ports, with Standard SW ports
- The EX4100-F-12P fanless switch offering 12 x 1GbE PoE+ access ports and delivering up to 30W per port with a total of 180W of PoE power budget with an external power adapter
- Features 256Gbps switching capacity
- Comes in 1 RU form factor
- SNMP: v1, v2c, v3; RFC 1157 SNMPv1, RFC 2011 SNMPv2 for Internet Protocol using SMIv2, RFC 2012 SNMPv2 for transmission control protocol using SMIv2
- Quality of Service (QoS): L2 QoS, L3 QoS, ingress policing: one rate two color, 12 hardware queues per port (eight unicast plus four multicast), Strict priority (SP) and weighted deficit round-robin (WDRR) scheduling methods (egress), 802.1p, (DSCP)/IP precedence trust and marking, L2-L4 classification criteria
- Meets or exceeds the CAN/CSA-C22.2 No. 62368-1 and 60950-1, UL 62368-1 and 60950-1, IEC 62368-1 and 60950-1 (All country deviations): CB Scheme report, IEC 62368-3 for USB and PoE: CB Scheme report, CFR, Title 21, Chapter 1, Subchapter J, Part 1040, REDR c 1370 OR CAN/CSA-E 60825-1- Part 1, IEC 60825-1, IEC 60825-2, and TAA standards
- Onboard (day 0), provision (day 1), and manage (day 2+) the EX4100-F from the cloud with Juniper Mist Wired Assurance, using AI-driven automation and insights to deliver improved experiences for IT staff, end users, and connected devices
- Streamline IT operations, reduce mean time to repair, and deliver a new generation of wired and wireless networks; the EX4100-F provides rich streaming telemetry data for insights into switch health and wired service-level expectations (SLEs) for pre- and post-connection metrics
- Scale with ease, build resiliency, and streamline management with Virtual Chassis and EVPN-VXLAN-based campus fabrics, which help to simplify configuring and maintaining multiple devices
- Standards-based micro segmentation using group-based policies (GBP) leverages underlying VXLAN technology to provide agnostic endpoint access control for consistent security policies and granular control of application, business function, or user tags
- Take segmentation to the next level by separating traffic within the same VLAN so IoT devices or users can traverse any port or switch within the network; maintain the same security policies without having to manually configure them each time
- Enables per-flow level analytics, so you can monitor thousands of traffic flows per switch without impacting the CPU
- Dimensions: 1.75"H x 10.59"W x 9.66"D
- Lifetime manufacturer limited warranty
Specifications
Address Database Size
64000
Auto-Detecting
Yes
Auto-Sensing
Yes
Brand
Juniper
Data Rate Performances
10/100/1000Base-T
Depth in Inches
9.66
Ethernet Number of Ports
11 to 20
Gaming
Non Gaming
Height in Inches
1.75
Input Voltage
54V
LACP
Yes
Layer
3
Max. Data Transfer Rate (Mbps)
More than 3000
Network Management Type
Managed Switch
Number of Ethernet Ports
12
Performance Class
Gigabit Ethernet
Port Mirroring
Traffic mirroring
Power Over Ethernet
Yes
Power Supply
External power supply
Quality of Service
Yes
Series or Collection
EX4100-F
SNMP
v1, v2, v3
Stackable
Non-Stackable
Switch Form Factor
Rack Mountable
True Color
Gray
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
6.61
Width in Inches
10.59
Wireless Connectivity
No
