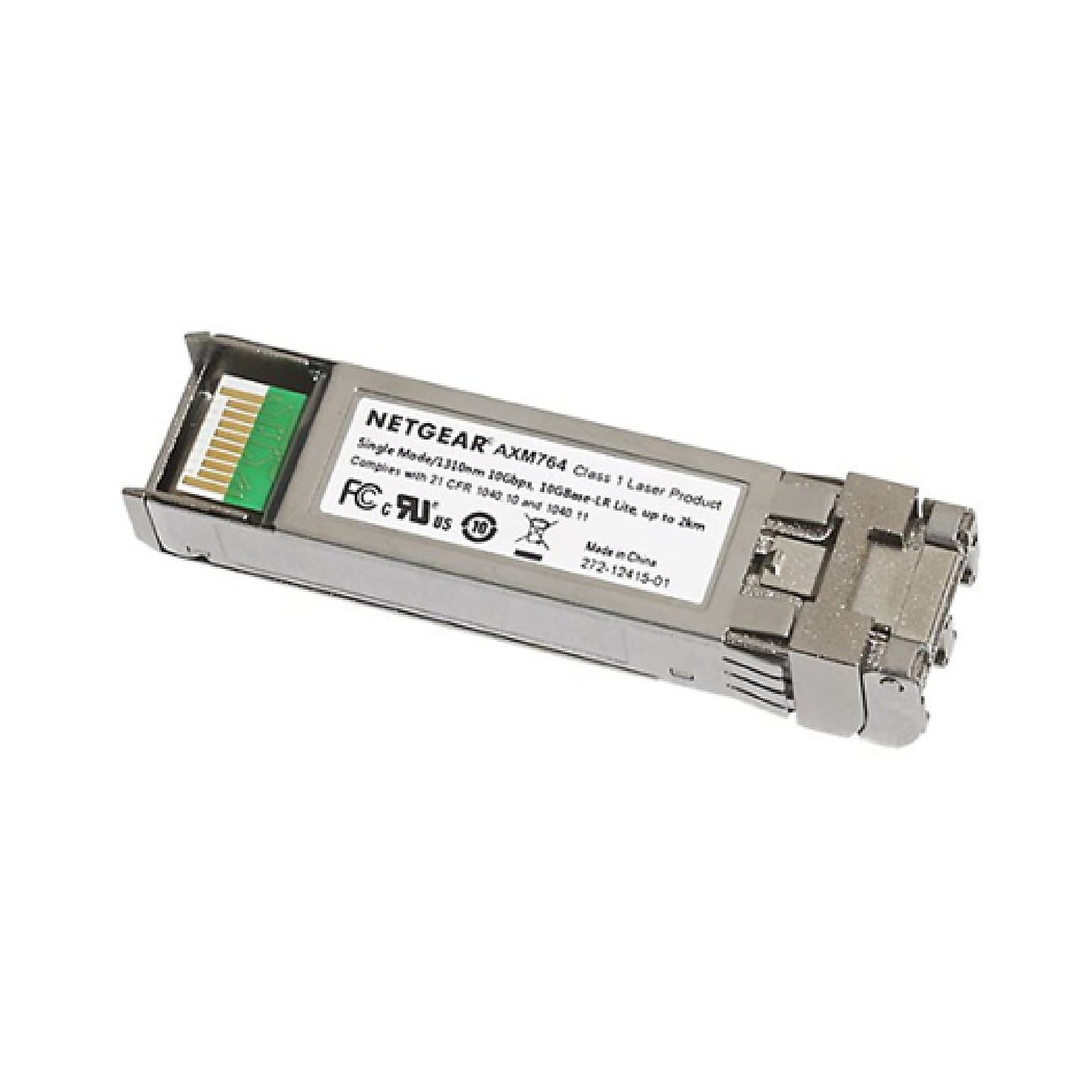

Netgear ProSAFE Gigabit Ethernet Single Mode Transceiver Module, 10000 Mbps (AXM764-10000S)
Item #:
369-IM1ZM9247
Model #:
AXM764-10000S
Brand:
Netgear
Not yet rated. Be the first to
Write a review!
Out of stock
$492.40
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
10GBASE-SR is a port type for MMF (multimode fiber) and uses 850 nm lasers. For longer reach, another standard defined in IEEE 802.3ae is 10GBASE-LR. 10GBASE-LR is a port type for SMF (single mode fiber) and uses 1310 nm lasers. Traditionally SMF 10GBASE-LR SFP+ modules are way more expensive than MMF 10GBASE-LR SFP+ modules. MMF and SMF historical short range / long range paradigm may change in short term: since 2014, for new installations, especially indoor, SMF wiring is about half of MMF wiring. As a consequence, lots of new buildings and datacenters now standardize on SMF. But 10GBASE-LR SFP+ transceivers are too expensive for short-range connections. A new market for short distances over SMF has been created: the industry is standardizing on a new class of SMF 10G transmitters with typical 10GBASE-LR LITE SFP+ transceivers. While not a standard yet, 10GBASE-LR LITE has a specified reach of 2 km over standard 9µm single mode fiber. 10GBASE-LR LITE isn’t a replacement for 10GBASE-LR optics: it is just relevant alternative for “shorter” reach SMF applications.
- Utilizes LC duplex connectors with single-mode fiber (SMF) for high-speed data transmission
- 10GBASE-LR Lite SFP+ transceiver for 10GbE over single-mode fiber
- Data transfer rate of 10 Gigabits per second (10Gbps), equivalent to 10,000 Megabits per second (Mbps)
- Supports maximum transmission distance of up to 2,000 meters over single-mode fiber
- 10 Gigabit Ethernet connectivity for high-speed network performance
- Hot-swappable, allowing installation or removal without powering down the system
- MSA compliant, ensuring interoperability with other MSA-compliant networking equipment
- Operates at a wavelength of 1310 nanometers (nm)
Specifications
Brand
Netgear
Compatibility
Netgear M4300 Series and other SFP+ compatible switches
Connector, Port or Interface Type(s)
SFP+
Data Transfer Rate
10 Gbps
Data Transfer Rate (Gbps)
10
Data Transfer Rate (Mbps)
10000
Depth in Inches
2.2
Ethernet
Yes
Fiber Cable Type
Single Mode
Fiber Connector Type
LC
Gigabit
Yes
Height in Inches
0.5
Hot Swappable
Yes
Material of Item
Metal
Max. Data Transfer Rate (Mbps)
More than 3000
Max. Distance (Meters)
2000
Network Transceiver Type
SFP+
Operating Temperature (Celsius)
0°C to 70°C
Operating Temperature (Fahrenheit)
32°F to 158°F
Protocols
IEEE 802.3ae
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
ProSafe
True Color
Metallic
Used For
High-speed single-mode fiber uplinks in enterprise networks
Weight (lbs.)
0.04
Width in Inches
0.6
