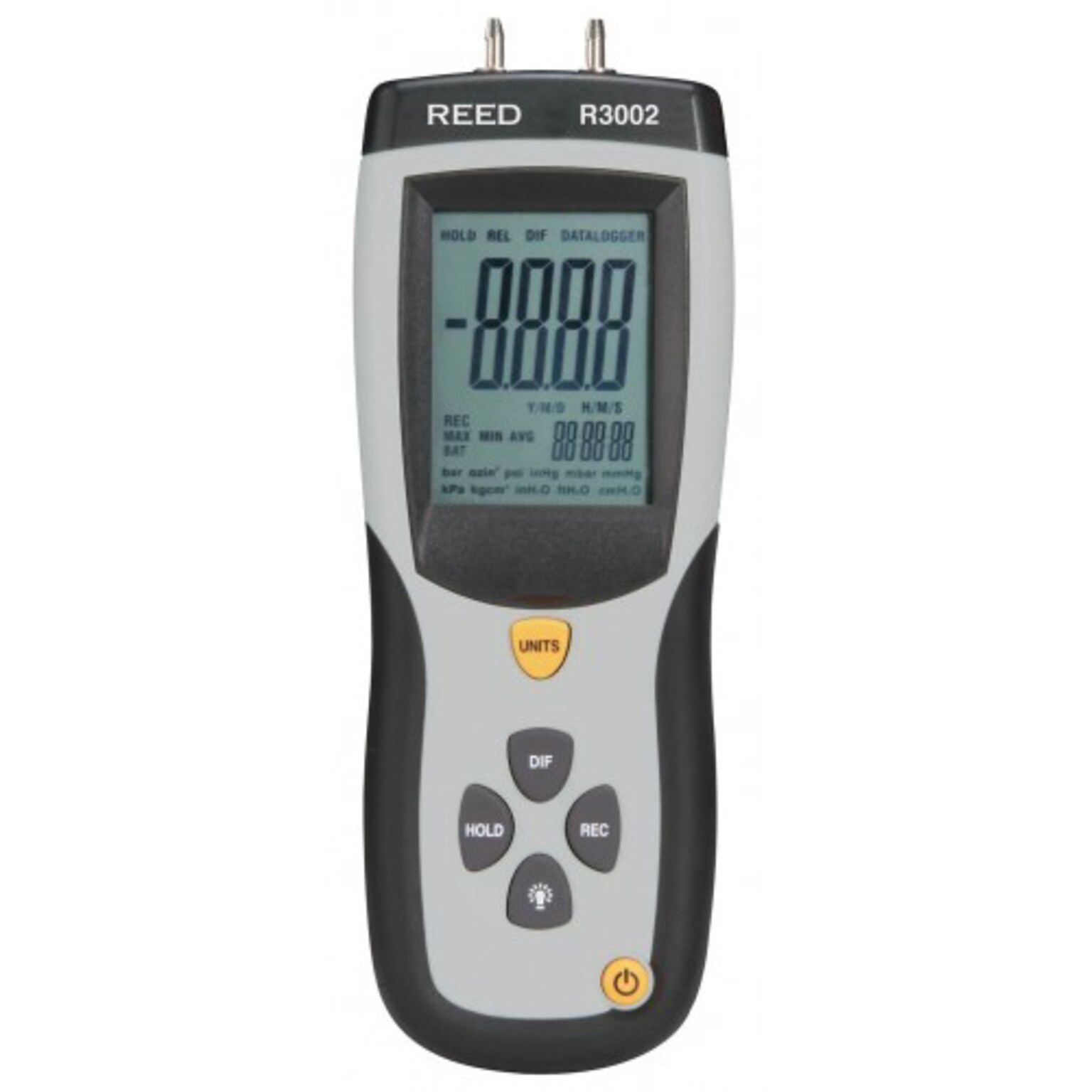

Reed Instruments R3002 Digital Differential Pressure Manometer, Black (R3002)
$249.00
Per each
Reed Instruments R3002 Digital Differential Pressure Manometer, Black (R3002)
Item #:
901-2313811
Model #:
R3002
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
New
$249.00
Per each
Want an extra discount today, and every day? Start your free trial.
Reed Instruments R3002 Digital Differential Pressure Manometer, Black (R3002)
Extended delivery time
Estimated to ship between 10/1/2025 - 10/2/2025
Description
Records maximum, minimum, average and relative measurements
This digital manometer provides accurate measurements in 11 different units of measure and is capable of taking gauge and differential pressure. The R3002 features a large backlit LCD display, an integrated clock to keep track of measurements and the ability to record and revisit recorded data via the included software.
- Measures gauge and differential pressure up to 5psi
- 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, ozin2, ftH2O, cmH2O, kgcm2
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Large, easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- USB interface and software included
- Low battery indicator and auto shut off
- Tripod mount for long-term monitoring
- 8"H x 3"W x 1.5"D
- Black
- Pressure range of 5.000 psi; 138.3 inH2O; 344.7 mbar; 34.47 kPa; 1.018 inHg; 258.5 mmHg; 80.00 ozin2; 11.53 ftH2O; 351.5 cmH2O; 0.351 kgcm2; 0.344 bar
- Resolution of 0.001 psi; 0.1 inH2O; 0.1 mbar; 0.01 kPa; 0.001 inHg; 0.1 mmHg; 0.01 ozin2; 0.01 ftH2O; 0.1 cmH2O; 0.001 kgcm2; 0.001 bar
- Accuracy of + or -0.3% of full scale
- Repeatability of + or -0.2% of full scale
- Hysteresis of + or -0.29% of full scale
- maximum pressure of 20 psi
- Response time of 0.5 seconds
- Includes a USB cable, tubing, a battery, and a hard carrying case
- Powered by a single 9V alkaline battery
Specifications
Brand
Reed Instruments
Depth in Inches
1.5
Digital or Analog
Digital
Environmental Monitoring Type
Manometer
Height in Inches
8
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
R3002
True Color
Black
Width in Inches
3
