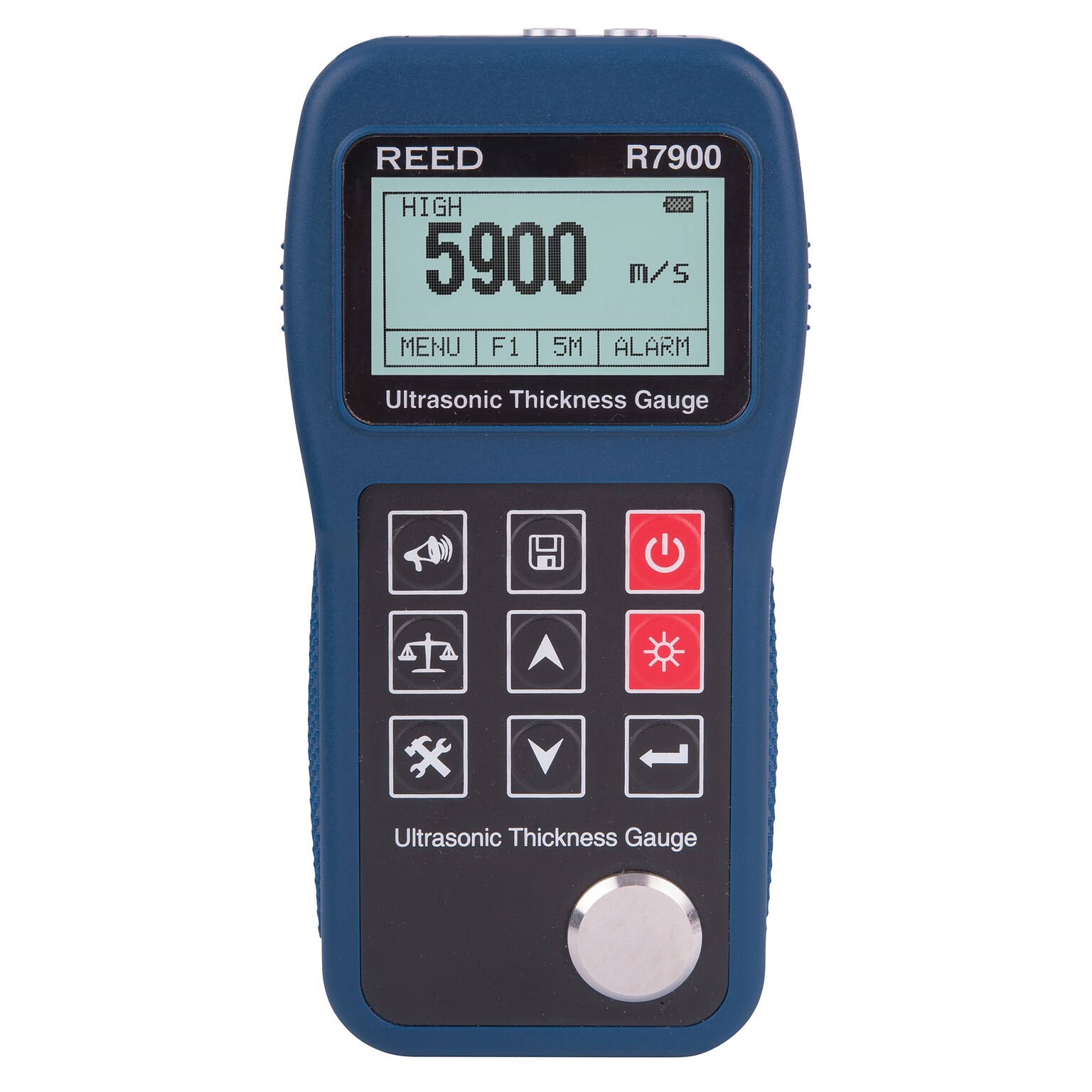

Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
$1,095.00
Per each
Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
Item #:
369-2313787
Model #:
R7900
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
Price drop
$1,095.00
Per each
Want an extra discount today, and every day? Start your free trial.
Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
Description
Internal memory capable or storing up to 500 readings, user adjustable high/low alarms
This ultrasonic thickness gauge has a large backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements.
- Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
- Large, easy-to-read backlit LCD display
- User selectable unit of measure (in/mm)
- Internal memory stores up to 500 measurements
- Displays sound velocity at the touch of a button
- Zero adjustment button
- User adjustable High/Low alarms
- Auto sleep, shut off and low battery indicator
- Built-in two-point calibration function
- 5.0" (h) x 3" (w) x 1.2" (d)
- Blue
- Measurement range of 0.65 to 400.0 millimeters (0.03 to 15.7 inches)
- Sound velocity range of 0.039 to 0.394 in/ s (1000 to 9999 m/s)
- Accuracy of + or -0.04mm at less than 10mm, + or -(0.1% thickness + 0.04mm) at less than 100mm and + or -(0.3% at more than 100mm
- 4 measurements per second for a single point measurement
- Can store up to 5 files, up to 100 values for each file, for a total of 500 logs
- Powered by 2 AA batteries
- Includes a transducer, a couplant, batteries and a carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.2
Digital or Analog
Digital
Environmental Monitoring Type
Accessory
Height in Inches
5
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
R7900
True Color
Blue
Width in Inches
3
