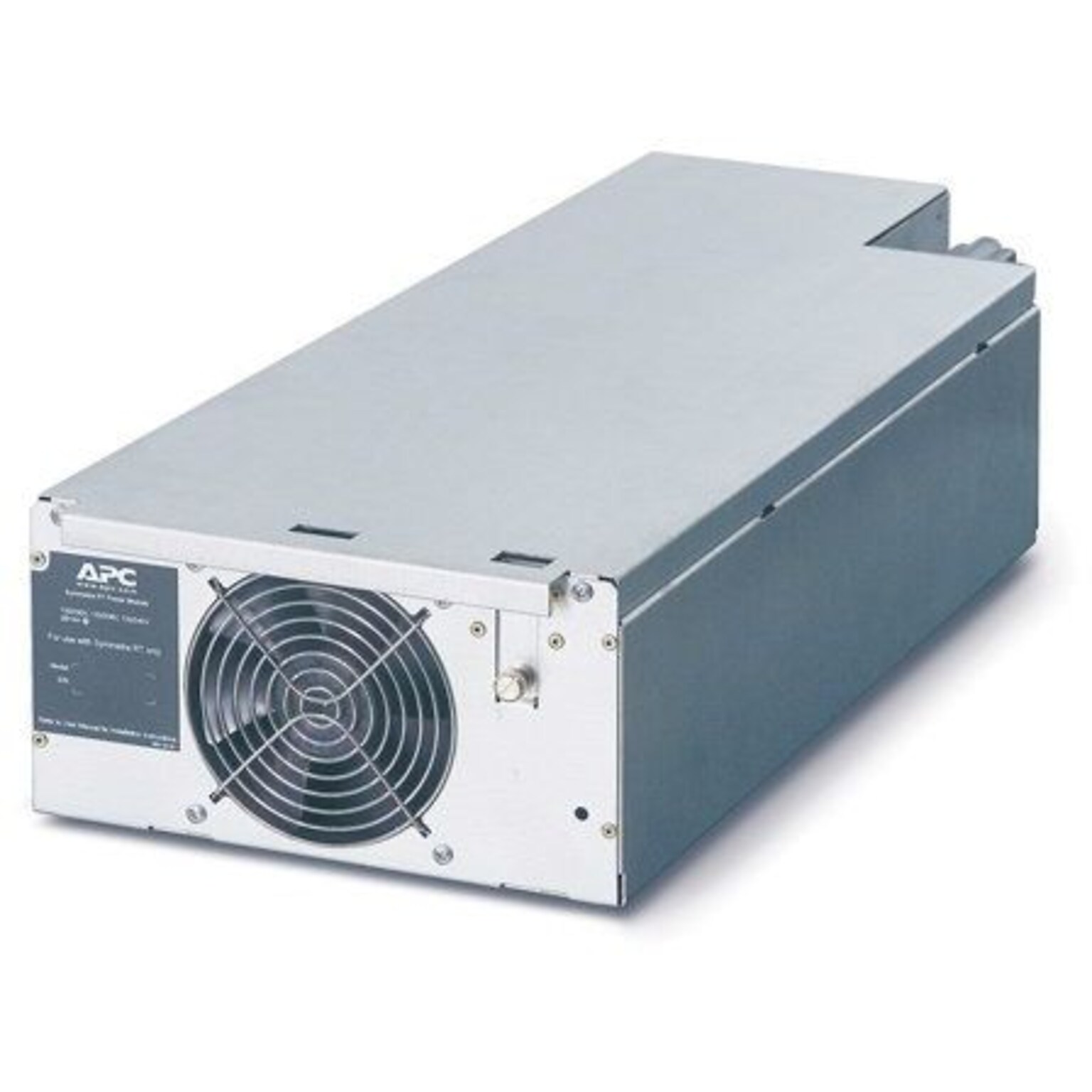

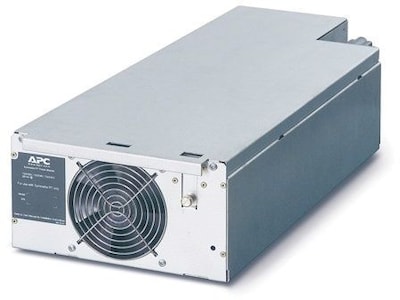

APC® Symmetra LX 4kVA Power Module
Item #:
901-M1D77671ING
Model #:
D77671
Brand:
APC
(2 reviews)
Item #:
901-M1D77671ING
Loading...
$2,837.99
Per each
Description
4 kVA power module provides the foundation of building and scaling near-continuous availability power systems With a flexible range of power capacity.
- Size: 150 mm(H) x 250 mm(W) x 565 mm(D)
- Silver
- For use with: APC Symmetra LX 4kVA UPS
- Connections: 1 x Hard Wire 4-wire (2PH + N +G)
- Power capacity: 3200 W /4000 VA
- Input voltage: 200 V, 208 V nominal 45 - 65 Hz (auto sensing), 155 - 276 V main operations
- Output voltage: 100 V, 120 V, 200 V, 208V 47 - 63 Hz, o/p distortion: less than 5% at full load
- Operating conditions: 0 - 40 deg C temp, 0 - 95% relative humidity, 0-3000 m elevation, storage conditions: -15 - 45 deg C temp, 0 - 95% relative humidity, 0-4500 m elevation
- Waveform type: sine wave, crest factor: up to 5: 1
- Audible noise at 1 meter from surface of unit: 62 dba
Specifications
Brand
APC
Output Voltage
100 V, 120 V, 200 V, 208V 47 - 63 Hz, o/p distortion: less than 5% at full load
Power Distribution Unit Type
Power Distribution Module
True Color
Silver
Warranty Information
2 Year
