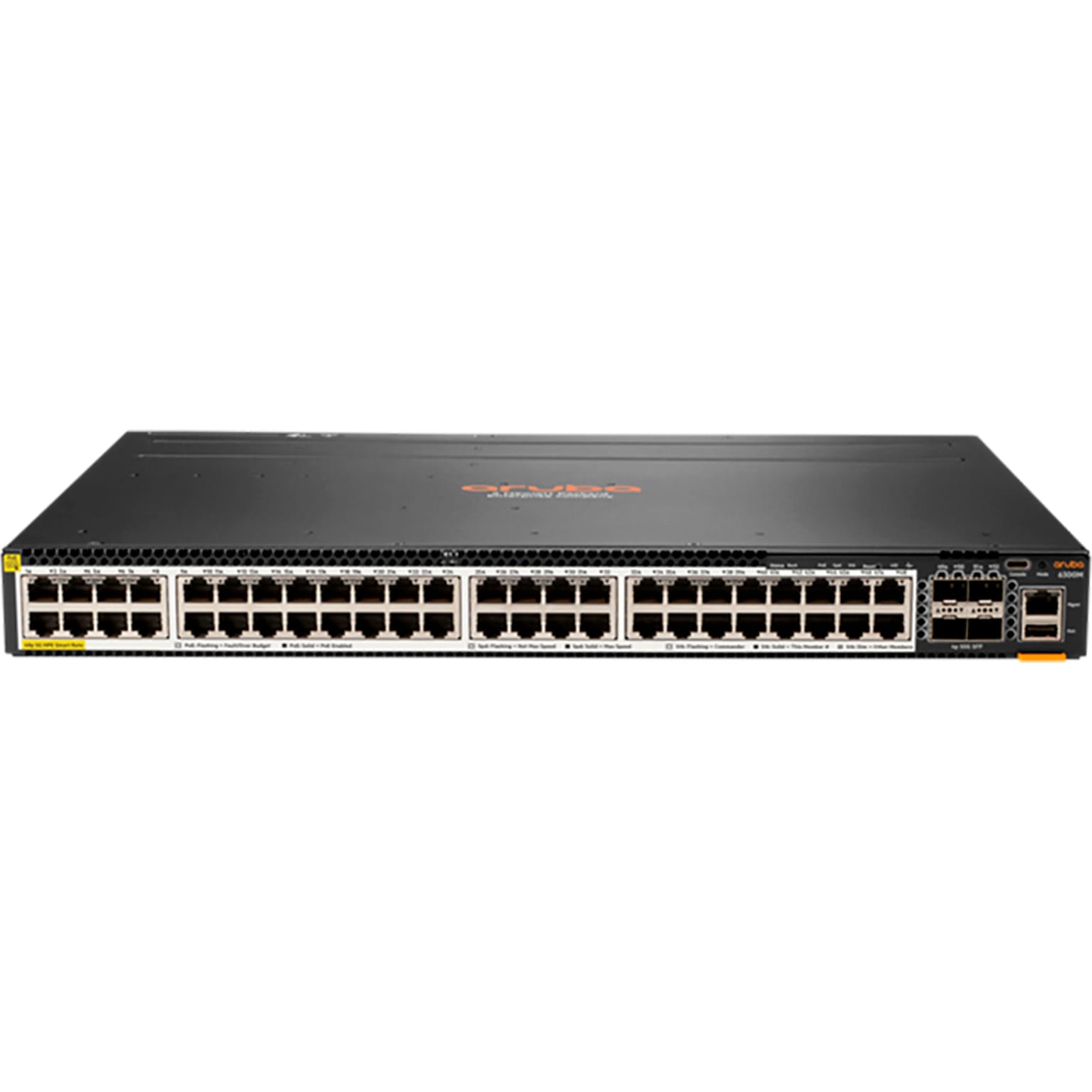

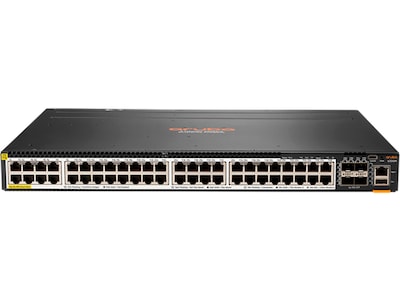

Aruba 6300M JL660A 48-Port Gigabit Ethernet Rack Mountable Switch
Item #:
901-IM16YE709
Model #:
JL659A
Brand:
Aruba
Not yet rated. Be the first to
Write a review!
Out of stock
$18,979.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
The Aruba 6300M switch series is a modern, flexible, and intelligent family of AOS-CX stackable switches perfect for access, aggregation and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba network analytics engine, the Aruba 6300M extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX mobile app verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management.
- Stackable switch is perfect for enterprise network access, aggregation, core and data center top-of-rack deployments
- Features 48 x 1/2.5/5GbEBASE-T PoE and 4 x 1/10/25/50G SPF ports
- Management security restricts access to critical configuration commands, provides multiple privilege levels with password protection, and local/remote syslog capabilities allow logging of all access
- Throughput: 654Mpps
- Dimensions: 1.73"H x 17.4"W x 15.2"D
- Power consumption: 193-201W with JL086A, JL087A, JL670A PSU; switching capacity: 880Gbps
- Certifications and standards: Meets or exceeds UL, FCC standards
- Allows for stacking of up to 10 switches, providing scale and simplified management
- Stackable layer 3 switch with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
- Provides NetEdit support for automation, configuration, verification, and one-touch deployment with the mobile app
- Offers redundancy and PoE customization with hot-swappable power supplies and fans
- Memory and processor: 1.8GHz quad-core ARM Cortex-A72; 8GB DDR4 and 32GB eMMC with 8MB shared packet buffer memory
- Class 6 PoE ports supporting up to 60W per port
- Switch has two fan tray slots and comes with one fan tray installed
- Lifetime manufacturer limited warranty
Specifications
Brand
Aruba
Buffer Memory
8MB
Depth in Inches
15.2
Ethernet Number of Ports
31 to 50
Gaming
Non Gaming
Height in Inches
1.73
Jumbo Frame
Yes
LACP
Yes
Layer
3
Network Management Type
Managed Switch
Number of Ethernet Ports
48
Performance Class
Gigabit Ethernet
Port Mirroring
Yes
Power Over Ethernet
Yes
Power Supply
Internal
Protocols
IEEE 802.3af, 802.3at, 802.3bt, 802.3bz
Quality of Service
Yes
Series or Collection
6300M
SNMP
v1, v2c, v3
Stackable
Stackable
Switch Form Factor
Rack Mountable
True Color
Black
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
13.27
Width in Inches
17.4
