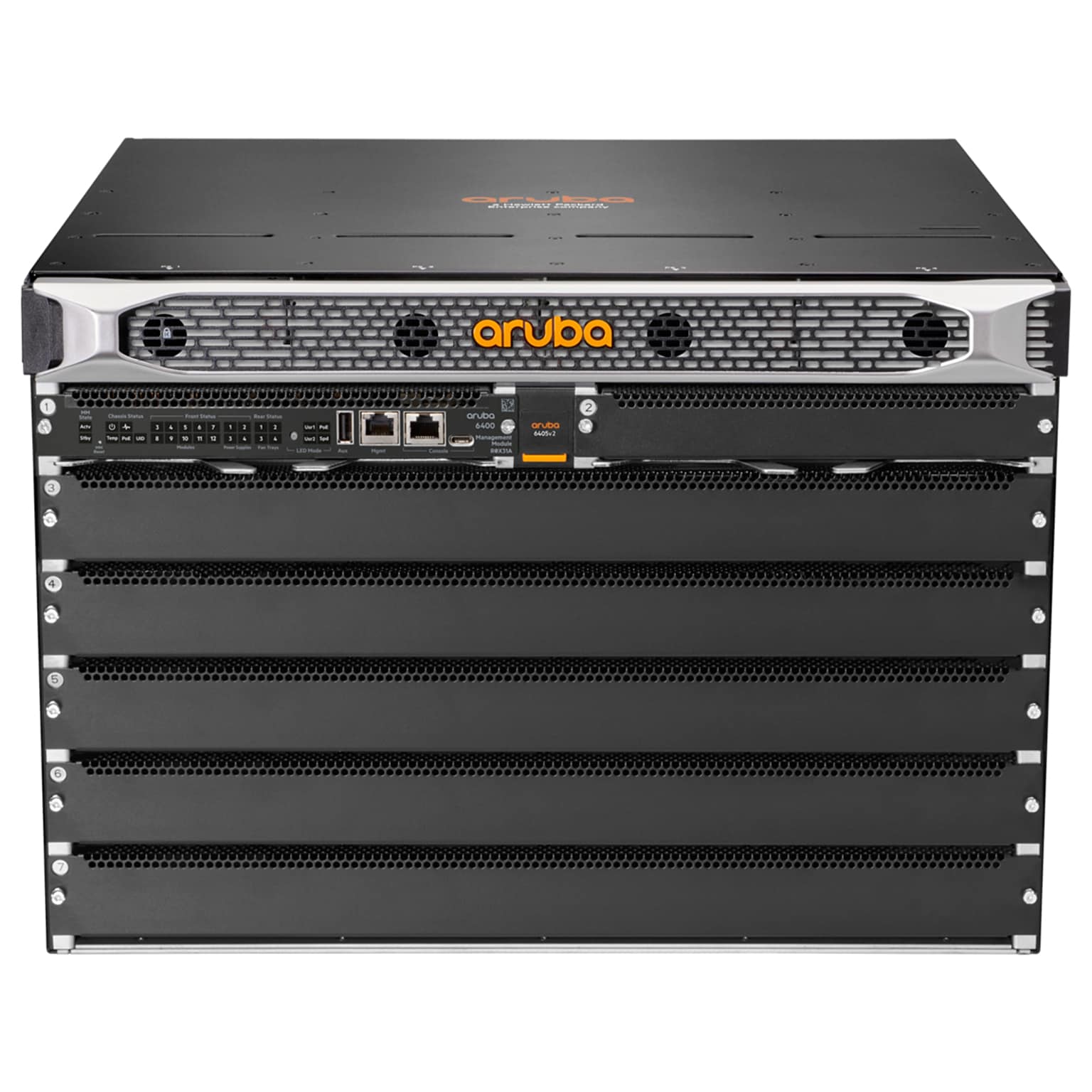

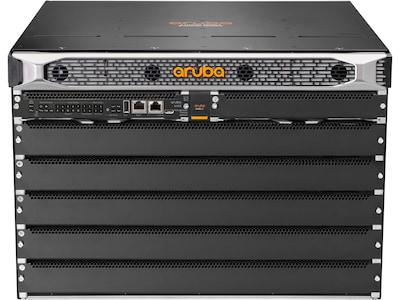

Aruba 6405 v2 Managed Switch, Black (R0X26C)
Item #:
901-IM106PM86
Model #:
R0X26C
Brand:
Aruba
Not yet rated. Be the first to
Write a review!
New
$17,319.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.
Aruba 6405 v2 Managed Switch, Black (R0X26C)
Description
The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of modular switches perfect for access, aggregation and core in enterprise campus and data center deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the 6400 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.
- High-performance modular Layer 3 managed switch with 5 available I/O slots
- Supports PoE standards IEEE 802.3af/802.3at/802.3bt (up to 60W)
- Switching capacity: up to 14Tbps
- Comes in a 7U rack-mountable form factor
- SNMP v2c/v3 provides SNMP read and trap support of industry-standard Management Information Base (MIB) and private extensions sFlow (RFC 3176)
- Quality of service features include: strict priority (SP) queuing and deficit weighted round-robin (DWRR); traffic prioritization (IEEE 802.1p) for real-time classification; class of service (CoS) sets the IEEE 802.1p priority tag based on IP address; IP type of service (ToS); Layer 3 protocol; TCP/UDP port number, source port, and DiffServ; egress queue shaping (EQS); and more
- Management features: Aruba AirWave, Aruba Central, Network Management, Aruba NetEdit, Aruba CX Mobile App, command-line interface, SNMP v2c/v3, RMON
- Throughput capacity: up to 5.7Bpps
- Ports and slots: 1 x RJ45 console port, 1 x USB Type-C console port, 1 x OOBM, 1 x USB Type-A host port, 1 x Bluetooth dongle to be used with the CX mobile app
- Includes 1x R0X31A Aruba 6400 management module with one open slot
- Includes 2 x R0X32A Aruba 6400 fan trays with no open slots
- Supports any of the following line cards in the open slots: R0X38B/R0X39B/R0X40B/R0X41A/R0X42A/R0X43A/R0X44A/R0X45A/R0X44C/R0X45C
- Lifetime manufacturer limited warranty
Specifications
Address Database Size
32000
Brand
Aruba
Depth in Inches
17.7
Gaming
Non Gaming
Height in Inches
12.1
Input Voltage
110-127 / 200-240 VAC
Jumbo Frame
9KB
LACP
Yes
Layer
3
Module Support
Yes
Network Management Type
Managed Switch
Port Mirroring
Yes
Power Over Ethernet
Yes
Power Supply
Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters
Quality of Service
Yes
Series or Collection
6405 v2
SNMP
v1, v2c, v3
Stackable
Non-Stackable
Switch Form Factor
Rack Mountable
True Color
Black
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Width in Inches
17.5
