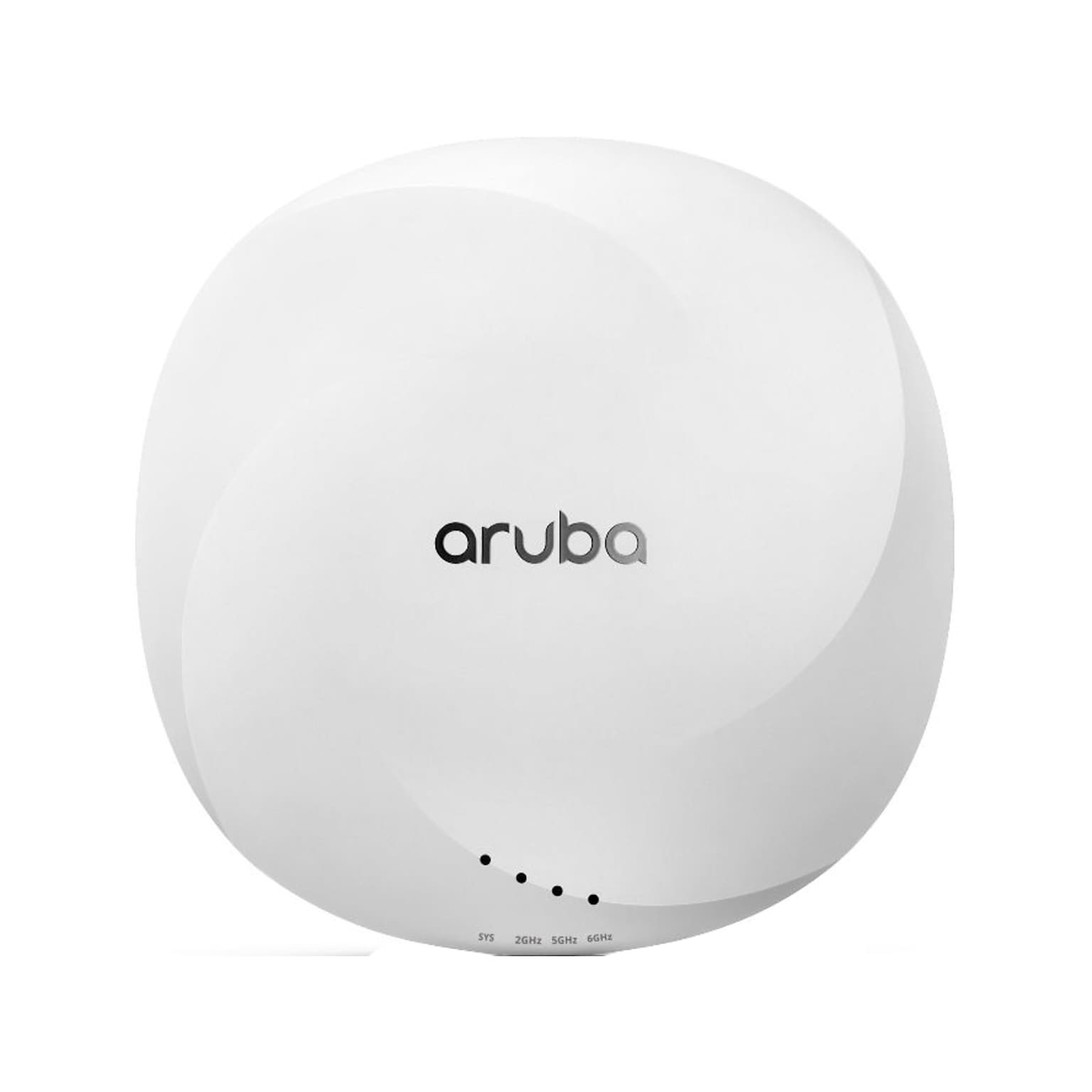

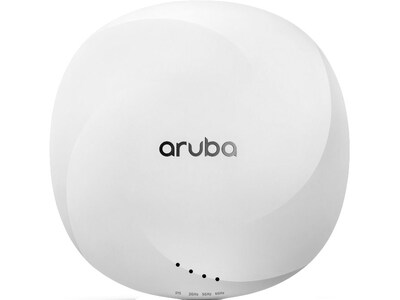

Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A)
Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A)
$1,447.00
Per each

  1. Home
  2. Networking & WiFi
  3. Computer Networking Equipment
  4. Networking & WiFi
  5. Wireless Access Points & Accessories

Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A)

Order Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A) today at Quill.com and get fast shipping. Stack coupons to get free gifts & extra discounts!
Item #: 901-IM106PL24
Model #: R7J55A
Brand: Aruba
Not yet rated. Be the first to Write a review!
Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A)
Loading...
New
$1,447.00
Per each

Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.


Aruba AP-615 AX3600 Tri Band WiFi 6E Access Point, White (R7J55A)
Limited quantity available: 3 remaining


Ship to: 60069
Free delivery
Mon, May 5 - Tue, May 6

Request bulk pricing
For enterprises who need more wireless capacity and/or wider channels, Aruba 610 series Campus APs are designed to take advantage of the newly available 6GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6GHz band to the traditional 2.4GHz and 5GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud. Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4GHz, 5GHz, 6GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs. More capacity and wider channels The Aruba 610 series APs are designed to take advantage of Wi-Fi 6E and the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6Gbps when configured for concurrent 5GHz and 6GHz operation.
  • Wireless tri-band (2.4GHz, 5GHz, 6GHz) campus access point intended for enterprises who need more wireless capacity and/or wider channels
  • Two 2 x 2 MIMO radios of this access point deliver a combined peak data rate of up to 3.6Gbps when configured for concurrent 5GHz and 6GHz operation
  • Compact and low power consumption – virtually unrestricted operation from an 802.3af (class 3) PoE source
  • AP is based on the 802.11ax (Wi-Fi 6) standard, which means that all its efficiency and security enhancements are also available on the 6GHz band
  • Features 1 x Ethernet wired network ports (RJ45), 1 x DC power, 1 x USB 2.0 host and 1 x serial console (proprietary, Micro-USB Type-B physical jack)
  • Mounting bracket is preinstalled on the back of the AP to secure the AP to any of the mount kits (sold separately)
  • AP supports direct DC power and Power over Ethernet (PoE) on port E0
  • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band
  • Meets or exceeds FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 60950, IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, TAA standards
  • Up to seven 160MHz channels in 6GHz to support low-latency, bandwidth-hungry applications like high-definition video, and augmented reality/virtual reality applications
  • 2.5Gbps Smart Rate Ethernet port to minimize wired bottlenecks
  • Built-in GPS receivers and fine time measurement (802.11mc) to enable APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
  • AP is plenum-rated for use in air-handling spaces
  • Supported modulation types: 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension); 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension); 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
  • AP supports up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to four for the 6GHz radio)
  • Maximum power consumption (without/with a USB device attached): DC powered: 12.5W/18.2W; POE powered: 14.7W/20.9W; this assumes that up to 5W is supplied to the attached USB device
  • Minimum operating system software versions: ArubaOS and Aruba InstantOS 8.11.0.0
  • Dimensions: 6.3"H x 6.3"W x 1.54"D
  • Regulatory domain: United States of America
  • Lifetime manufacturer limited warranty
Antenna
Internal antenna, omni-directional antennas (2.8dBi gain at 2.4GHz, 4.5dBi gain at 5GHz, 4.5dBi gain at 6GHz)
Brand
Aruba
Compatible Operating System
ArubaOS and Aruba InstantOS 8.11.0.0
Connector, Port or Interface Type(s)
(1) Ethernet wired network ports (RJ-45), (1) DC power, USB 2.0 host, (1) serial console (proprietary, micro-B USB physical jack)
Data Transfer Rate
Up to 3.6Gbps
Data Transfer Rate (Gbps)
3.6
Data Transfer Rate (Mbps)
3600
Depth in Inches
1.54
Encryption Type
SAE, OWE
Frequencies
2.4GHz, 5Ghz and 6Ghz
Gaming
Non Gaming
Height in Inches
6.3
Included Components
Mounting Bracket
Max. Data Transfer Rate (Mbps)
More than 3000
Power Over Ethernet
Yes
Power Source
DC power (12V), PoE
Series or Collection
AP-615
True Color
White
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
1.15
Width in Inches
6.3
WiFi Standard
WiFi 6E
Wireless Bands
Tri Band
Wireless Connectivity
802.11ax
Wireless Standard
AX
