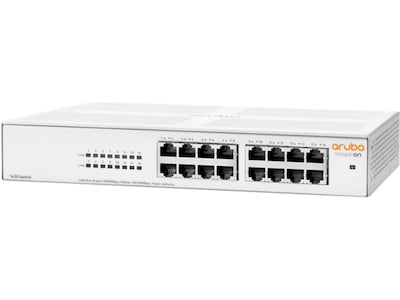

Aruba Instant On 1430 16-Port Gigabit Ethernet Unmanaged Switch, White (R8R47A#ABA)
$163.00
Per each
Aruba Instant On 1430 16-Port Gigabit Ethernet Unmanaged Switch, White (R8R47A#ABA)
Item #:
901-IM106NV32
Model #:
R8R47A#ABA
Brand:
Aruba
Not yet rated. Be the first to
Write a review!
New
$163.00
Per each
Upgrade to get 5% off, earn points 10% faster and more. Annual fee of $49.99.
Aruba Instant On 1430 16-Port Gigabit Ethernet Unmanaged Switch, White (R8R47A#ABA)
Limited quantity available: 8 remaining
Description
The Aruba Instant On 1430 switch series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. The Aruba Instant On 1430 switch series models are easy to use with zero configuration and no required ongoing administration. The unmanaged PoE models deliver fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points. The Aruba Instant On 1430 switch series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity. All models are fanless for silent operation in office settings or acoustically sensitive environments and require less power to operate.
- Unmanaged layer 2 Gigabit Ethernet switch features 16 RJ-45 autosensing 10/100/1000 ports
- Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification
- Supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity
- Throughput: 23.80Mpps maximum; switching capacity: 32Gbps
- Power consumption: 7.9W maximum, 2.3W idle
- Powered by a 128kB EEPROM processor and features a 2MB packet buffer size
- Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X
- Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers
- Fan-less design for silent deployment in office spaces
- Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node
- Lifetime manufacturer limited warranty
Specifications
Auto-Detecting
No
Auto-Sensing
Yes
Brand
Aruba
Buffer Memory
2MB
Data Transfer Rate (Gbps)
32
Depth in Inches
10.16
Ethernet Number of Ports
11 to 20
Full-Duplex
Yes
Gaming
Non Gaming
Height in Inches
1.73
Input Voltage
100-127VAC / 200- 240VAC
Jumbo Frame
9216 Bytes
LACP
No
Layer
2
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
No
Network Management Type
Unmanaged Switch
Number of Ethernet Ports
16
Performance Class
Gigabit Ethernet
Power Over Ethernet
No
Power Supply
Internal power supply
Quality of Service
Yes
Series or Collection
Instant On 1430
SNMP
No
Switch Form Factor
Desktop, Wall Mountable, Rack-Mountable
True Color
White
VLAN Support
No
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
3.8
Width in Inches
10.83
