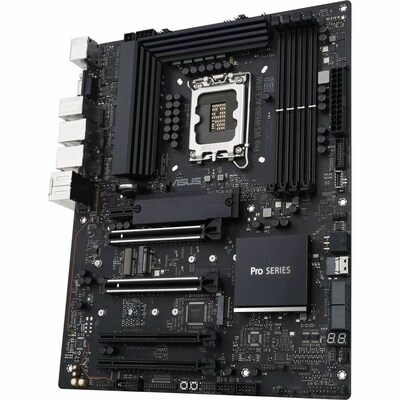

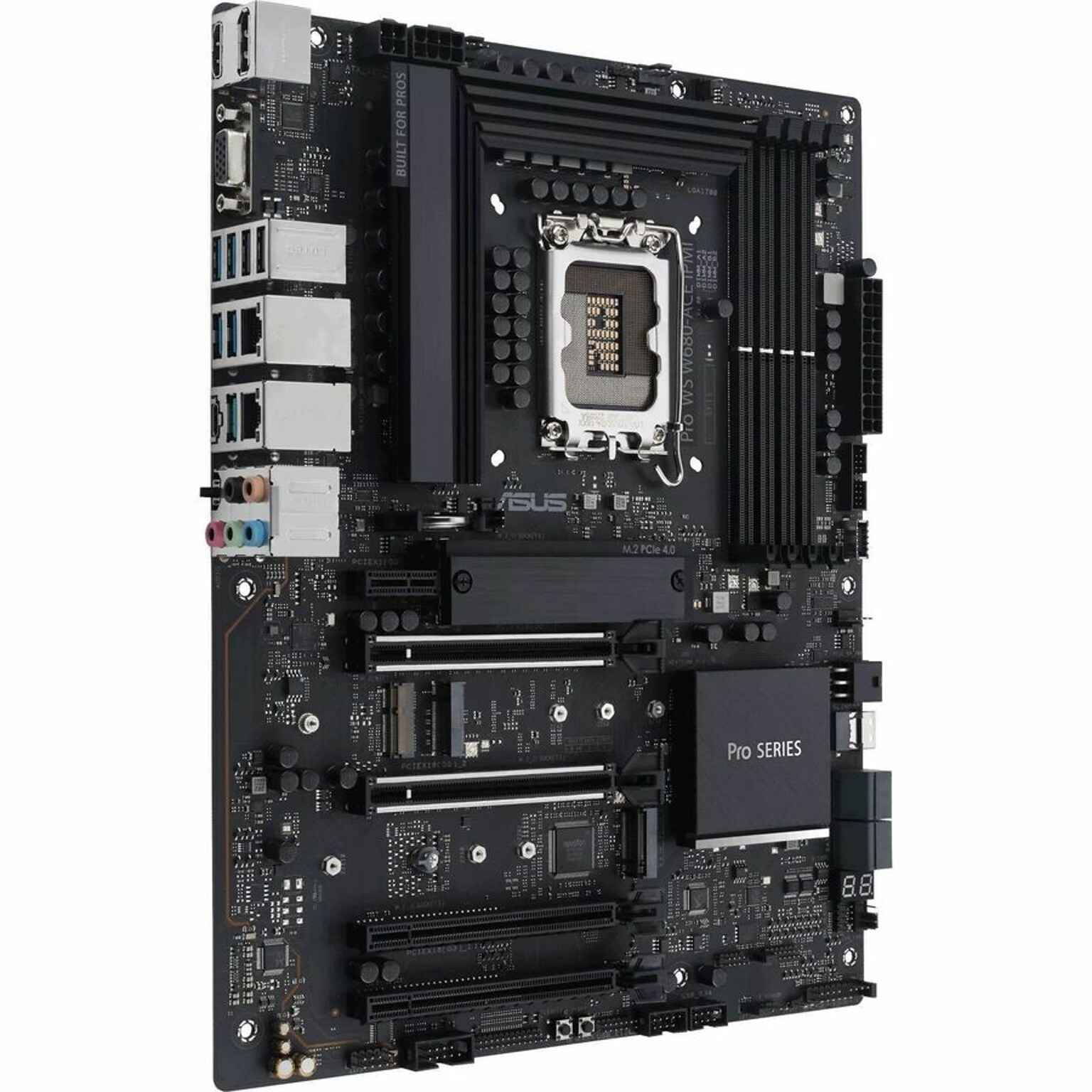

Asus Socket LGA 1700 ATX Intel Core 12th, 13th, Gen Processors Workstation Motherboard (PRO WS W680-ACE IPMI-SI)
Item #:
901-24634306
Model #:
PROWSW680ACEISI
Brand:
Asus
Not yet rated. Be the first to
Write a review!
Out of stock
$425.99
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
WORKSTATION MOTHERBOARD ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators. Ultra Powerful Back IO The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions. ECC Memory Support Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13thand 12thGen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability. BMC Remote Management ASUS IPMI expansion card is equipped with a dedicated Ethernet controller to BMC (Baseboard Management Controller) chip to provide the intelligence for its IPMI architecture. Administrators can remotely communicate with the BMC to take some corrective actions - such as resetting or power cycling a system. Dual 2.5G Ethernet Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.
- Designed to work with Intel processors and 12th, 13th, Gen Intel Core processors, using the LGA 1700 socket. Classified as a Workstation Motherboard, built for professional-grade applications. Ideal for tasks such as 3D rendering, AI development, media editing, and other resource-intensive workflows, making it a reliable choice for high-performance workstations.
- DDR5 RAM with speeds up to 4800 MT/s (expandable to 192GB).
- includes the following graphics output options: HDMI Port: Delivers high-definition visuals for external displays. DisplayPort: Ensures compatibility with modern high-resolution monitors.
- incorporates Realtek 7.1 Surround Sound High Definition Audio CODEC, delivering crystal-clear audio quality.
- uses the ATX form factor. This size offers a balance between expandability and compatibility, making it suitable for professional workstation builds with ample room for multiple components like GPUs, storage devices, and advanced cooling systems
- Certified by : Restriction of Hazardous Substances (RoHS)
- Comes with a standard 3-year limited warranty.
Specifications
Audio Technology
Realtek ALC897 audio codec, providing high-definition audio and 7.1-channel surround sound.
Bios Support
Features a UEFI BIOS with an intuitive interface
Brand
Asus
Chipset
Intel W680 chipset
Connector, Port or Interface Type(s)
Total Number of USB Ports: 8
CPU
Intel Core 12th, 13th, Gen Processors
Depth in Inches
9.6
Expansion Slots
5
Graphics Output
1 x HDMI port for external displays. 1 x DisplayPort and VGA port for compatibility with various setups
Integrated LAN
Two 2.5 Gb Ethernet ports
Memory Channel Count
2
Memory Speed
4800 mhz
Memory Technology
DDR5
Motherboard & Accessory Type
Server Motherboards
Motherboard Form Factor
ATX
Network Communications
Dual 2.5 Gb Ethernet ports for high-speed and stable networking.
Number Of DIMMs
4
Number of PCI Ports
5
OS Compatibility
Windows 10, Windows 11, and major Linux distributions.
Series or Collection
PRO
Socket
LGA 1700
Total Memory Capacity
192GB
Type of Processor
Intel
Warranty Information
3 Year
Width in Inches
12
