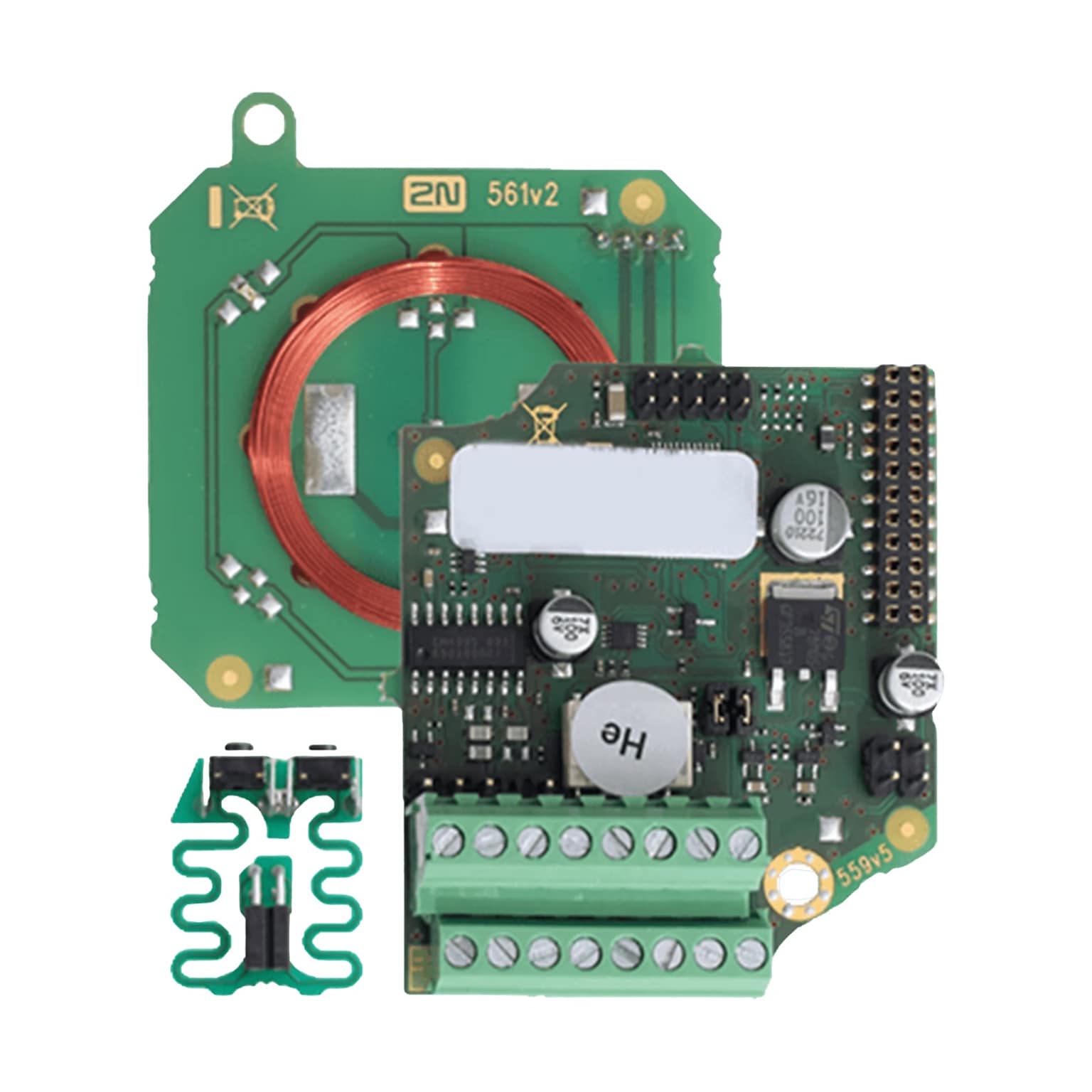

Axis 2N IP Force 2.0 Wired Smart RFID & Wiegand Access Module, Green (03355-001)
Item #:
901-IM1Z32396
Model #:
03355-001
Brand:
Axis Communications
Not yet rated. Be the first to
Write a review!
Out of stock
$335.99
Per each
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
The 2N IP Force 2.0 RFID & Wiegand Access Module (03355-001) is a high-performance internal card reader designed for secure access control in 2N IP Force 2.0 intercoms. Supporting both 125 kHz and 13.56 MHz RFID cards, it enables compatibility with a wide range of credentials including MIFAR®, HID iClass, FeliCa, and NFC smartphones via the My2N App. The module includes two relays, two logical inputs, a tamper switch, and a programmable Wiegand interface for flexible integration. Ideal for use with two-button and pictogram models, it also features a security switch to detect panel access and operates reliably in extreme temperatures. Backed by a 5-year warranty.
- Access controller module compatible with 2N IP Force 2.0 intercoms, including models 03364-001 and 03367-001.
- Enables secure access via RFID cards and NFC smartphones; supports Wiegand integration and tamper detection.
- Compact internal module
- Green; constructed from durable plastic and metal components.
- Wiegand interface, 2 logical inputs, 2 relays, active switch output, internal LED signaling.
- Supports 125 kHz and 13.56 MHz RFID cards, MIFARE®, HID iClass®, FeliCa, NFC/HCE; includes tamper switch and programmable I/O.
- 12 V DC ±15%, 350 mA for external RFID card reader.
- Suitable for both indoor and outdoor environments.
- 5-year manufacturer warranty.
Specifications
Brand
Axis Communications
Compatibility
2N IP Force 2.0 models: 03364-001, 03367-001
Connector, Port or Interface Type(s)
Wiegand, 12V DC input, logical inputs, active output
Indoor or Outdoor Use
Indoor and Outdoor
Material of Item
Plastic
Pack Qty
1
Power Source
12 V DC ± 15% / 350 mA
Security System Accessory Type
Access Controller
Series or Collection
IP Force 2.0
True Color
Green
