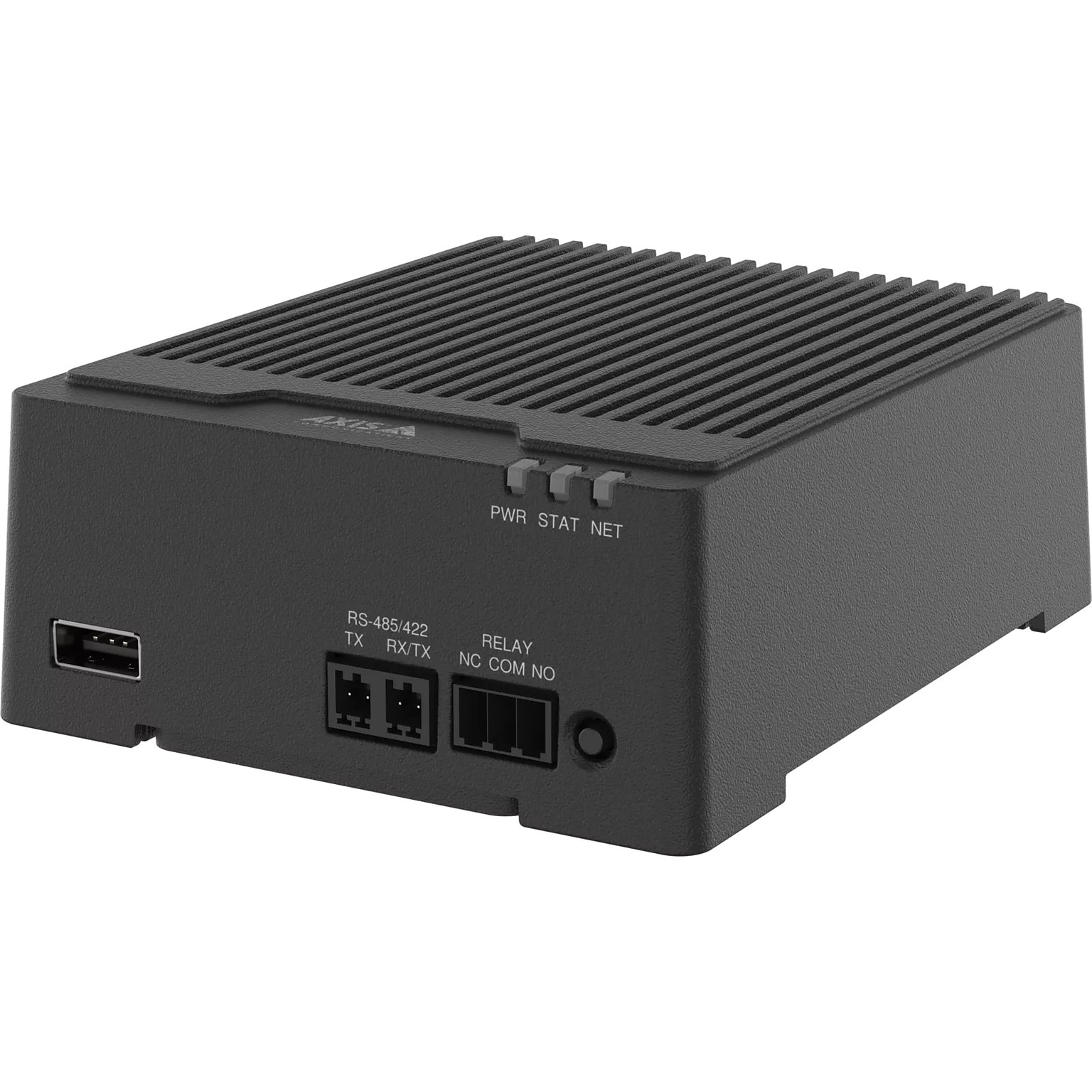

Axis Communications D3110 Mk II Wired Connectivity Hub, Black (03037-001)
$451.99
Per each
Axis Communications D3110 Mk II Wired Connectivity Hub, Black (03037-001)
Item #:
901-IM1SS1738
Model #:
03037-001
Brand:
Axis Communications
Not yet rated. Be the first to
Write a review!
$451.99
Per each
Axis Communications D3110 Mk II Wired Connectivity Hub, Black (03037-001)
Limited quantity available: 7 remaining
Description
The AXIS D3110 Mk II Connectivity Hub is a powerful integration device that adds secure sensor and audio capabilities to Axis network video systems. Designed for environments where visual monitoring alone isn’t enough, it supports a wide range of non-visual sensors and audio devices to enhance scene awareness. With eight supervised I/Os, RS485/RS422, and multiple audio ports, it enables flexible event triggering and two-way communication. Built-in Axis Audio Analytics detects sounds like glass breaks or screams, while Axis Edge Vault ensures hardware-level cybersecurity. Supporting VAPIX®, MQTT, SIP, and ACAP, it integrates seamlessly into Axis end-to-end solutions. Housed in a plenum-rated aluminum casing and backed by a 5-year warranty, the D3110 Mk II is ideal for mission-critical installations requiring secure, intelligent audio and sensor integration.
- Designed as a connectivity hub for Axis network video systems
- Enables sensor and audio integration for enhanced scene awareness
- Weighs 0.98 lb., Measures 1.66" H × 3.89" W × 4.64" D for compact installations
- Finished in black with IP30-rated aluminum casing for durability

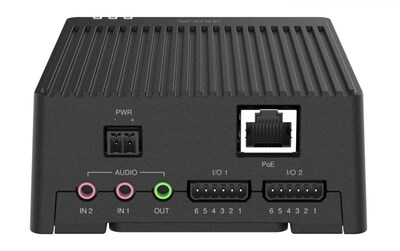

- Connects via RS485/RS422, RJ45, USB, and 3.5 mm audio ports
- Enhances audio with equalizer, voice boost, and Axis Audio Analytics
- Operates using PoE or 10–28 V DC power input options
- Built for secure indoor use with plenum-rated housing
- Supports AAC, G.711, G.726, Opus, and Axis µ-law audio formats
- Detects scream, shout, and glass break through adaptive analytics
- 5-year manufacturer warranty
Specifications
Brand
Axis Communications
Compatibility
Axis network video systems
Connector, Port or Interface Type(s)
RS485/RS422, RJ45, USB 2.0, 3.5 mm audio in/out, terminal blocks
Depth in Inches
4.64
Height in Inches
1.66
Indoor or Outdoor Use
Indoor
Material of Item
Aluminum
Pack Qty
1
Power Source
PoE IEEE 802.3af/802.3at or 10–28 V DC
Security System Accessory Type
Connectivity Hub
Series or Collection
D3110 Mk II
True Color
Black
Weight (lbs.)
0.98
Width in Inches
3.89
Wired or Wireless
Wired
