Axis Force 2.0 Outdoor RFID Reader, Green (03356-001)
Item #:
901-IM1Z32421
Model #:
03356-001
Brand:
Axis Communications
Not yet rated. Be the first to
Write a review!
New
$389.00
Per each
Axis Force 2.0 Outdoor RFID Reader, Green (03356-001)
Description

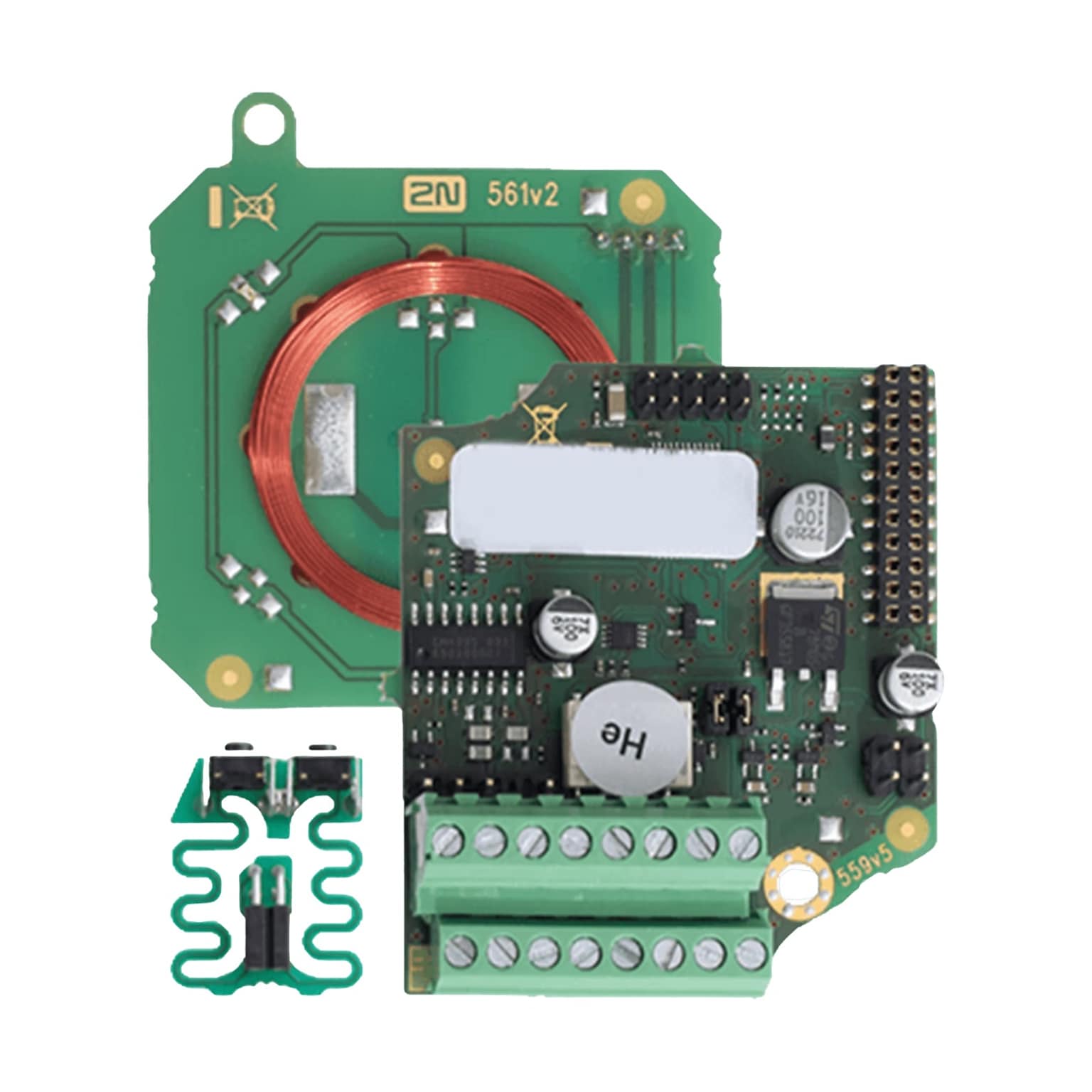

The Axis 2N IP Force 2.0 RFID Reader with Wiegand interface (03356-001) is a secure access control module designed for integration into 2N IP Force 2.0 intercoms. It supports both 125 kHz and 13.56 MHz RFID cards, including HID® encrypted credentials and Seos smart cards, offering flexible authentication options. The built-in Wiegand interface allows programmable input/output configurations, while two relays and two logical inputs expand control capabilities. A tamper switch alerts when the front panel is accessed, enhancing security. Compatible with select two-button and pictogram models, this module is ideal for outdoor installations and operates reliably across a wide temperature range. Backed by a 5-year warranty, it’s a robust solution for enterprise-grade access control.
- Designed as an RFID access controller for Axis Force 2.0 intercom systems.
- Enables card-based entry using 125 kHz and 13.56 MHz RFID credentials.
- Measures approximately 214 mm × 25 mm × 123 mm for compact installation.
- Finished in green and built from durable materials for outdoor use.
- Connects via Wiegand interface with programmable input/output modes.
- Supports HID® Seos, MIFARE, FeliCa, and NFC smartphone credentials.
- Operates on 12V DC ±15% with 350 mA power draw for external reader.
- Rated for outdoor environments with wide temperature and humidity tolerance.
- 5-year manufacturer warranty.
Specifications
Brand
Axis Communications
Compatibility
Axis 9151301CRP, 9151302CR, Force 2.0
Connector, Port or Interface Type(s)
Wiegand, RFID, Tamper Switch, Relay, Input Terminals
Indoor or Outdoor Use
Outdoor
Pack Qty
1
Power Source
12V DC ±15% / 350 mA
Security System Accessory Type
Access Controller
True Color
Green
