Brainboxes 1-Port RS-232 PoE Ethernet To Serial Device Server (ES-446)

See pricing info, deals and product reviews for Brainboxes 1-Port RS-232 PoE Ethernet To Serial Device Server (ES-446) at Quill.com. Order online today and get fast, free shipping for your business.
Item #: 901-IM1ZY1011IN
  Model #: ES-446
Brand: Brainboxes
Not yet rated.Be the first to Write a Review

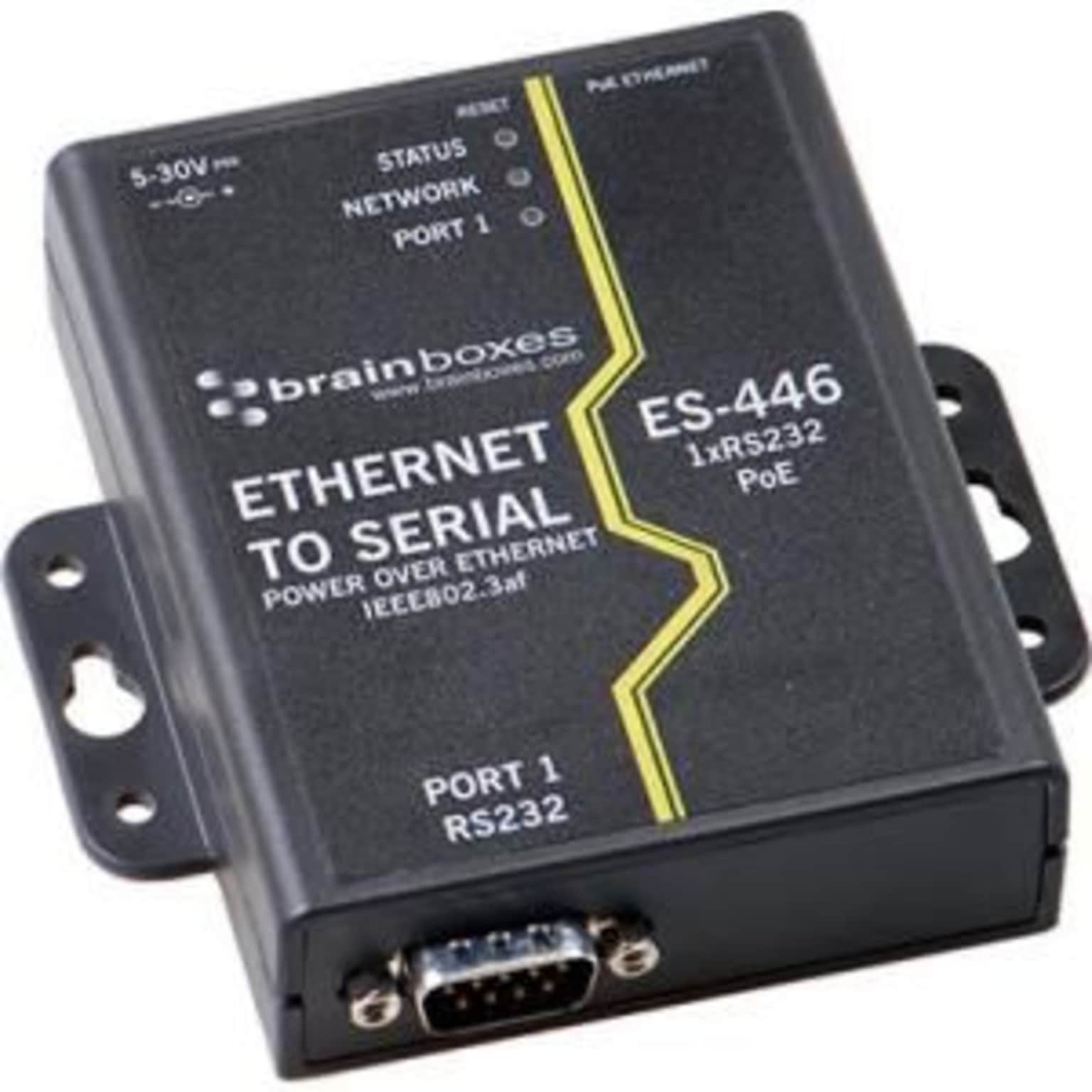

Brainboxes 1-Port RS-232 PoE Ethernet To Serial Device Server (ES-446)
Delivery Date:
Go
Enter Zip Code
Parcel
Product Highlights
  • Brand: Brainboxes
View Full Product Information
Description
The Brainboxes ES-446 1-port RS232 PoE Ethernet to serial device server with fast Ethernet technology is rail-mountable and features user-friendly interface that is simple to use and delivers powerful operation. It comes with serial port tunneling thatallows serial cable replacement over any distance and supports data rate from 110 to 1000000 baud. It features point-to-point Tx/Rx modes and has DB9 9 pin male connector. This device server features EIA - RS232 standard operating distance and is compatible with Microsoft Windows 10/8/7/Server 2008/Vista/XP/2000 operating system.
  • Drive server provides access to one RS232 serial port
  • Dimensions: 1.1"H x 4"W x 3.9"D, 96.3 mm x 101 mm x 25 mm (with ears), 91.6 mm x 77 mm x25 mm (without ears)
  • Connectivity: 10/100Base-TX Fast Ethernet
  • Requires Microsoft Windows 10, 8 - 32 bit & 64 bit Editions, Windows Server 2012, 7 - 32 bit & 64 bit Editions and Windows Server 2008 32/64 bit
  • Power supply: PW-800 optional global power supply, power consumption: 1.5 W typical, Power input: Power over Ethernet OR 5 - 30V DC input
  • Meets CE, IP-30, TAA, Green compliance, RoHS and WEEE certifications & standards
  • Interface: One RS232 serial port, one Network (RJ-45) and PoE (RJ-45) port
  • Connector: DB9 connector - 9 pin male, Tx FIFO size: 256, Rx FIFO size: 32, Integrated connector
  • Operating distance: EIA - RS232 standard, Max baud rate: 1 MegaBaud, Data bits: 5 ,6 ,7 , 8, Parity: Odd, even, none, mark or space, Stop bits: 1 or 2
  • Power over Ethernet: IEEE 802.3af, PCB layers: 4, Mounting accessory: DIN-rail mounting kit - MK-048, Network protocols: ICMP, IP, TCP and UDP
  • Media type supported: Twisted pair, User friendly interface, simple to use, powerful in operation
  • Temperature: 0 - 60 deg C (operating), Humidity: 5 to 95 percent (non-condensing)
  • Contains server, quick start guide, installation CD including manual, Microsoft signed drivers & utilities
  • Weight: 4.27 oz.
  • Comes with lifetime warranty
Specifications
Brand : Brainboxes
Weight : 1.00 lbs. per Each
