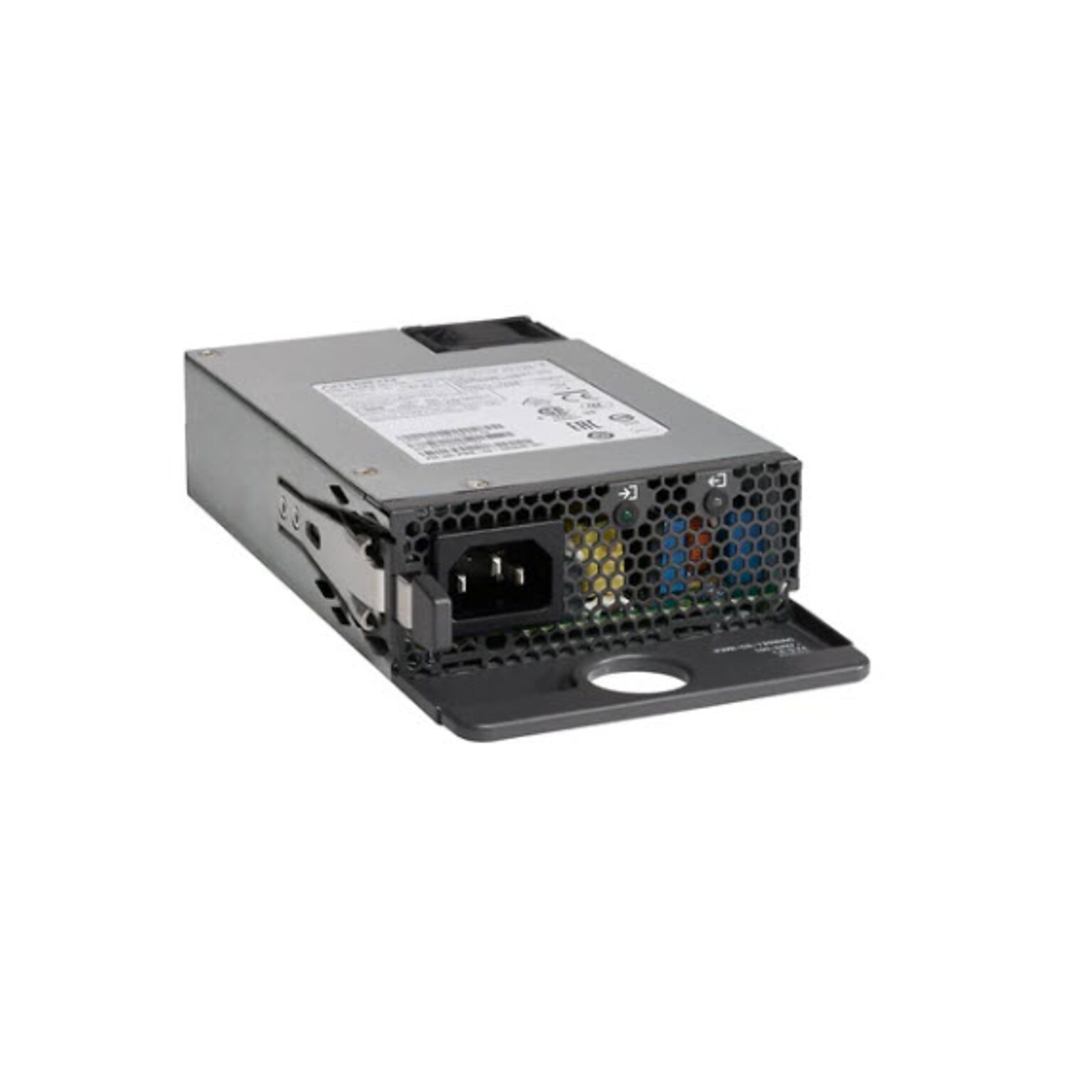

Cisco Catalyst 125W Internal Power Supply (PWR-C6-125WAC=)
Item #:
901-IM16YV677
Model #:
PWR-C6-125WAC=
Brand:
Cisco
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Internal 125W power supply for Cisco Catalyst 9200 series switches
- Input voltage: 100-240VAC, 50-60Hz, 1.6-0.7A
- Meets or exceeds the FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CISPR 35, EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE standards
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code.
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Try FREE for 60 days
Description
Cisco Config 6 Power supply - hot-plug / redundant (plug-in module) - AC - 125 Watt - for Catalyst 9200 (125 Watt).
- Internal 125W power supply for Cisco Catalyst 9200 series switches
- Input voltage: 100-240VAC, 50-60Hz, 1.6-0.7A
- Meets or exceeds the FCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CISPR 35, EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE standards
- Output voltage: 12VDC, 10.5A
- Output holdup time: 20ms minimum at 100VAC
- Input connectors: IEC 320-C14 (IEC60320-C14)
- Total output: 426.5 Btu/h
- Compatible with Cisco Catalyst C9200-24T, C9200-48T switches
- Product dimensions: 1.58"H x 4"W x 7.6"D
- Product weight: 1.5 lbs.
Specifications
Brand
Cisco
Compatible With
Cisco Catalyst C9200-24T, C9200-48T
Depth in Inches
7.6
Frequency (Hz)
50 - 60 Hz
Height in Inches
1.58
Input Voltage
100-240Vac
Motherboard Compatibility
IEC 320-C14 (IEC60320-C14)
Number of Rails
1
Output Power (Watts)
Less than 200
Output Voltage
12V, 10.5A
Power Supply Form Factor
Internal
Series or Collection
Catalyst
Watts
125
Weight (lbs.)
1.5
Width in Inches
4
