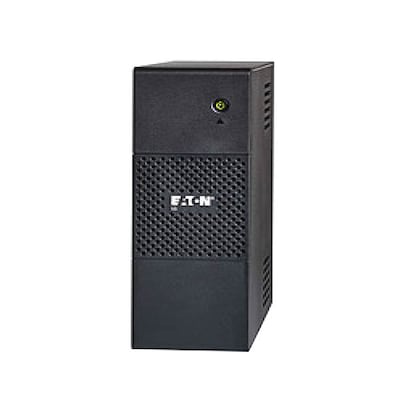

Eaton 5S 700VA UPS, 8-Outlets, Black (5S700)
Item #:
901-IM1RT3223
Model #:
5S700
Brand:
Eaton
Not yet rated. Be the first to
Write a review!
Out of stock
$164.49
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
Battery Backup Connectivity
Battery Backup LCD Display
Battery Backup or UPS Device Type
Battery Backup or UPS Form Factor
Battery Backup Run Time
Brand
Input Voltage
Outlet Count
Output Voltage
Power Capacity (VA)
True Color
Types of Battery
USB Connectivity
VA Rating
Warranty Information
Battery Capacity (mAh)
Battery Life (Years)
Charge Time (hours)
Compliance Standards
Connector, Port or Interface Type(s)
Cord Length (ft.)
Depth in Inches
Height in Inches
Joule Rating
Mountable
On-Line Phase
Operating Temperature (Degrees)
Output Power Capacity (W)
Plug or Connector
Series or Collection
Weight (lbs.)
Width in Inches
USB
Yes
Line-Interactive UPS
Tower
11-20 min
Eaton
120 VAC
8
120 VAC
700
Black
Lead Acid Battery
USB Connection
501-750
3 Year
N/A
N/A
N/A
FCC Part 15, FCC Class B certified, UL 1778
N/A
6
10.2
9.8
N/A
N/A
N/A
32 - 95 deg F
420
N/A
5S
14.3
3.4
USB
No
UPS
External
less than 10 minutes
Cyberpower
120 VAC
8
120 VAC
700
Black
Lead Acid Battery
USB Connection
N/A
3 Year
5500
N/A
8
FCC DOC Class B, cUL, UL 1778, CEC
N/A
N/A
2.76
5.4
890
Mountable
N/A
32 - 104 deg F
370
NEMA 5-15P, NEMA 5-15R
N/A
6.77
12.76
N/A
N/A
UPS
Desktop
11-20 min
Staples TECH
N/A
8
N/A
650
Black
Lead Acid Battery
USB Connection
501-750
3 Year
N/A
3/5/2025 12:00:00 AM
8
N/A
N/A
5
N/A
N/A
890
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Line-Interactive UPS
Tower
11-20 min
Cyberpower
120 VAC
12
120 VAC
1500
Black
Lead Acid Battery
USB Connection
1501-1750
3 Year
N/A
N/A
N/A
RoHS Compliant, UL1778, cUL 107 5th, FCC DOC Class B
NEMA 5-15P, 2 (1 USB-A 2.4A, 1 USB-C 15W), 12 (6 surge, 6 surge + battery backup)
N/A
13.78
10.2
1500
N/A
N/A
32 - 104 deg F
900
NEMA 5-15P
Intelligent LCD
23.8
3.94
USB
Yes
Line-Interactive UPS
Tower
less than 10 minutes
Eaton
230V AC.
8
230V nominal output.
1500
Black
Lead Acid Battery
USB Connection
1251-1500
2 Year
N/A
2/5/2025 12:00:00 AM
8
N/A
USB , C14 Inlet for the input power.
Not specified, but includes two 1.5-meter C13-to-C14 power cables.
12.6
7.2
312 Joules
N/A
Single Phase
32 - 104 deg F
900
IEC-60320 C14
Tripp Lite OMNIVSX series
22
5.1
USB
No
UPS
Desktop
less than 10 minutes
Cyberpower
120 VAC
8
120 VAC
550
Black
Lead Acid Battery
USB Connection
501-750
3 Year
N/A
N/A
N/A
RoHS, DOC-B, cUL, FCC, UL 1778
1 x Management (USB), 1 x power NEMA 5-15, 4 x power NEMA 5-15, 4 x power NEMA 5-15
4.9
5.9
3.1
526
N/A
N/A
32 - 104 deg F
330
NEMA 5-15P, NEMA 5-15R
Ecologic Series
6
10.6
Description
The Eaton® 5S 5S700 700 VA 115 VAC Line-Interactive UPS offers full load backup/run time of 2 mins and half load backup/run time of 12 mins. It measures 9.8" x 3.4" x 10.2". The sealed lead acid UPS has one NEMA 5-15P plug, eight NEMA 5-15R plugs and USB port for connectivity. It offers surge protection. This maintenance-free UPS withstands an operating temperature of 0 to 35 deg C. It has input voltage rating of 93-138 VAC. It comes with cable and user manual.
- Line-interactive UPS for professional desktop PC's, professional workstations and small routers
- Load capacity: 700 VA, 420 W
- Dimensions: 9.8"H x 3.4"W x 10.2"D
- Backup/run time (full load): 2 min, Backup/run time (half load): 12 min
- Output voltage: 115 VAC
- Form factor: Tower
- Battery chemistry: Sealed Lead Acid
- Interface: USB, Receptacles: Eight NEMA 5-15R, Dataline protection: RJ-45, Input cord: 6'
- Surge protection: Line & network line
- Plug/connector type: One NEMA 5-15P, Cord length: 6'
- Color: Black, Battery characteristics: Maintenance-free, Number of batteries: 1, Start on battery: Allows start of UPS without utility power
- Input voltage range: 93-138 VAC, Nominal voltage: 120 VAC, Operating frequency: 50/60 Hz (autosensing), Frequency range: 46-70 Hz (50 Hz system)
- Audible noise:
- Operating temperature: 0 to 35 deg C, Storage Temperature: -15 to 40 deg C, Efficiency:
- Includes UPS, cable, user manual
- Meets FCC Class B, UL 1778, FCC Part 15, UL497A, CE, cTUVus, NOM, RoHS certifications and standards
- Weight: 14.3 lbs.
- Comes with 3 years warranty
Specifications
Battery Backup Connectivity
USB
Battery Backup LCD Display
Yes
Battery Backup or UPS Device Type
Line-Interactive UPS
Battery Backup or UPS Form Factor
Tower
Battery Backup Run Time
11-20 min
Brand
Eaton
Compliance Standards
FCC Part 15, FCC Class B certified, UL 1778
Cord Length (ft.)
6
Depth in Inches
10.2
Height in Inches
9.8
Input Voltage
120 VAC
Operating Temperature (Degrees)
32 - 95 deg F
Outlet Count
8
Output Power Capacity (W)
420
Output Voltage
120 VAC
Power Capacity (VA)
700
Series or Collection
5S
True Color
Black
Types of Battery
Lead Acid Battery
USB Connectivity
USB Connection
VA Rating
501-750
Warranty Information
3 Year
Weight (lbs.)
14.3
Width in Inches
3.4
