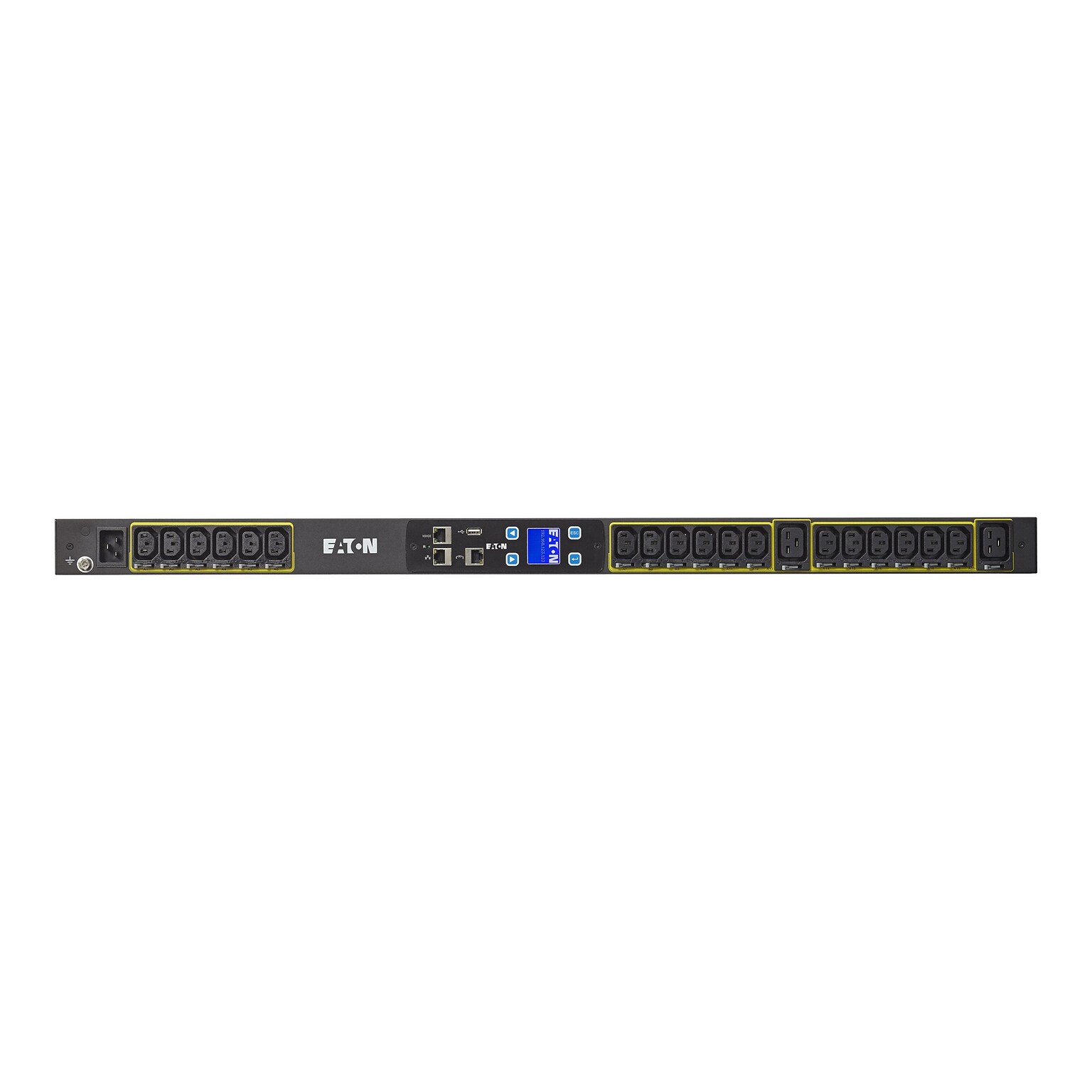

Eaton ® G3 Single-Phase Metered Input ePDU, 3.84kW, 16A, 20 Outlets (EMI103-10)
Item #:
901-IM1UR8478
Model #:
EMI103-10
Brand:
Eaton
Not yet rated. Be the first to
Write a review!
Out of stock
$962.00
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
The Eaton ® G3 EMI103-10 single-phase metered ePDU facilitates billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter of this ePDU, is perfect for measuring current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. It is great for IT and data center applications. This ePDU incorporates daisy chain that allows four ePDUs to share the same network connection and IP address. It can operate in high operating temperature environments up to 140 deg F. This ePDU has a input voltage rating of 120/208 V and power rating of 3.84 kVA.
- Enclosure power distribution unit offers reliable and cost effective power distribution
- Dimensions: 35.5"(H) x 2.1"(W) x 2.1"(D)
- Receptacles: IEC 60320 C20 input, 18 x IEC 60320 C13, two IEC 60320 C19 output, Ethernet interfaces: 10/100 Ethernet, Serial interface: RS232
- Voltage: 120/208 VAC input at 50/60 Hz, Input current: 16 A
- Output capacity: 3.84 kW
- Input cord length: 10'
- Form factor: Vertical (0U)
- Has high accuracy meter that measures current, voltage, power and energy for load balancing, capacity planning & energy usage reporting
- High operating temperature (140 deg F/60 deg C) for containment or hot network closet environments
- Perfect for IT and data center applications
- Allows +/- 1 percent billing grade accuracy for high accuracy reporting of energy usage
- Advanced LCD pixel display is perfect to display current, voltage, power and menu setup of parameters including IP address or display rotation
- Hot-swap meter offers easy serviceability without removing power to the rack
- Meets UL ITE 60950-1, FCC and CE standards or certifications
Specifications
Brand
Eaton
Cable Length (ft.)
10
Depth in Inches
2.1
Height in Inches
35.5
Input Connector
IEC 60320 C20
Input Current
16 A
Input Voltage
120/208 VAC
Load Capacity
3.84 kVA
Operating Temperature (Fahrenheit)
Up to 140 deg F
Outlet Count
20
Phase
Single-Phase
Power Distribution Unit Type
Metered
True Color
Black
Width in Inches
2.1
