Ideal LinkMaster™ 62-200 PRO Ethernet Tester (IDI62200)
Item #:
901-1591353
Model #:
IDI62200
Brand:
IDEAL
Not yet rated. Be the first to
Write a review!
$98.99
Per each
Upgrade to get 5% off, earn points 10% faster, and more!
Details
Limited quantity available: 8 remaining
Description

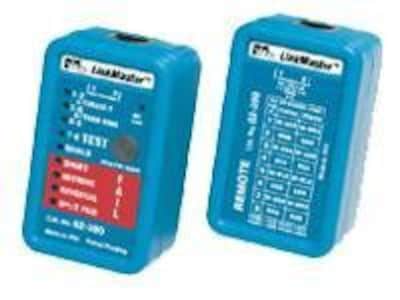

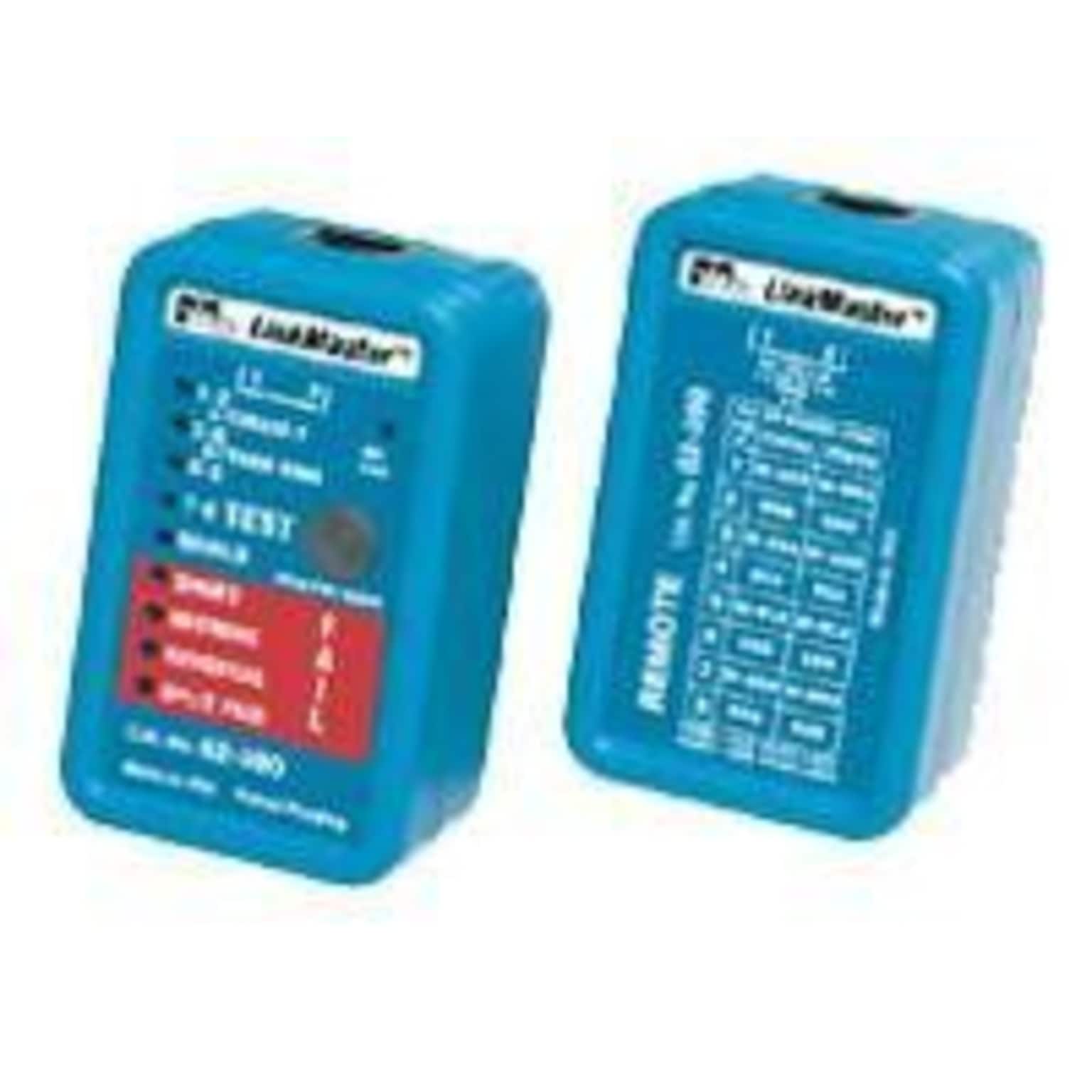

Ideal LinkMaster PRO - Test Twisted-Pair Wiring
The LinkMaster PRO tester enables installers, contractors and maintenance technicians to map, test and troubleshoot data and voice communication cable and coax runs.
- Interfaces/ports: 2 x RJ 45
- Dimension: 3.3"(H) x 2"(W) x 1.3"(D)
- Test wiring configuration on UTP and STP
- Tests unshielded and shielded modular plugs
- Check for shorts, miss wires, reversals and split pairs
- Debug feature, automatic shut off and low battery LED indicator
- Battery size supported: AA
- Device function: Open circuit testing, short circuit testing, split pair testing
- Designed to test installed twisted pair wiring
- Main unit and remote allow one person testing
- Open there is no "open" LED indication, a typical cable may have 2, 3, or 4 pairs, opens are displayed as an unlit LED
- User will determine if a pair is present and continuous or OPEN by comparing the illuminated LEDs to the expected number of pairs that should be good
- Short - a short circuit condition exists
- Split pairs - split pairs occur when the tip (positive conductor) and ring (negative conductor) of two twisted pairs are interchanged
- Pass indicators: Four green LEDs on pairs 1 2, 3 6, 4 5, and 7 8. All four pairs are terminated correctly, two green LEDs on pairs 3 6, and 4 5. Both pairs terminated correctly, yowl green LEDs on pairs 1 2, and 3 6. Both pairs terminated correctly
- Green shield LED indicates the shield on the cable is correctly and continuously wired through the modular plug termination
- Weight: 2 lbs.
Specifications
Brand
IDEAL
Depth in Inches
1.3
Display
LED
Height in Inches
3.3
Network Tool Type
Cable Tester
Power Source
Battery-powerd
Selling Quantity
1
Selling Quantity (UOM)
Each
True Color
Blue
Weight (lbs.)
2
Width in Inches
2
