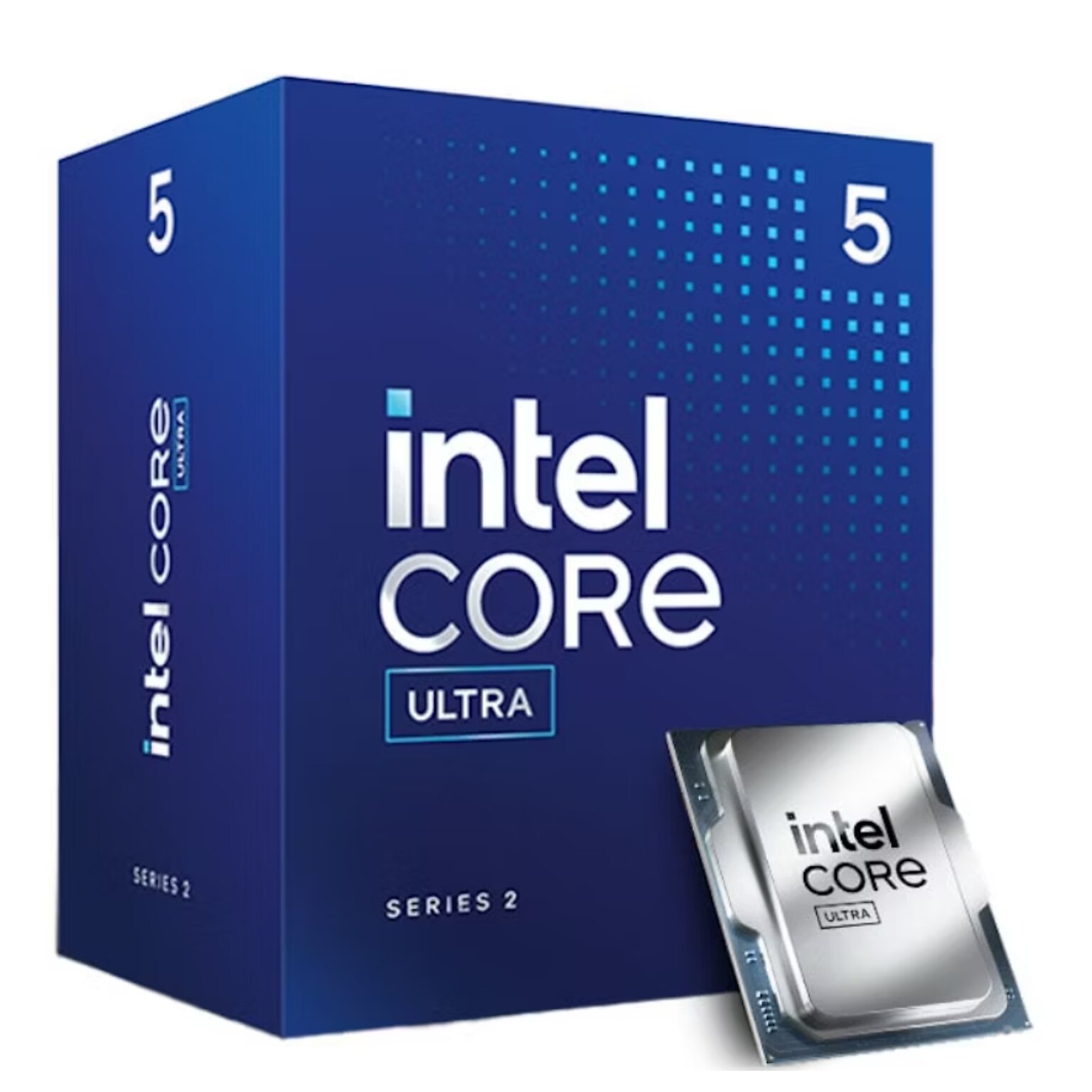

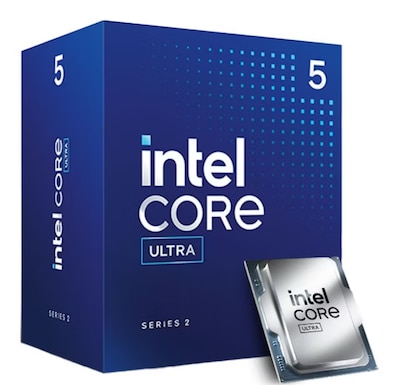

Intel Core Ultra 5 CPU 10-Core 3.30GHz Computer Processor, Socket LGA1851 (AT8076806416)
Item #:
901-IM1SB2255
Model #:
AT8076806416
Brand:
Intel
Not yet rated. Be the first to
Write a review!
Out of stock
$147.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
Brand
CPU Speed
CPU Type
Number of Core(s)
Type of Processor
Warranty Information
Cooler Type
CPU
CPU Cache Size
CPU Security Technology
Depth in Inches
Memory Type
Weight (Ounces)
Motherboard Compatibility
Number of Monitors
Number of Threads
OS Compatibility
Power Management
Processor Speed (Ghz)
Processor Technology
Series or Collection
Socket
Height in Inches
Software or Updates Included
TDP Rating
Transistor Size
True Color
Width in Inches
$147.99 each
Intel
4 to 4.9 GHz
Intel Core i5
10-core
Intel
3 Year
N/A
Intel Core Ultra 5 225F (14th Gen, Arrow Lake-S)
22MB L2 Cache, 20MB Smart Cache
Intel AES-NI, Intel Boot Guard, Control-Flow Enforcement Technology , Intel Trusted Execution Technology, Intel Memory Protection Extensions (MPX
0.20
1.6
DDR5 up to 6400 MT/s, Dual Channel
Compatible with Intel 800-series chipsets on LGA1851 socket motherboards
N/A
N/A
Windows 10, Windows 11, Linux
Intel SpeedStep Technology, Turbo Boost 2.0, Thread Director, Deep Power Down
N/A
Turbo Boost 2.0, Thread Director, Intel Deep Learning Boost, Intel Virtualization , Intel 64, Intel Speed Shift
Ultra
LGA1851
1.57
No bundled software; firmware updates provided via motherboard manufacturer
65W , 121W
3nm (TSMC N3B Process Node)
Silver
1.57
Intel
4 to 4.9 GHz
Intel Core i5
10-core
Intel
N/A
Heatsink + Fan
Intel Core i5 14400F (14th Gen)
9.50 MB L2 / 20 MB L3
Intel Hardware Shield, Intel Control-Flow Enforcement Technology , Intel Boot Guard, Intel AES New Instructions , Intel Secure Key
1.5
DDR5 SDRAM
N/A
N/A
N/A
16
Windows 10 , Windows 11 , Linux Distributions
N/A
2.5
Intel Hyper-Threading Technology, Intel Turbo Boost Technology 2.0, Intel SpeedStep Technology, Intel Thread Director, Intel Virtualization Technology
Core i5
LGA-1700
N/A
No
65W
10nm
N/A
1.8
Intel
5.0 GHz +
Intel Other
14-core
Intel
3 Year
Fan
The processor is an Intel Core Ultra 5 245K, part of Intel's Core Ultra series with advanced power and performance management features.
The CPU cache size for the Intel Core Ultra 5 245K is 30MB .
The Intel Core Ultra 5 245K supports Intel's hardware-based security features, including Intel SGX and other security tech
N/A
The Intel Core Ultra 5 245K supports DDR5 memory.
N/A
The processor is compatible with motherboards that have an LGA 1700 socket and support Intel's 12th or 13th-generation Core series processors.
The number of monitors supported by the system depends on the GPU and motherboard. This processor does not directly define this, but most modern Intel
20
The Intel Core Ultra 5 245K processor is compatible with operating systems such as Windows 10, Windows 11, and most Linux distributions.
The processor features dynamic power management to optimize performance based on workloads and power consumption. Intel's SpeedStep technology is incl
4.2
It supports Intel's hyper-threading, Turbo Boost, and virtualization technology, which helps optimize the performance in multi-threaded and high-deman
The processor is part of the Intel Core Ultra series, which is part of Intel's newer generation of CPUs designed for high performance.
The processor uses the LGA 1700 socket, compatible with Intel's 12th and 13th-generation motherboards.
N/A
Software or updates may vary depending on the motherboard manufacturer and the specific configuration, but typical updates would include firmware upda
The Thermal Design Power for the Intel Core Ultra 5 245K is 125W, reflecting its power consumption under maximum load.
N/A
The color of the processor is not generally specified, as it is a microchip typically encased in metal and plastic packaging.
N/A
Intel
3 to 3.7 GHz
Intel Core i3
Quad-Core
Intel i3
3 Year
N/A
Intel Core i3 14100F
12
N/A
N/A
DDR4/DDR5
N/A
N/A
N/A
8
N/A
N/A
3.5
Raptor Lake
Core
FCLGA1700
N/A
N/A
58
10
N/A
N/A
Description
The Intel Core Ultra 5 225F (AT8076806416) is a mid-range Arrow Lake-S desktop CPU released in Q1 2025. Built on TSMC's 3 nm node, it features a hybrid architecture with 6 high-performance and 4 efficiency cores, delivering a total of 10 cores and 10 threads. With base speeds of 3.3 GHz (P-cores) and 2.7 GHz (E-cores), and boost capabilities reaching up to 4.9 GHz and 4.4 GHz respectively, the 225F provides strong single- and multi-threaded performance. It offers 22 MB of L2 cache and 20 MB of L3 cache, supports dual-channel DDR5 (up to 6400 MT/s), and supplies up to 20 PCIe lanes with Gen 5 support. While it lacks integrated graphics, the F-designation ensures it's priced competitively for users pairing it with a discrete GPU. Additional features include AI acceleration (Deep Learning Boost & NPU with ~19 TOPS throughput), virtualization support, and a thermal design suited to a 65 W base envelope with bursts up to 121 W—all fitting in the modern LGA 1851 platform ecosystem.
- The processor features a total of 10 cores, including 6 high-performance (P-cores) and 4 efficient (E-cores), offering a balanced architecture for multitasking and performance-demanding applications.
- It runs at a base frequency of 3.30"GHz on P-cores and 2.70"GHz on E-cores, with turbo boost speeds reaching up to 4.90"GHz and 4.40"GHz respectively, supporting 10 threads for parallel task execution.
- The CPU supports dual-channel DDR5 memory at speeds up to 6400"MT/s and includes 22"MB of L2 cache and 20"MB of Intel Smart Cache (L3), with integrated technologies such as Intel Memory Protection Extensions (MPX) and Total Memory Encryption for enhanced
- It incorporates Intel Turbo Boost Technology 2.0, Intel Thread Director (for optimized core utilization), and supports virtualization technologies such as Intel VT-x and VT-d for running multiple OS environments efficiently.
- Designed for the Intel LGA1851 socket platform, the CPU is built on the Arrow Lake-S architecture and is compatible with the latest 800-series Intel chipsets.
- The processor has a base TDP of 65"W and a maximum turbo power of 121"W, with advanced power management features to balance performance and energy efficiency.
- The CPU offers 20 PCIe lanes (Gen 5.0 and Gen 4.0 support), providing ample bandwidth for high-speed SSDs, GPUs, and expansion cards, with support for single-socket desktop configurations.
- It is fully compatible with 64-bit versions of Windows and Linux operating systems and supports Intel's latest AI and software optimization frameworks including Intel Deep Learning Boost and NPU acceleration features.
- The processor integrates Intel AES-NI, Control-flow Enforcement Technology (CET), Intel Boot Guard, and Intel Trusted Execution Technology to provide a robust layer of protection against modern threats.
- As a tray CPU, it does not ship with a stock cooler and requires an LGA1851-compatible cooling solution; it features onboard digital thermal sensors and thermal velocity boost management for responsive thermal control.
- The CPU adheres to RoHS and REACH environmental standards and complies with Intel's corporate quality and reliability benchmarks for OEM and system integrator platforms.
Specifications
Brand
Intel
CPU
Intel Core Ultra 5 225F (14th Gen, Arrow Lake-S)
CPU Cache Size
22MB L2 Cache, 20MB Smart Cache
CPU Security Technology
Intel AES-NI, Intel Boot Guard, Control-Flow Enforcement Technology , Intel Trusted Execution Technology, Intel Memory Protection Extensions (MPX
CPU Speed
4 to 4.9 GHz
CPU Type
Intel Core i5
Depth in Inches
0.20
Height in Inches
1.57
Memory Type
DDR5 up to 6400 MT/s, Dual Channel
Motherboard Compatibility
Compatible with Intel 800-series chipsets on LGA1851 socket motherboards
Number of Core(s)
10-core
OS Compatibility
Windows 10, Windows 11, Linux
Power Management
Intel SpeedStep Technology, Turbo Boost 2.0, Thread Director, Deep Power Down
Processor Technology
Turbo Boost 2.0, Thread Director, Intel Deep Learning Boost, Intel Virtualization , Intel 64, Intel Speed Shift
Series or Collection
Ultra
Socket
LGA1851
Software or Updates Included
No bundled software; firmware updates provided via motherboard manufacturer
TDP Rating
65W , 121W
Transistor Size
3nm (TSMC N3B Process Node)
True Color
Silver
Type of Processor
Intel
Warranty Information
3 Year
Weight (Ounces)
1.6
Width in Inches
1.57
