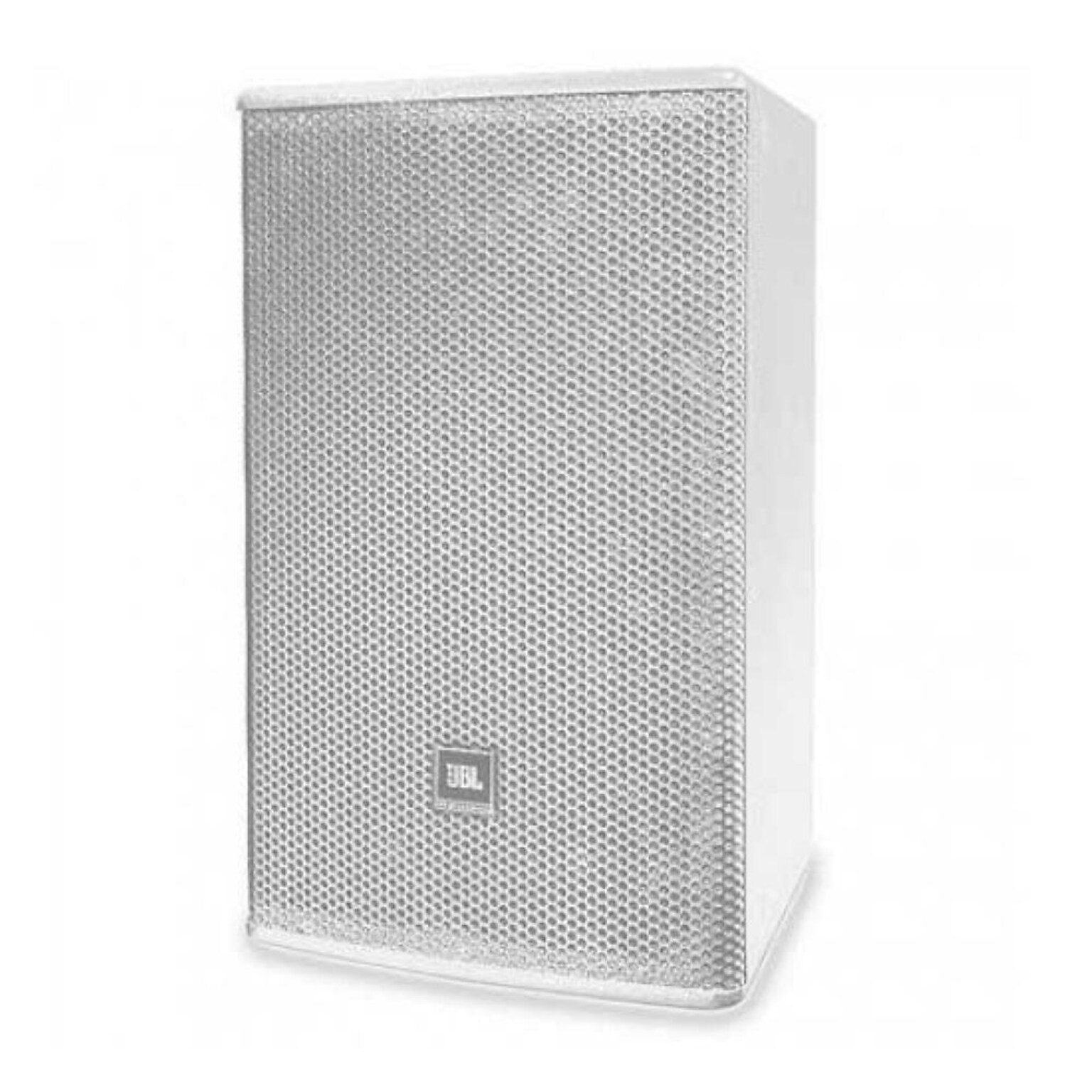

JBL AE Series AC266-WH Full-Range PA Loudspeaker, 500 Watt
Item #:
901-IM1Z44154
Model #:
AC266-WH
Brand:
JBL
Not yet rated. Be the first to
Write a review!
Out of stock
$856.59
Per each
Description
AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation.
- 12-inch wired 2-way passive loudspeaker built for fixed installation setups
- AES-rated power handling of 350W continuous and 1400W peak, and an IEC-rated power of 250W continuous, 500W program, and 1000W peak
- 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Frequency response of 80 Hz to 18 kHz (±3 dB) and a broader frequency range of 63 Hz to 20 kHz (-10 dB)
- Robust 15mm enclosure with white textured finish
- Weighs approximately 38.36 pounds
- Dimensions (H x W x D): 23.6" x 14.6" x 15.43"
Specifications
Adjustable Shelves
No
Base Material
Wood
Brand
JBL
Built in Power Strip
No
Depth in Inches
15.4
Frequency Response (MHz)
63 Hz - 20 kHz
Furnishing Color
White
Furniture Material
Wood/Veneer
Height in Inches
23.6
Input Voltage Capacity
100 - 240 VAC
Lectern & PA System Type
Portable PA Systems
Lectern Features
Integral PA System
Output Power Capacity (W)
500
PA System Audience Size
Medium
PA System Power Supply
Ac Powered
PA System Specification
Portable
PA System Type
PA System
Package Contents
JBL AC266-WH Full-Range PA Loudspeaker, Mounting Hardware, User Guide, Warranty Information
Power Source
Ac Powered
Projection Distance
15 to 25 feet
Quantity
1
Series or Collection
AE Series
True Color
White
Warranty Information
5 Year
Weight (lbs.)
38.3
Width in Inches
14.5
