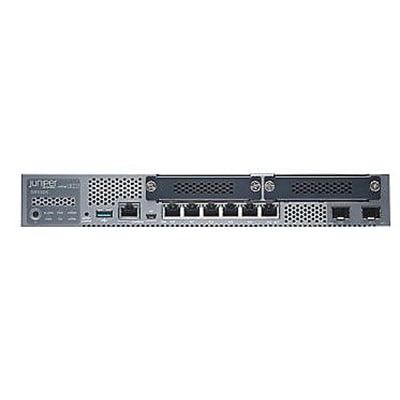

Juniper® Desktop Gigabit Ethernet Gateway Security Appliance, 8 Ports (SRX320-SYS-JB)
Item #:
901-IM11DC295
Model #:
SRX320-SYS-JB
Brand:
Juniper
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Gateway security appliance prevents dangerous applications and malicious websites
- Dimensions: 1.73"H x 11.81"W x 7.52"D
- Color: Gray
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Try FREE for 60 days
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code.
Description
The Juniper® 8-Port desktop Gigabit Ethernet gateway security appliance in grey, supports DHCP client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and Ipmonitoring protocols. With 4GB RAM and 8GB flash memory, this appliance has six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console and two mini PIM interfaces/ports. The appliance supports 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL and Triple DES encryption algorithms. This security appliance supports routing protocols such as IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector and IS-IS. The appliance works with SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script.
- Gateway security appliance prevents dangerous applications and malicious websites
- Dimensions: 1.73"H x 11.81"W x 7.52"D
- Color: Gray
- Interfaces/ports: Six RJ-45, two SFP (mini-GBIC), one USB 3.0, one console, one mini PIM
- Memory: 4GB (RAM), 8GB (flash), Form factor: Desktop
- Encryption algorithm: 256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
- Power: 180 W (PoE), Consumption: 27 - 112 W, 0.473 - 2.07 A (current), Heat dissipation: 157 - 755 BTU/hr
- Network: IEEE 802.1p, IEEE 802.1x, Ethernet, Fast Ethernet, Frame Relay, Gigabit Ethernet, HDLC, MLFR, MLPPP, PPP
- Performance: 200 Kpps (firewall throughput), 500 Mbps (IMIX), 80 Mbps (IPSec), 250 Mbps (1400-byte packet size), 100 Mbps (IPS throughput),
- Routing protocols: IPv4, IPv6, ISO, CLNS, RIP v1/v2, OSPF/OSPF v3, BGP with Route Reflector, IS-IS
- QoS 802.1p, DiffServ code point (DSCP), EXP, marking, policing and shaping, classification and scheduling, WRED, Ingress traffic policing
- Switching: ASIC-based layer 2 forwarding, MAC address learning, IRB, link aggregation and LACP, LLDP and LLDP-MED, STP, MVRP, 802.1X authentication
- VPN generic routing encapsulation (GRE), IP-IP, Ipsec, site-site IPsec VPN, auto VPN, IPsec crypto algorithms, multi-proxy ID for site-site VPN
- Dynamic host configuration protocol (DHCP) client/server/relay, DNS, DDNS, real time performance monitoring (RPM) and IP monitoring
- Virtual router redundancy protocol, dial on-demand backup interfaces and IP monitoring with route and interface failover
- Temperature: 32 to 104 deg F (operating), Humidity: 10 - 90 % non-condensing (operating)
- Supports SSH, Telnet, SNMP, smart image download, CLI and Web UI, Junos space and security director, Python, Junos OS event, commit and OP script
- Meets FCC Class A certified, RoHS2 standards and certifications
- Weight: 3.28 - 3.4 lbs.
Specifications
Brand
Juniper
Built-in Firewall
Yes (363713)
Connector, Port or Interface Type(s)
6 x RJ-45, 2 x SFP (mini-GBIC), 1 x USB 3.0, 1 x console, and 2 x mini PIM interfaces/ports
Depth in Inches
7.52
Gaming
Non Gaming
Gigabit
Yes
Height in Inches
1.73
Quality of Service
Yes
Security Protocols
256-bit AES, 256-bit SHA, DES, IKE, IKEv2, MD5, PKI, SHA-1, SSL, Triple DES
USB Port
Yes
VPN Support
Yes
Weight (lbs.)
3.4
Width in Inches
11.81
