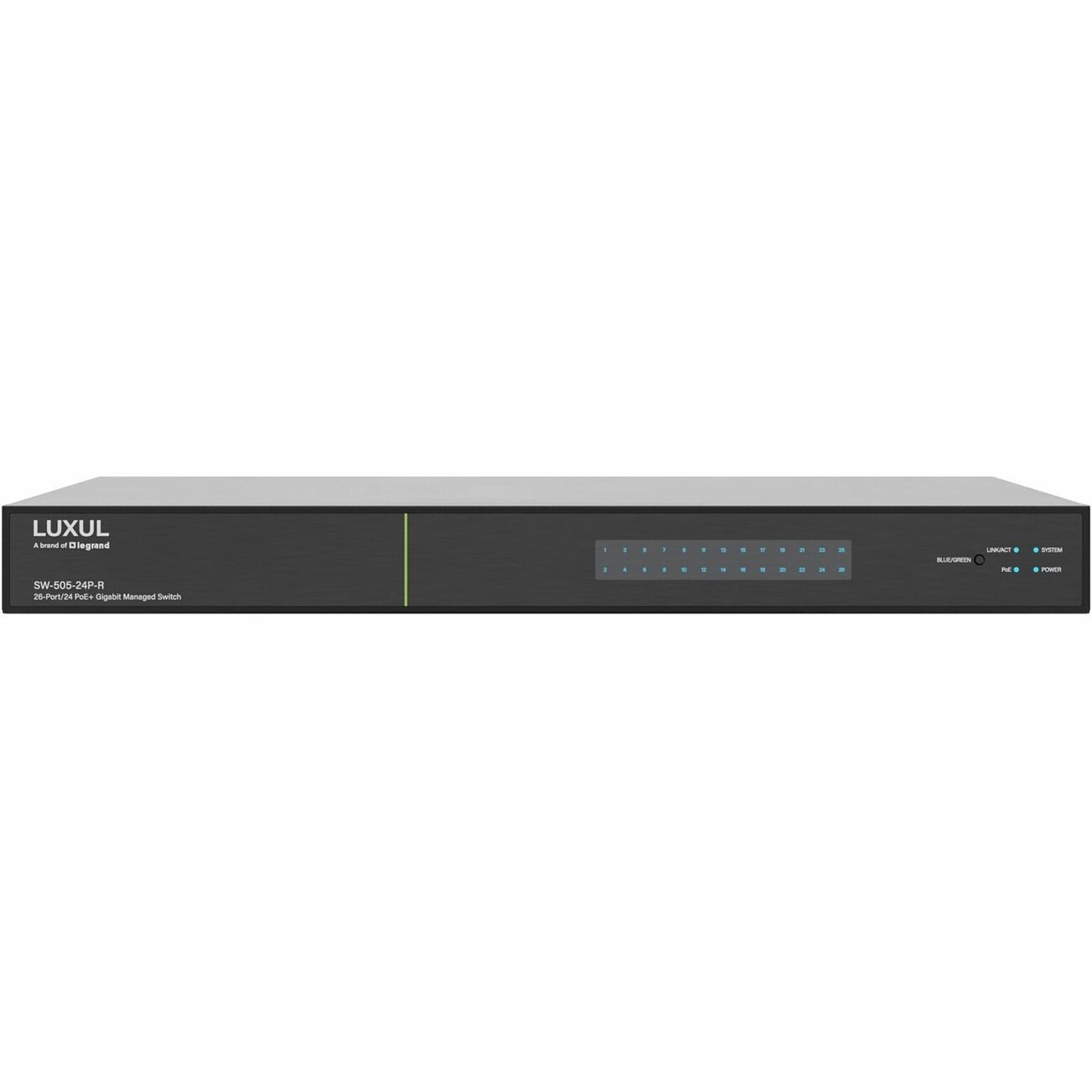

Luxul Legrand 24 PoE+ 1Gb L2/L3 Managed Switch, US Power Cord, Black (SW-505-24P-R)
Item #:
901-24605699
Model #:
SW50524PR
Brand:
Legrand
Not yet rated. Be the first to
Write a review!
Out of stock
$1,488.00
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
The SW-505-24P-R includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 250W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. Watch Video: Meet our SW Series Managed PoE+ Switches
- 1Gb L2/L3 Managed Switch, US Power Cord
- Dante and AES67 compatibility AV-over-IP compatible
- Dimensions Height 1.75 in, Width 8.3 Length 17.4 in Product Weight 6.6 lbs.
- Color Black, Material Metal
- Selling Quantity 1
- Refreshed, simplified user interface
- Supports inbound (ingress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 52Gbps switching capacity
- 802.1Q VLAN and QoS support including DCSP
Specifications
Brand
Legrand
Compatibility
Dante and AES67 compatibility, AV-over-IP compatible
Depth in Inches
17.4
Height in Inches
1.75
Networking Accessory Type
PoE Converter
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
SW-505-24P-R
True Color
Black
Weight (lbs.)
6.6
Width in Inches
8.3
