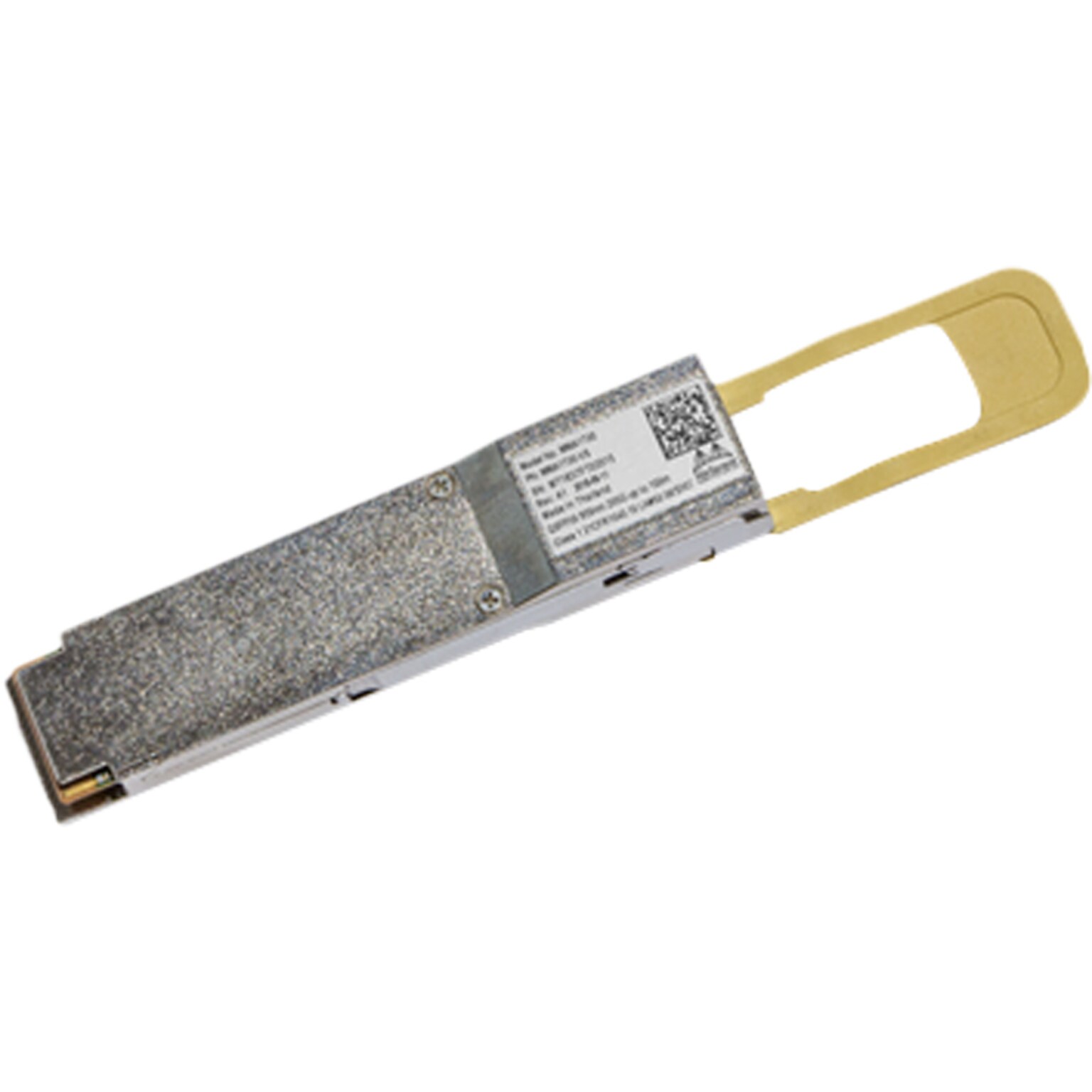

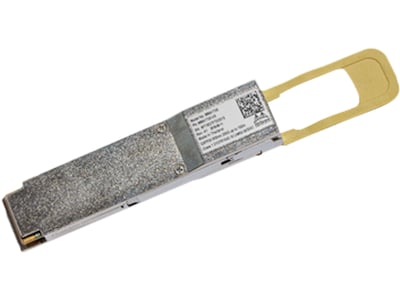

Mellanox Nvidia Gigabit Ethernet Multi-Mode QSFP56 Transceiver Module, 200000 Mbps (MMA1T00-VS)
Item #:
901-IM15TZ529
Model #:
MMA1T00-VS
Brand:
Mellanox
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Optical interface is composed of four optical channels/fibers in each direction; intended for a parallel multimode optical cable via a standard MPO-12 UPC connector
- This four-channel, pluggable, QSFP56 optical transceiver, designed for use in 200GbE Ethernet applications
- Each channel/fiber operates at signaling rates up to 26Gbps
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Start your membership
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code.
Description
- Optical interface is composed of four optical channels/fibers in each direction; intended for a parallel multimode optical cable via a standard MPO-12 UPC connector
- This four-channel, pluggable, QSFP56 optical transceiver, designed for use in 200GbE Ethernet applications
- Each channel/fiber operates at signaling rates up to 26Gbps
- Up to 100m on OM4 and 70m on OM3 multimode fiber at 200Gbps
- Data rate: up to 200Gbps
- Hot-pluggable
- Will work with a fiber plant as specified in the QSFP MSA standard
- Uses a nominal wavelength of 850nm
- Programmable Rx output amplitude and emphasis
- Meets or exceeds RoHS standard
Specifications
Brand
Mellanox
Connector, Port or Interface Type(s)
QSFP56
Data Transfer Rate (Gbps)
200
Data Transfer Rate (Mbps)
200000
Fiber Cable Type
Multi-Mode
Gigabit
Yes
Hot Swappable
Yes
Max. Data Transfer Rate (Mbps)
More than 3000
Network Transceiver Type
QSFP
Selling Quantity (UOM)
Each
Wavelength (Nm)
850
