MRCOOL DIY 5th Gen 18K BTU 22.5 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY18HPWM230D25)
$2,909.99
Per each
MRCOOL DIY 5th Gen 18K BTU 22.5 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY18HPWM230D25)
Item #:
901-DIY18230D25
Model #:
DIY18HPWM230D25
Brand:
MRCOOL
Not yet rated. Be the first to
Write a review!
New
$2,909.99
Per each
Want an extra discount today, and every day? Start your free trial.
MRCOOL DIY 5th Gen 18K BTU 22.5 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY18HPWM230D25)
Description
Introducing the new 5th Generation MRCOOL® DIY® 18K BTU 22.5 SEER Ductless Heat Pump A/C Single Zone Mini Split, a game-changer for home climate control. Designed for straightforward installation, it requires no specialized tools or professional help, making it an excellent choice for spaces ranging from 500-750 sq. ft. The system includes a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, streamlining installation by eliminating the need for vacuuming. The DIYPRO® cable adds extra protection against weather, animals, and yardwork damage, replacing the need for traditional electrical conduit. Managing your home's temperature has never been easier. You can adjust settings using the included remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Gold Fin Condenser enhances durability, providing excellent corrosion resistance for coastal environments. Designed for efficiency and comfort, this system offers multiple features. The Timer function helps control energy use, while Auto mode maintains your preferred temperature without manual adjustments. After a power outage, the unit automatically restores previous settings, and the anti-mildew function prevents excess moisture buildup inside the air handler. Built for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, featuring a limited lifetime warranty, plus 7 years on the compressor and 5 years on parts. With its innovative design, simple installation, and dependable performance, this system delivers hassle-free comfort for your home.
- Not compatible with R-410A systems
- Energy Star certified 22.5 SEER2, 11.5 HSPF2
- Easy DIY installation: pre-charged R-454B 25ft quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 550-800 Sq Ft room
- SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Gold fin condenser corrosion resistant - live on the coast, but don’t worry, our condenser is built to resist long-term corrosion
- 5-year parts warranty and 7-Year compressor
- Follow me-feature, dehumidifying operation, auto mode, louver position memory, and sleep mode

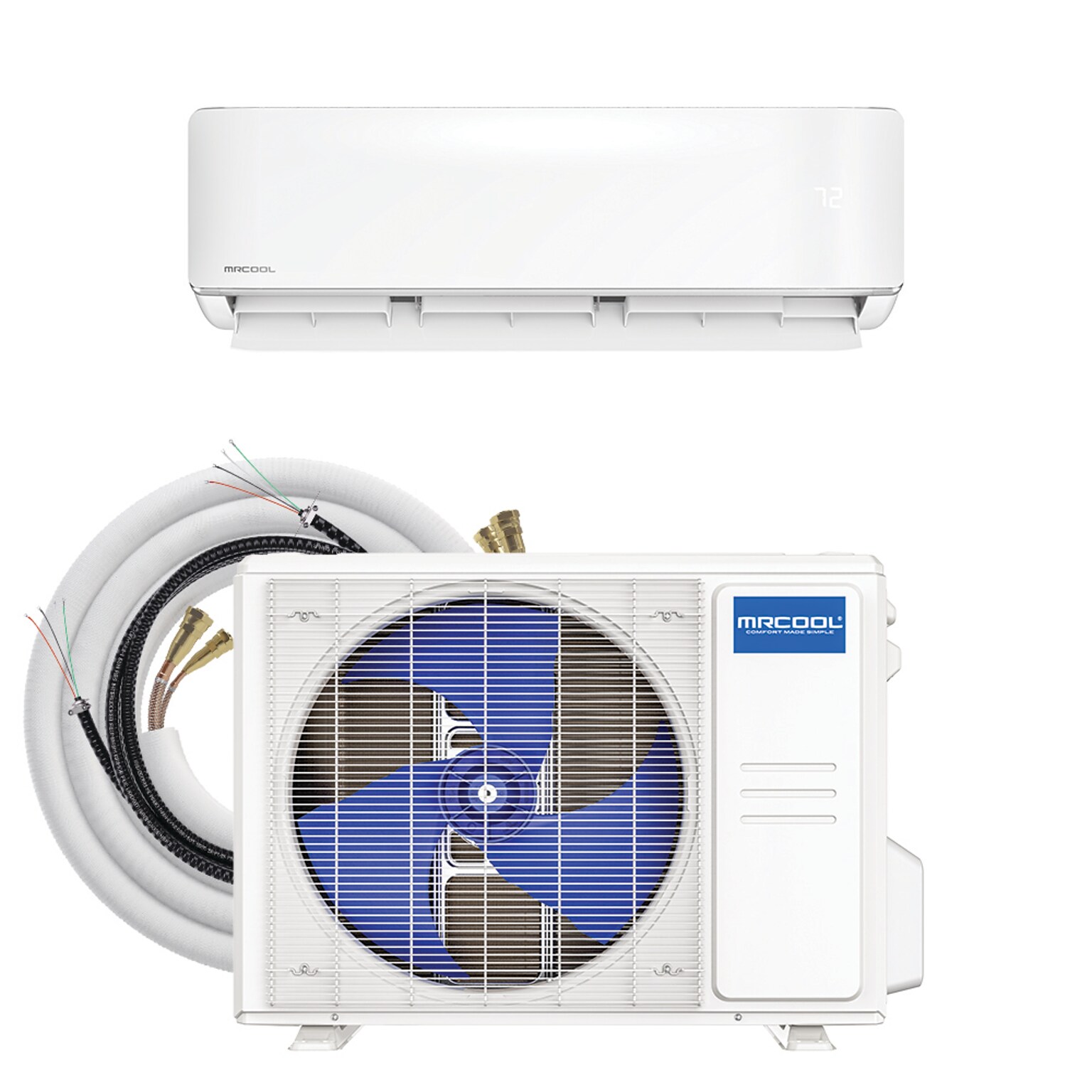

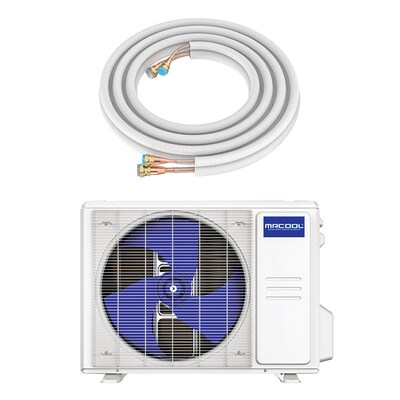

- Outdoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 18k BTU outdoor condenser, (1) 25’ DIY Pre-charged No-Vac Quick Connect® lineset - 454B, (1) 16’ Condensate Drain Hose, (4) Rubber Feet, (1) Neoprene sealant, (1) Plastic Wall Sleeve, (1) Roll of Non-Adhesive U.V. Tape, (1) Allen Wrench

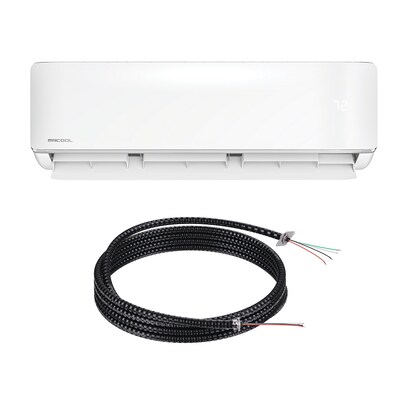

- Indoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 18k BTU wall mounted air handler, (1) 25’ DIY Pro communication cable, (1) Cardboard Mounting Plate Template, (1) Mounting Plate, (2) Batteries, (1) Remote Control, (1) Remote Control Holder & Fixing Screw, (1) Smart USB AC Controller Kit, (1) Drain Joint & Seal, (2) Foam Insulators, (2) Sound Deadening Pads, (1) Small Filter, (1) Installation & Owner’s Manual, (1) Remote Control Manual
Specifications
Air Conditioner Mount Type
Wall
Air Conditioner Voltage
208-230
Air Flow (Maximum CFM)
470.9
ASHRAE BTU Rating
18000 cooling/18000 heating
Brand
MrCool
BTU Rating (ASHRAE)
18000 cooling/18000 heating
BTU Rating (DOE SACC)
18000 cooling/18000 heating
Built-in Heater
Yes
Color Family
White
Coverage Area (Square Feet)
Up to 800
Depth in Inches
Outdoor: 13.46 Indoor: 8.90
DOE SACC BTU Rating
18000 cooling/18000 heating
EER
13.7
Height in Inches
Outdoor: 26.50 Indoor: 13.19
Mechanical Control Panel
No
Noise Level (decibels)
Outdoor: 58.5 Indoor: 44.5/40.5/30.5
Number of Cooling Speeds
3
Programmable
Yes
Remote Control Included
Yes
Series or Collection
5th Gen Series
Shipping Carton Size
Outdoor: 18.1" x 40.55" x 29.53" Indoor: 17.68" x 46.73" x 14.29"
Shipping Carton Weight (Lbs)
Outdoor: 114.20 Indoor: 49.60
Suggested Room Size (sq. ft.)
Up to 800
True Color
White
Voltage-volts
208-230
Warranty Information
Limited Warranty
Weight (lbs.)
Outdoor: 93.48 Indoor: 35.49
Width in Inches
Outdoor: 35.04 Indoor: 42.52
WiFi Capable
Yes
