MRCOOL DIY 5th Gen 24K BTU 22.7 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY24HPWM230D25)
$3,329.99
Per each
MRCOOL DIY 5th Gen 24K BTU 22.7 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY24HPWM230D25)
Item #:
901-DIY24230D25
Model #:
DIY24HPWM230D25
Brand:
MRCOOL
Not yet rated. Be the first to
Write a review!
New
$3,329.99
Per each
Want an extra discount today, and every day? Start your free trial.
MRCOOL DIY 5th Gen 24K BTU 22.7 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY24HPWM230D25)
Description
Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump A/C Single Zone Mini Split is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft. The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin Condenser enhances corrosion resistance, ensuring lasting performance. This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.
- Not compatible with R-410A systems
- Energy Star certified 22.7 SEER2, 9.5 HSPF2
- Easy DIY installation: pre-charged R-454B 25ft quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 800-1050 Sq Ft room
- SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Gold fin condenser corrosion resistant - live on the coast, but don’t worry, our condenser is built to resist long-term corrosion
- 5-year parts warranty and 7-Year compressor
- Follow me-feature, dehumidifying operation, auto mode, louver position memory, and sleep mode

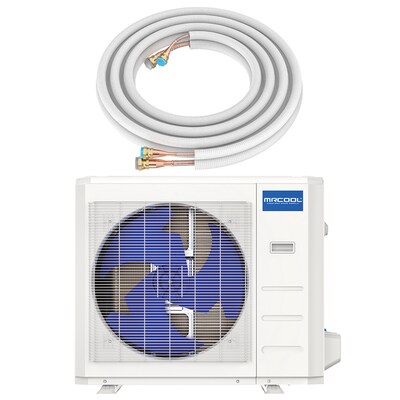

- Outdoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 24k BTU outdoor condenser, (1) 25’ DIY Pre-charged No-Vac Quick Connect® lineset - 454B, (1) 16’ Condensate Drain Hose, (4) Rubber Feet, (1) Neoprene sealant, (1) Plastic Wall Sleeve, (1) Roll of Non-Adhesive U.V. Tape, (1) Allen Wrench

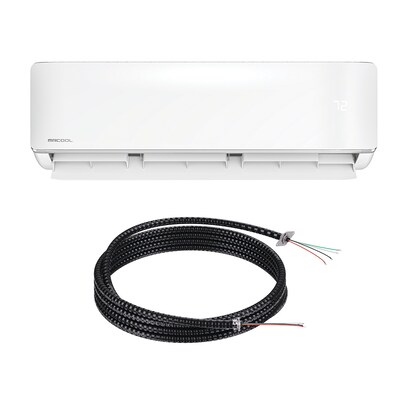

- Indoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 24k BTU wall mounted air handler, (1) 25’ DIY Pro communication cable, (1) Cardboard Mounting Plate Template, (1) Mounting Plate, (2) Batteries, (1) Remote Control, (1) Remote Control Holder & Fixing Screw, (1) Smart USB AC Controller Kit, (1) Drain Joint & Seal, (2) Foam Insulators, (2) Sound Deadening Pads, (1) Small Filter, (1) Installation & Owner’s Manual, (1) Remote Control Manual
Specifications
Air Conditioner Mount Type
Wall
Air Conditioner Voltage
208-230
Air Flow (Maximum CFM)
588.6
ASHRAE BTU Rating
24000 cooling/24000 heating
Brand
MrCool
BTU Rating (ASHRAE)
24000 cooling/24000 heating
BTU Rating (DOE SACC)
24000 cooling/24000 heating
Built-in Heater
Yes
Color Family
White
Coverage Area (Square Feet)
Up to 1050
Depth in Inches
Outdoor: 16.14 Indoor: 8.90
DOE SACC BTU Rating
24000 cooling/24000 heating
EER
12.7
Height in Inches
Outdoor: 31.89 Indoor: 13.19
Mechanical Control Panel
No
Noise Level (decibels)
Outdoor: 58.5 Indoor: 48/43/33.5
Number of Cooling Speeds
3
Programmable
Yes
Remote Control Included
Yes
Series or Collection
5th Gen Series
Shipping Carton Size
Outdoor: 19.88" x 42.91" x 37.01" Indoor: 17.68" x 46.73" x 14.29"
Shipping Carton Weight (Lbs)
Outdoor: 155.64 Indoor: 49.82
Suggested Room Size (sq. ft.)
Up to 1050
True Color
White
Voltage-volts
208-230
Warranty Information
Limited Warranty
Weight (lbs.)
Outdoor: 122.80 Indoor: 35.93
Width in Inches
Outdoor: 37.24 Indoor: 42.52
WiFi Capable
Yes
