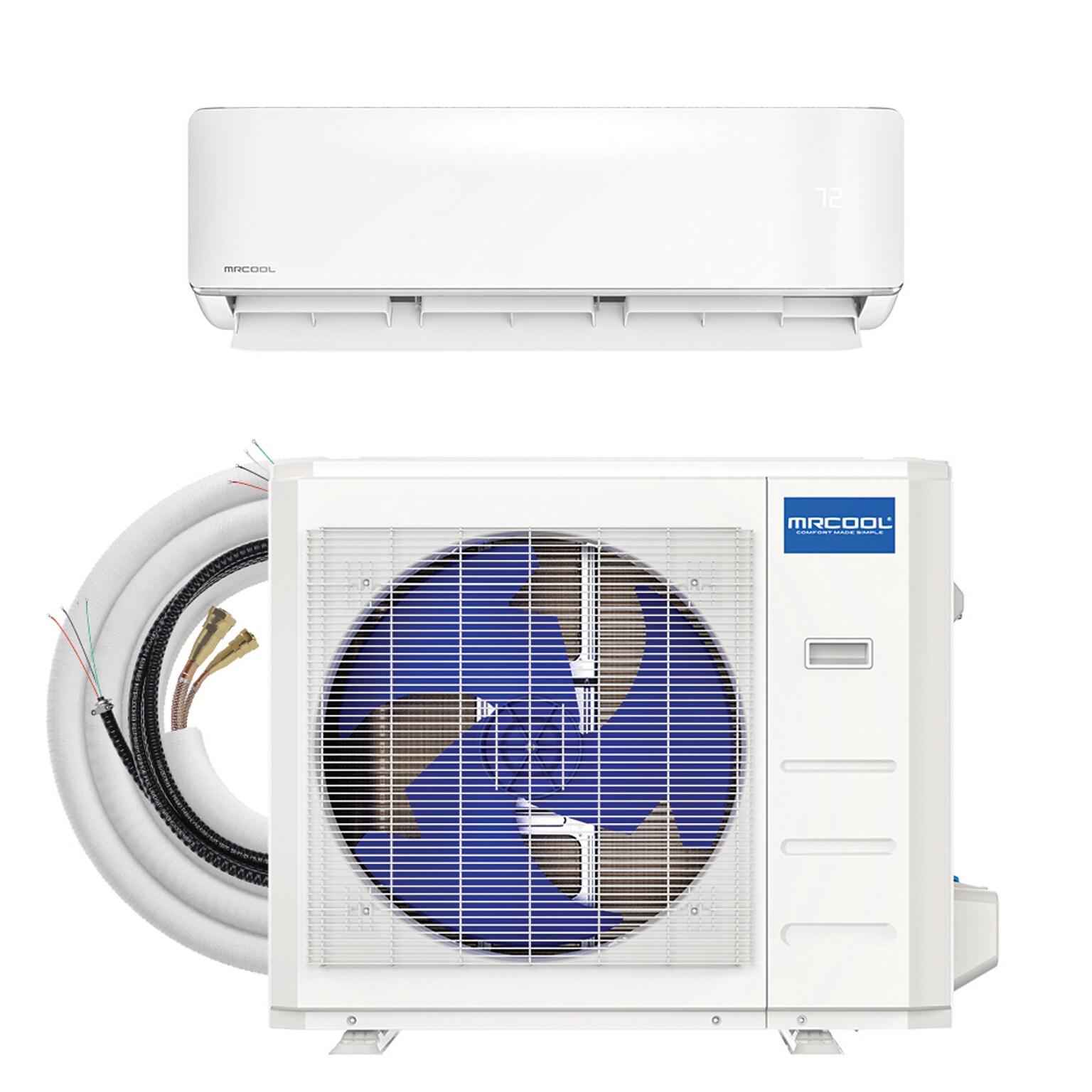

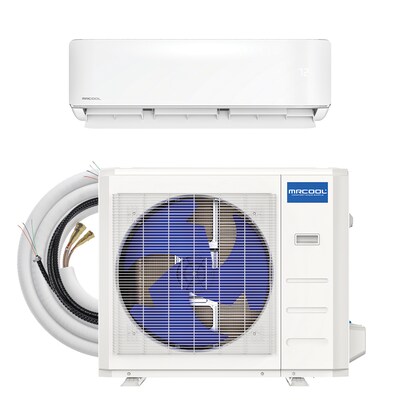

MRCOOL DIY 5th Gen 36K BTU 18 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY36HPWM230D25)
$3,769.99
Per each
MRCOOL DIY 5th Gen 36K BTU 18 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY36HPWM230D25)
Item #:
901-DIY36230D25
Model #:
DIY36HPWM230D25
Brand:
MRCOOL
Not yet rated. Be the first to
Write a review!
New
$3,769.99
Per each
Want an extra discount today, and every day? Start your free trial.
MRCOOL DIY 5th Gen 36K BTU 18 SEER2 Mini-Split Heat Pump w/ 25 ft. Pre-Charged Line Set R454B-230V (DIY36HPWM230D25)
Description
The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump A/C Single Zone Mini Split makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin Condenser offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Plus, the anti-mildew function prevents excess condensation buildup inside the air handler. Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
- Not compatible with R-410A systems
- Energy efficient 18 SEER2, 8.5 HSPF2
- Easy DIY installation: pre-charged R-454B 25ft quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 1050-1550 Sq Ft room
- SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Gold fin condenser corrosion resistant - live on the coast, but don’t worry, our condenser is built to resist long-term corrosion
- 5-year parts warranty and 7-Year compressor
- Follow me-feature, dehumidifying operation, auto mode, louver position memory, and sleep mode

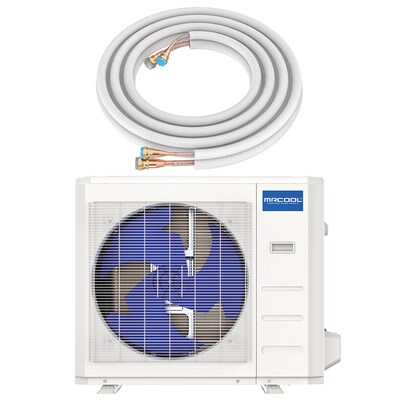

- Outdoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 36k BTU outdoor condenser, (1) 25’ DIY Pre-charged No-Vac Quick Connect® lineset - 454B, (1) 16’ Condensate Drain Hose, (4) Rubber Feet, (1) Neoprene sealant, (1) Plastic Wall Sleeve, (1) Roll of Non-Adhesive U.V. Tape, (1) Allen Wrench

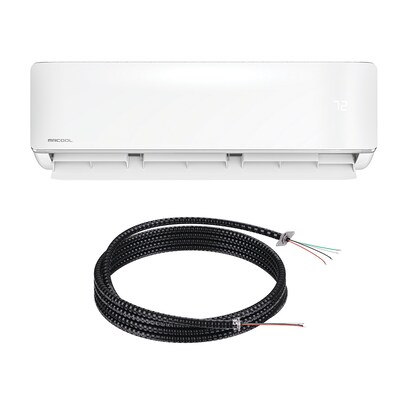

- Indoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 36k BTU wall mounted air handler, (1) 25’ DIY Pro communication cable, (1) Cardboard Mounting Plate Template, (1) Mounting Plate, (2) Batteries, (1) Remote Control, (1) Remote Control Holder & Fixing Screw, (1) Smart USB AC Controller Kit, (1) Drain Joint & Seal, (2) Foam Insulators, (2) Sound Deadening Pads, (1) Small Filter, (1) Installation & Owner’s Manual, (1) Remote Control Manual
Specifications
Air Conditioner Mount Type
Wall
Air Conditioner Voltage
208-230
Air Flow (Maximum CFM)
588.6
ASHRAE BTU Rating
36000 cooling/36000 heating
Brand
MrCool
BTU Rating (ASHRAE)
36000 cooling/36000 heating
BTU Rating (DOE SACC)
36000 cooling/36000 heating
Built-in Heater
Yes
Color Family
White
Coverage Area (Square Feet)
Up to 1550
Depth in Inches
Outdoor: 16.14 Indoor: 11.10
DOE SACC BTU Rating
36000 cooling/36000 heating
EER
8.5
Height in Inches
Outdoor: 31.89 Indoor: 14.25
Mechanical Control Panel
No
Noise Level (decibels)
Outdoor: 60.5 Indoor: 49.5/43.5/38
Number of Cooling Speeds
3
Programmable
Yes
Remote Control Included
Yes
Series or Collection
5th Gen Series
Shipping Carton Size
Outdoor: 19.88" x 42.91" x 37.01" Indoor: 18.74" x 53.94" x 16.57"
Shipping Carton Weight (Lbs)
Outdoor: 183.42 Indoor: 67.90
Suggested Room Size (sq. ft.)
Up to 1550
True Color
White
Voltage-volts
208-230
Warranty Information
Limited Warranty
Weight (lbs.)
Outdoor: 152.12 Indoor: 48.72
Width in Inches
Outdoor: 37.24 Indoor: 49.57
WiFi Capable
Yes
