MRCOOL DIY 5th Gen 9K BTU 23.6 SEER2 Mini-Split Heat Pump w/ 25ft Pre-Charged Line Set R454B 115V (DIY09HPWM115D25)
$2,329.99
Per each
MRCOOL DIY 5th Gen 9K BTU 23.6 SEER2 Mini-Split Heat Pump w/ 25ft Pre-Charged Line Set R454B 115V (DIY09HPWM115D25)
Item #:
901-DIY09115D25
Model #:
DIY09HPWM115D25
Brand:
MRCOOL
Not yet rated. Be the first to
Write a review!
New
$2,329.99
Per each
Want an extra discount today, and every day? Start your free trial.
MRCOOL DIY 5th Gen 9K BTU 23.6 SEER2 Mini-Split Heat Pump w/ 25ft Pre-Charged Line Set R454B 115V (DIY09HPWM115D25)
Description
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump A/C Single Zone Mini-Split is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces up to 350 sq. ft. The pre-charged 25-foot QuickConnect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the need for vacuuming. The included DIYPRO® cable replaces the need for electrical conduit, offering added durability against weather, animals, and yardwork tools. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. For coastal homes, the Gold Fin Condenser provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. The Timer function helps reduce energy use, while Auto mode maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. The anti-mildew function prevents mold by reducing excess condensation in the air handler. Backed by an industry-leading warranty, the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split now includes a limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
- Not compatible with R-410A systems
- Energy Star certified 23.6 SEER2, 11.5 HSPF2
- Easy DIY installation: pre-charged R-454B 25ft quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 350 Sq Ft room
- SmartHVAC app: wifi control - compatible with amazon Alexa and Google assistant - you can control your DIY anywhere with your apple or android smart device and an Internet connection
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Gold fin condenser corrosion resistant - live on the coast, but don’t worry, our condenser is built to resist long-term corrosion
- 5-year parts warranty and 7-Year compressor
- Follow me-feature, dehumidifying operation, auto mode, louver position memory, and sleep mode

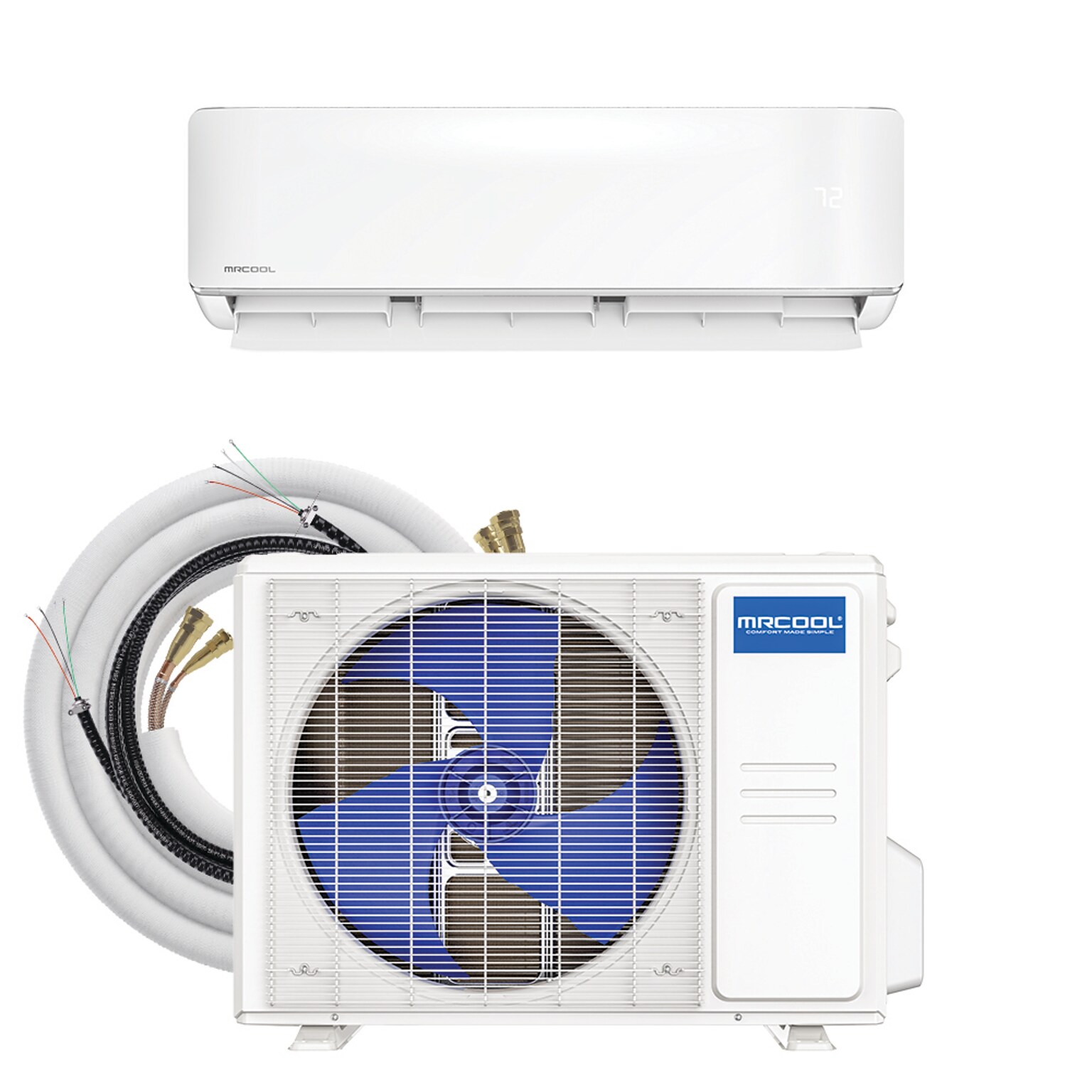

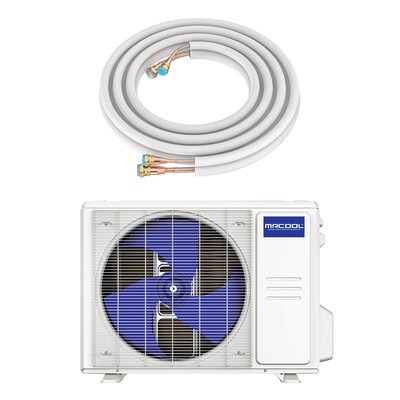

- Outdoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 9k BTU outdoor condenser, (1) 25’ DIY Pre-charged No-Vac Quick Connect® lineset - 454B, (1) 16’ Condensate Drain Hose, (4) Rubber Feet, (1) Neoprene sealant, (1) Plastic Wall Sleeve, (1) Roll of Non-Adhesive U.V. Tape, (1) Allen Wrench

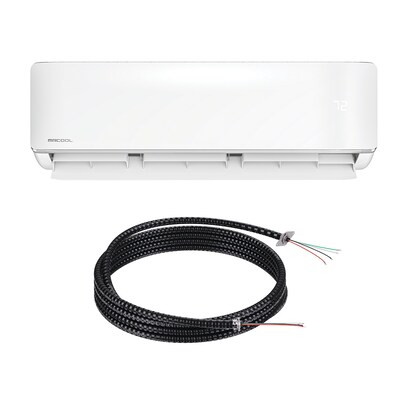

- Indoor Unit: (1) MRCOOL 5th Gen DIY Mini Split Heat Pump AC 9k BTU wall mounted air handler, (1) 25’ DIY Pro communication cable, (1) Cardboard Mounting Plate Template, (1) Mounting Plate, (2) Batteries, (1) Remote Control, (1) Remote Control Holder & Fixing Screw, (1) Smart USB AC Controller Kit, (1) Drain Joint & Seal, (2) Foam Insulators, (2) Sound Deadening Pads, (1) Small Filter, (1) Installation & Owner’s Manual, (1) Remote Control Manual
Specifications
Air Conditioner Mount Type
Wall
Air Conditioner Voltage
115
Air Flow (Maximum CFM)
317.8
ASHRAE BTU Rating
9000 cooling/10000 heating
Brand
MRCOOL
BTU Rating (ASHRAE)
9000 cooling/10000 heating
BTU Rating (DOE SACC)
9000 cooling/10000 heating
Built-in Heater
Yes
Color Family
White
Coverage Area (Square Feet)
Up to 400
Depth in Inches
Outdoor: 11.93 Indoor: 7.44
DOE SACC BTU Rating
9000 cooling/10000 heating
EER
14
Height in Inches
Outdoor: 21.85 Indoor: 11.69
Mechanical Control Panel
No
Noise Level (decibels)
Outdoor: 54 Indoor: 39.5/33.5/24
Number of Cooling Speeds
3
Programmable
Yes
Remote Control Included
Yes
Series or Collection
5th Gen Series
Shipping Carton Size
Outdoor: 16.54" x 36.22" x 27.56" Indoor: 16.34" x 36.02" x 14.37"
Shipping Carton Weight (Lbs)
Outdoor: 83.11 Indoor: 35.49
Suggested Room Size (sq. ft.)
Up to 400
True Color
White
Voltage-volts
115
Warranty Information
Limited Warranty
Weight (lbs.)
Outdoor: 65.48 Indoor: 24.91
Width in Inches
Outdoor: 30.12 Indoor: 31.57
WiFi Capable
Yes
