Out of stock

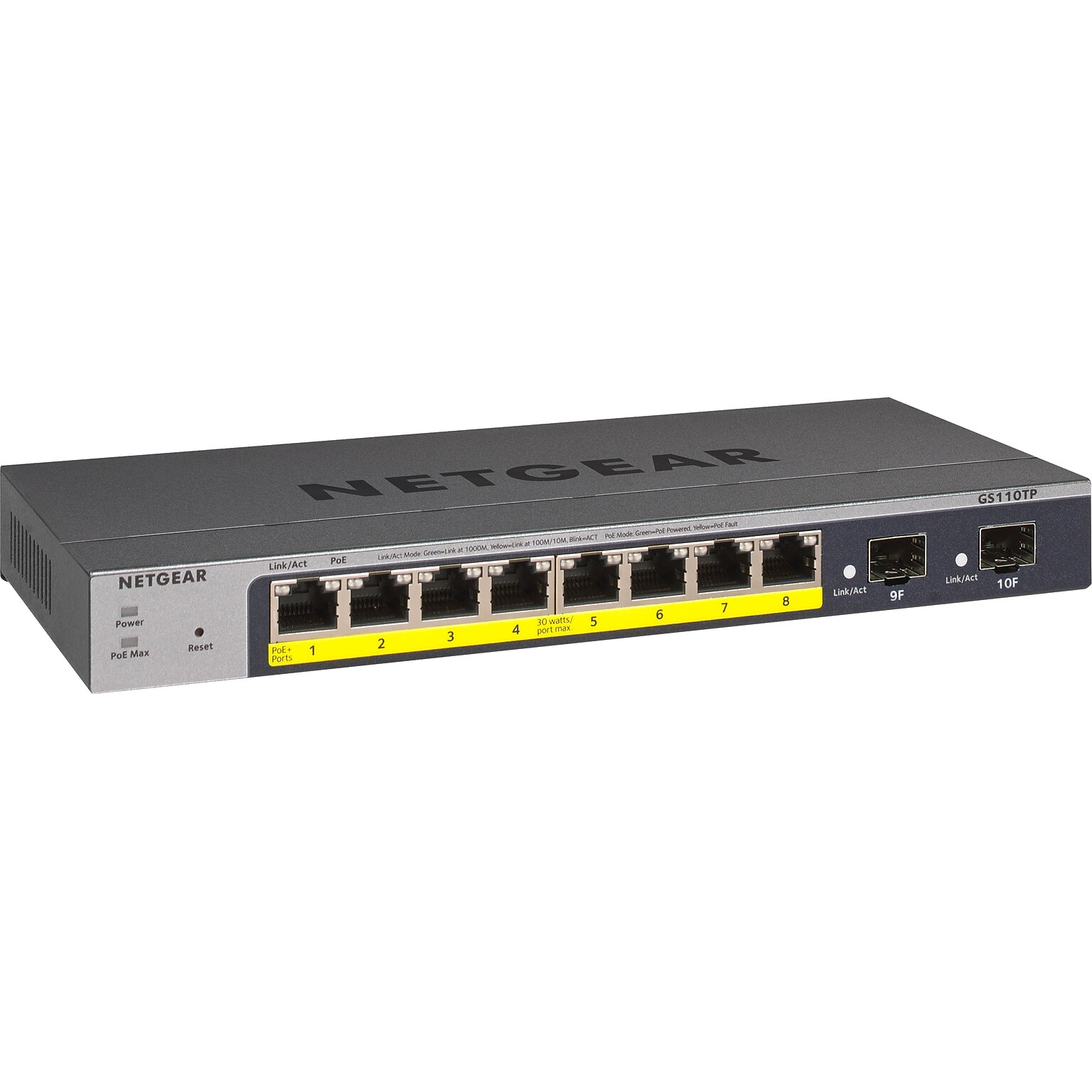

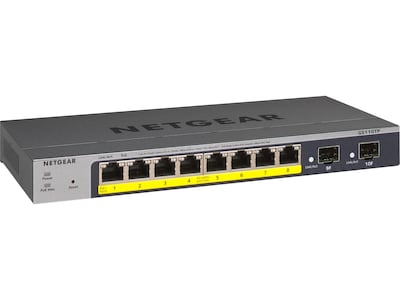

Netgear Smart Managed Pro 8-Port Gigabit Ethernet Smart Switch (GS110TP-300NAS)
Item #:
901-IM16AF039
Model #:
GS110TP-300NAS
Brand:
Netgear
4.5
(12 reviews)
Item #:
901-IM16AF039
Product details
View all details
- Smart Gigabit Ethernet switch with cloud management provides LAN access for eight users
- Eight 10/100/1000BASE-T RJ45 ports and two dedicated 1000BASE-X SFP fiber ports
- Easy to manage via web-based management GUI or Smart Control Center
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Try FREE for 60 days
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item.
Product details
Reviews
Address Database Size
Brand
Depth in Inches
Ethernet Number of Ports
Full-Duplex
Gaming
Height in Inches
LACP
Layer
Max. Data Transfer Rate (Mbps)
Network Management Type
Number of Ethernet Ports
Performance Class
Power Over Ethernet
SNMP
Quality of Service
Switch Form Factor
VLAN Support
Warranty Information
Auto-Detecting
Auto-Sensing
Buffer Memory
Data Rate Performances
Data Transfer Rate
Data Transfer Rate (Gbps)
Data Transfer Rate (Mbps)
Amperage (amps)
Gigabit Ethernet Uplink
Input Voltage
Jumbo Frame
Module Support
Port Mirroring
Power Supply
Protocols
Series or Collection
Stackable
True Color
Weight (lbs.)
Width in Inches
Wireless Connectivity
$184.99 each
8000
Netgear
4
7 to 8
Yes
Non Gaming
1.1
Yes
3
More than 3000
Smart Switch
8
Gigabit Ethernet
v1, v2c, v3
Yes
Yes
Desktop, wall mountable
Yes
Limited Lifetime Warranty
N/A
N/A
N/A
20 Gbps
N/A
20
1.25
N/A
2 x 1000Base-X - SFP
54VDC
10240 Bytes
N/A
Many-to-one port mirroring
External DC 54V 1.25A power adapter
N/A
Smart Managed Pro
N/A
N/A
1.34
9.3
N/A
8000
TP-LINK
4.9
7 to 8
N/A
Non Gaming
1
Yes
2
More than 3000
Smart Switch
8
Gigabit Ethernet
Yes
N/A
Yes
Desktop
Yes
Limited Lifetime Warranty
N/A
N/A
4MB
10/100/1000Mbps
10/100/1000Mbps
N/A
N/A
N/A
N/A
220VAC
9KB
N/A
Yes
External Power Adapter
IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q
Jetstream
Non-Stackable
Black
N/A
8.2
No
N/A
Netgear
4
11 to 20
Yes
Non Gaming
1.1
No
3
1000 - 1499
Smart Switch
15
Gigabit Ethernet
Yes
N/A
Yes
Desktop, wall mountable
Yes
5 Year
Yes
Yes
N/A
10/100/1000Mbps
1000
1
1000
N/A
1 SFP Slot
120 V AC
Yes
Twisted pair
N/A
Power adapter
VLAN, QoS, IGMP Snooping, DoS Prevention, 802.3af/at/az standards
N/A
Non-Stackable
N/A
1.95
11.3
No
N/A
Netgear
4
11 to 20
Yes
Non Gaming
1.1
No
3
1000 - 1499
Smart Switch
15
Gigabit Ethernet
Yes
N/A
Yes
Desktop, wall mountable
Yes
5 Year
Yes
Yes
N/A
10/100/1000Mbps
1000
1
1000
N/A
1 SFP Slot
120 V AC
Yes
Twisted pair
N/A
Power adapter
VLAN, QoS, IGMP Snooping, DoS Prevention, 802.3af/at/az standards
N/A
Non-Stackable
N/A
1.95
11.3
No
N/A
Netgear
4
5 to 6
Yes
Non Gaming
1.1
No
2
1000 - 1499
Smart Switch
5
Gigabit Ethernet
Yes
N/A
Yes
Desktop, wall mountable
Yes
5 Year
Yes
Yes
N/A
10/100/1000Mbps
1000
1
1000
N/A
N/A
120 V AC
Yes
Twisted pair
N/A
Power Adapter
VLAN, QoS, IGMP Snooping, DoS Prevention
N/A
Non-Stackable
N/A
0.86
6.2
No
Description
The GS110TPv3 eight-port Gigabit Ethernet Smart Managed Pro switch provides a great value, with configurable L2 network features like VLAN and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such as Layer 3 static routing, IPv6 management, ACL, DiffServ QoS, LACP link aggregation and spanning tree will satisfy even the most advanced small business networks. Remote/cloud management capability with NETGEAR Insight. By activating the NETGEAR Insight cloud management, the users will enable fundamental management features allowing businesses to have simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.
- Smart Gigabit Ethernet switch with cloud management provides LAN access for eight users
- Eight 10/100/1000BASE-T RJ45 ports and two dedicated 1000BASE-X SFP fiber ports
- Easy to manage via web-based management GUI or Smart Control Center
- Bandwidth: 20Gb/s
- Dimensions: 1.1"H x 9.3"W x 4"D
- 69.5W maximum power consumption (with all ports used, full PoE, line-rate traffic); 15.1W maximum power consumption (with all ports used, line-rate traffic); 4.3W minimum power consumption (link-down standby); features IEEE 802.3az for maximum power savings
- Fanless design allows for silent operation, great for deployment in noise-sensitive environments
- Features VESA holes for desktop and wall-mounting
- Flexible and cost-effective solution for SMB data, voice, and video converged network
- 55W PoE budget is available across eight Gigabit PoE+ (802.3at/802.3af) ports
- Layer 3 static routing with 32 routes (IPv4) for inter-VLAN local routing
- Advanced VLAN support for better network segmentation
- IGMP Snooping and Querier for multicast optimization
- Auto DoS prevention
- RMON and SNMP v1, v2c, v3 remote monitoring
- L2/L3/L4 access control lists for granular network access control including 802.1x port authentication
- Advanced QoS for traffic prioritization including port-based, 802.1p, and L2/L3/L4 DSCP-based
- Advanced per-port PoE controls for remote power management of PoE connected devices including operation scheduling
- Remote/cloud management capability with NETGEAR Insight app
- Lifetime manufacturer limited warranty; 2-year manufacturer limited warranty on power adapter
Specifications
Address Database Size
8000
Amperage (amps)
1.25
Brand
Netgear
Data Rate Performances
20 Gbps
Data Transfer Rate (Gbps)
20
Depth in Inches
4
Ethernet Number of Ports
7 to 8
Full-Duplex
Yes
Gaming
Non Gaming
Gigabit Ethernet Uplink
2 x 1000Base-X - SFP
Height in Inches
1.1
Input Voltage
54VDC
Jumbo Frame
10240 Bytes
LACP
Yes
Layer
3
Max. Data Transfer Rate (Mbps)
More than 3000
Network Management Type
Smart Switch
Number of Ethernet Ports
8
Performance Class
Gigabit Ethernet
Port Mirroring
Many-to-one port mirroring
Power Over Ethernet
Yes
Power Supply
External DC 54V 1.25A power adapter
Quality of Service
Yes
Series or Collection
Smart Managed Pro
SNMP
v1, v2c, v3
Switch Form Factor
Desktop, wall mountable
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
1.34
Width in Inches
9.3
