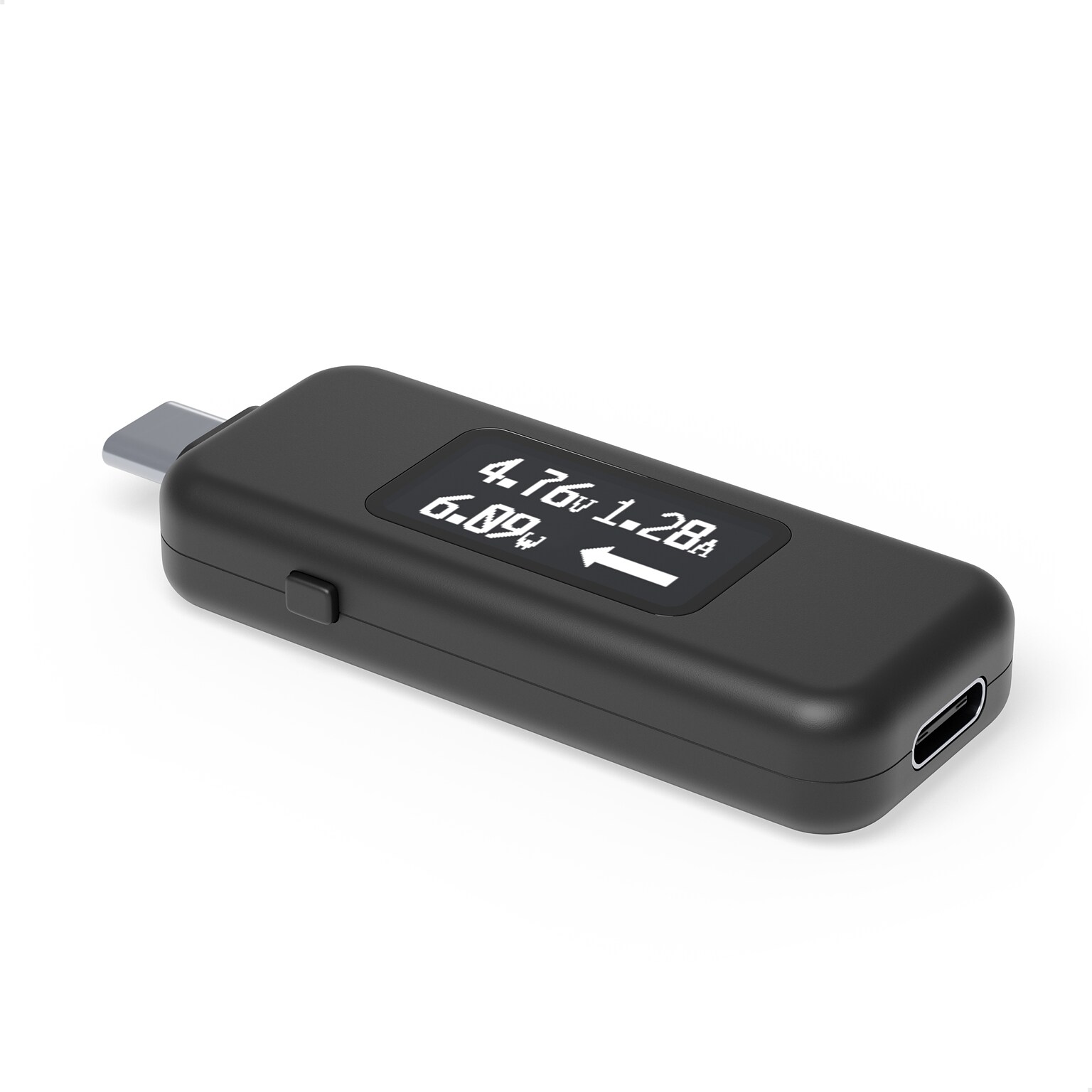

Plugable USB-C Power Meter Tester (USBC-VAMETER3)
Item #:
901-IM107UF66
Model #:
USBC-VAMETER3
Brand:
Plugable
Not yet rated. Be the first to
Write a review!
$44.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Plugable USB-C Power Meter Tester (USBC-VAMETER3)
Limited quantity available: 3 remaining
Description
Plugable USB-C Power Meter Tester for Monitoring USB-C Connections up to 240W Digital Multimeter Tester for USB-C Cables, Laptops, Phones, Chargers - Driverless
For a multimeter, the Plugable USB-C Amperage and Voltage Tester (USBC-VAMETER3) manages to fit a lot of useful features into a sturdy little package. About the size of a USB flash drive, this bidirectional USB tester allows for full USB data passthrough while it monitors USB-C power and charging, measures voltage and amperage, even visualizes the directional flow of electrical current–all in real time.\nConnect the USBC-VAMETER3 inline between a USB-C host system like a laptop, tablet, or cell phone and a charger to use it as a USB voltage meter or power consumption meter. An updated OLED screen means a brighter and easier-to-read display in any lighting conditions, and a new orientation button lets you flip the screen with a click.\n\nHow it works:\nThis meter is a transparent interposer–it should not interfere with the USB data (1.1 through 3.1 Gen 2), USB-C Alternate Mode video, or USB-C charging. The meter can be used in-line with USB-C docking stations, chargers, and other USB-C accessories. The meter is able to achieve this without interfering with normal USB-C operation as it only taps into the power (VBUS) and ground connections to measure values and leaves the data lines untouched.\n\nCommon uses:\nConnecting between a USB-C host system like a laptop, tablet, or cell phone and a charger to monitor charge information.\nConnecting between a USB-C host and docking station to monitor charge information.\nConnecting between a USB-C host system and a USB-C bus powered accessory like an external hard drive, flash drive, etc to measure power draw of a device.\nTesting for USB-C port spec compliance such as a VBUS hot condition, voltage drop under load, etc.\n\nImportant notes:\nThis meter is not meant to replace professional USB-C test equipment, it is designed for quick/easy measurements for users of any skill level.\nNot compatible with Intel Thunderbolt 3 devices.\nSpecifications:\nMeter is bidirectional and can be connected in any direction\nSupports 4.5-50V, 50mA-6.5A operating range\nSupport USB-PD R3.1 Extended Power Range (101W-240W)\nSupports all USB data (1.1 through 3.1 Gen 2)

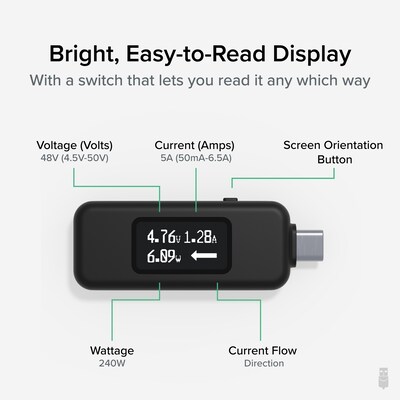

- At a Glance - USB C Tester monitors USB-C power and charging up to 240W. Measure voltage and amperage. Visualize the directional flow of electrical current. Updated OLED display is brighter and easier to read. New orientation button lets you flip the screen 180 degrees
- Bidirectional - USB power meter can be connected in either orientation, allowing for the full range of USB Extended Power Range (EPR) voltage from 5 to 48V (4.5V-50V, 50mA-6.5A operating range)
- Broad USB Support - Used as a data and power quality meter, device allows USB data pass through, USB-C Alt Mode video, USB-C charging. Use USB-C tester with USB-C docking stations, chargers, accessories, etc. Not compatible with Thunderbolt 3 devices
- Small and Tough - Small enough to go anywhere you need a USB C voltage meter. Even fits most phones and tablets without removing protective case. Strengthened USB-C connections ensure it's sturdy enough to be your go-to USB C power tester
- Warranty and Support - Questions only an expert can answer" When you contact our support team, you’re connecting with the engineers who design our devices. Every Plugable product is backed by our Seattle-based support team–even before purchase, and a 2-year limited parts and labor warranty after purchase
Specifications
Brand
Plugable
Connector, Port or Interface Type(s)
USB C

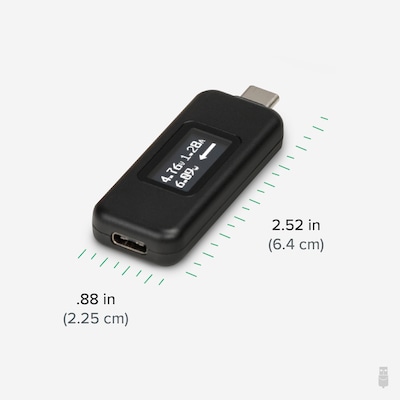

Depth in Inches
2.5
Display
allows USB data pass through, USB-C Alt Mode video, USB-C charging. Use USB-C tester with USB-C docking stations, chargers, accessories, etc. Not comp
Height in Inches
0.5
Network Tool Type
Power Supply Tester
Selling Quantity
1
Selling Quantity (UOM)
Box
True Color
Black
Used For
USB C Tester monitors USB-C power and charging up to 240W. Measure voltage and amperage.
Weight (lbs.)
0.4
Width in Inches
0.9
