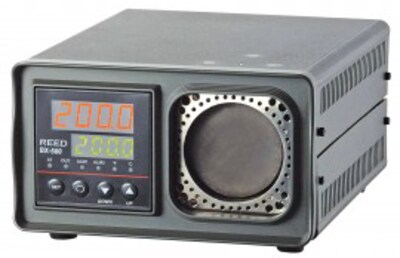

Reed Instruments BX-500 Digital Infrared Thermometer Calibrator (BX-500)
$1,441.99
Per each
Reed Instruments BX-500 Digital Infrared Thermometer Calibrator (BX-500)
Item #:
901-2313889
Model #:
BX-500
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$1,441.99
Per each
Want an extra discount today, and every day? Start your free trial.
Reed Instruments BX-500 Digital Infrared Thermometer Calibrator (BX-500)
Limited quantity available: 11 remaining
Description
The Bx -500 is capable of calibrating non-contact infrared thermometers up to 932 degree f (500 degree C).
- Simply set the desired temperature in increments of 0.1, wait for the calibrator to attain equilibrium, point the infrared thermometer at the target and compare measurements
- For calibrating non-contact temperature instruments (infrared thermometers, pyrometers and thermal imagers)
- Wide aperture compensates for optical infrared thermometer variations
- Contact RTD reference well located directly behind the blackbody target to assure accurate results
- Wide field of view to compensate for optical variations in individual infrared thermometers
- 4.5"H x 9.25"W x 7"D
- Black
- Simply set the desired temperature in increments of 0.1degree , wait for the calibrator to attain equilibrium, point the infrared thermometer at the target and measure radiated energy
- Temperature controlled black-body target with a diameter of 2.25 inches (57mm)
- Contact RTD reference well is located directly behind the blackbody target to assure even higher accuracies of + or -0.1degree C
- Temperature range of 122.0 to 932.0degree f (50.0 to 500.0degree C)
- Resolution of 0.1degree f (0.1degree C)
- Accuracy of + or -1.6degree f (+ or -0.8degree C) at Greater than or equal to 212degree f (100degree C), + or -3.2degree f (+ or -1.6degree C) at 212 to 392degree f (100 to Greater than or equal to 200degree C) or + or -5.6degree f (+ or -2.8degree C) at
- Stability of + or -0.2degree f (+ or -0.1degree C) at Greater than or equal to 212degree f (100degree C), + or -0.4degree f (+ or -0.2degree C) at 212 to 662degree f (100 to Greater than or equal to 350degree C) or + or -0.8degree f (+ or -0.4degree C) at
- 45minutes cooling time to 122degree f (100degree C)
- 40 minutes heating time to maximum temperature
Specifications
Brand
Reed Instruments
Depth in Inches
7
Digital or Analog
Digital
Environmental Monitoring Type
Thermometer
Height in Inches
4.5
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
BX-500
True Color
Black
Width in Inches
9.25
