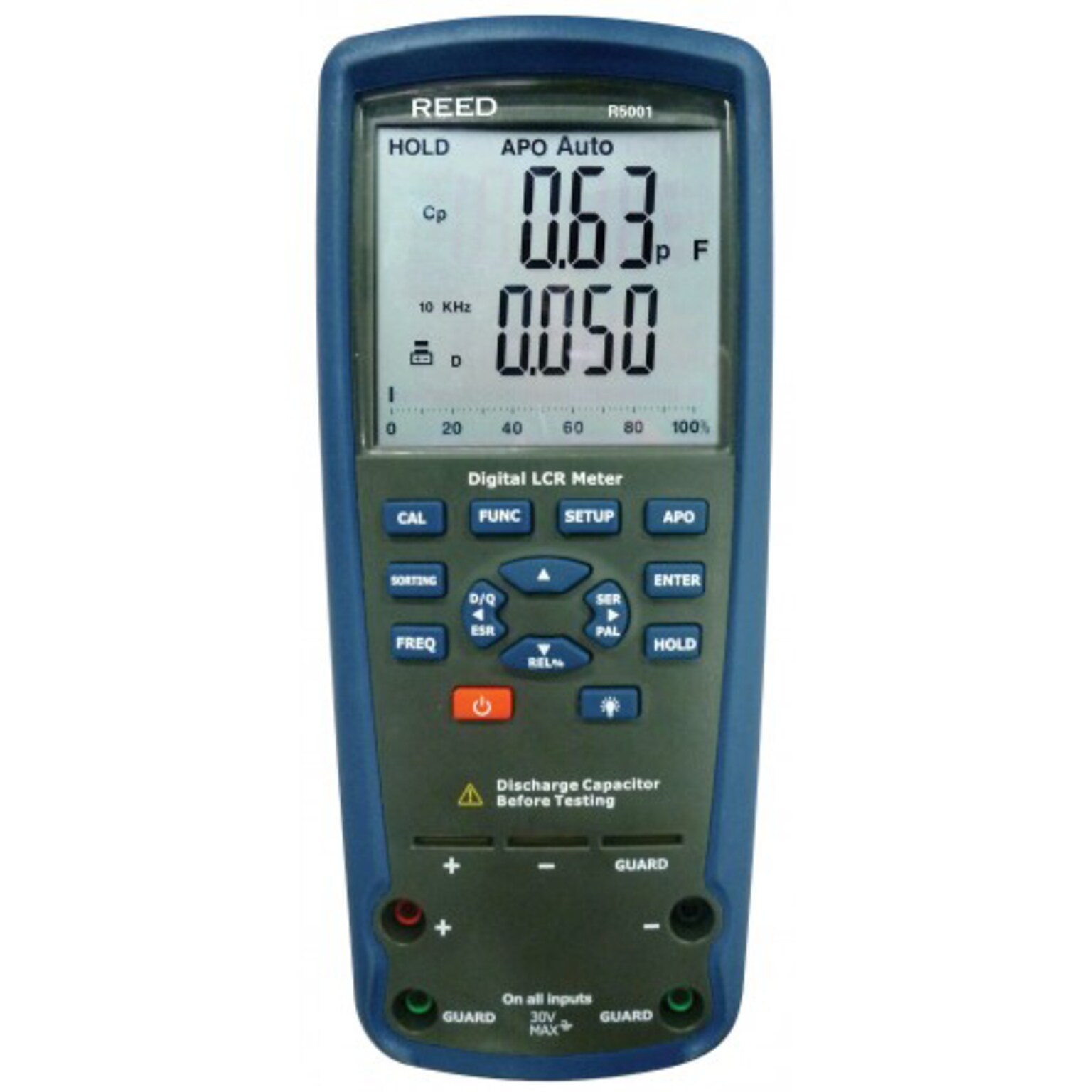

Reed Instruments R5001 Digital Passive Component LCR Meter, Blue (R5001)
$329.00
Per each
Reed Instruments R5001 Digital Passive Component LCR Meter, Blue (R5001)
Item #:
901-2313810
Model #:
R5001
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
New
$329.00
Per each
Want an extra discount today, and every day? Start your free trial.
Reed Instruments R5001 Digital Passive Component LCR Meter, Blue (R5001)
Extended delivery time
Estimated to ship between 10/2/2025 - 10/3/2025
Description
L, C, R measurements with test frequency up to 100kHz
This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle and equivalent series/parallel resistance (ESR or Rp). The R5001 features a large easy-to-read LCD display with backlight, and data hold/relative functions.
- Measures inductance, capacitance and resistance
- Auto ranging for AC impedance and DE resistance measurement
- Auto LCR smart check and measurement
- Series/Parallel modes
- Ls/Lp/Cp with D/Q ESR parameters
- Support DCR mode 200 to 200M"
- High accuracy with 4 / 5 terminal Kelvin measurement
- Large backlit dual LCD display
- 10kHz testing frequency and up to 100kHz output frequency
- Data hold and relative functions
- Low battery indication with auto power off
- 8.7"H x 3.8"W x 2.4"D
- Blue
- Inductance range 2000.0 H, 20.000/200.0/2000.0mH, 20.000/200.00/2000.0H
- Inductance resolution of 0.1/1 H, 0.01/0.1/1mH, 0.01/1H
- Capacitance range of 2000.0pf, 20.000/200.00/2000.0nf, 20.00/200.00/2000 f
- Capacitance resolution of 0.01/0.1/1pf, 0.01/0.1/1nf, 0.1 f
- Resistance range 20.000/200.00ohm, , 2.0000/20.000/200.00kohm, 2.0000/20.000/200.0Mohm
- Includes test leads and batteries
- Includes test leads and batteries
Specifications
Brand
Reed Instruments
Depth in Inches
2.4
Digital or Analog
digital
Environmental Monitoring Type
Accessory
Height in Inches
8.7
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
R5001
True Color
Blue
Width in Inches
3.8
