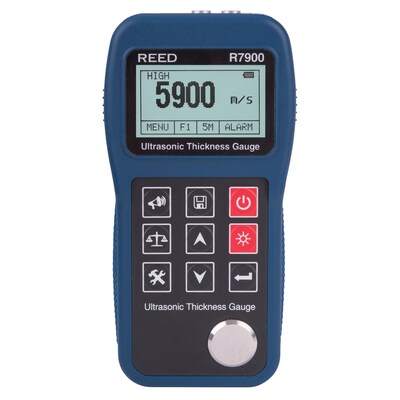

Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
$936.99
Per each
Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
Item #:
901-2313787
Model #:
R7900
Brand:
Reed Instruments
Not yet rated. Be the first to
Write a review!
$936.99
Per each
Want an extra discount today, and every day? Start your free trial.
Reed Instruments R7900 Digital Ultrasonic Thickness Gauge, Blue (R7900)
Limited quantity available: 9 remaining
Description
Internal memory capable or storing up to 500 readings, user adjustable high/low alarms
This ultrasonic thickness gauge has a large backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements.
- Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
- Large, easy-to-read backlit LCD display
- User selectable unit of measure (in/mm)
- Internal memory stores up to 500 measurements
- Displays sound velocity at the touch of a button
- Zero adjustment button
- User adjustable High/Low alarms
- Built-in two-point calibration function
- Auto sleep, shut off and low battery indicator
- 5.0" (h) x 3" (w) x 1.2" (d)
- Blue
- Measurement range of 0.65 to 400.0 millimeters (0.03 to 15.7 inches)
- Sound velocity range of 0.039 to 0.394 in/ s (1000 to 9999 m/s)
- Accuracy of + or -0.04mm at less than 10mm, + or -(0.1% thickness + 0.04mm) at less than 100mm and + or -(0.3% at more than 100mm
- 4 measurements per second for a single point measurement
- Can store up to 5 files, up to 100 values for each file, for a total of 500 logs
- Powered by 2 AA batteries
- Includes a transducer, a couplant, batteries and a carrying case
Specifications
Brand
Reed Instruments
Depth in Inches
1.2
Digital or Analog
Digital
Environmental Monitoring Type
Accessory
Height in Inches
5
Selling Quantity
1
Selling Quantity (UOM)
Each
Series or Collection
R7900
True Color
Blue
Width in Inches
3
