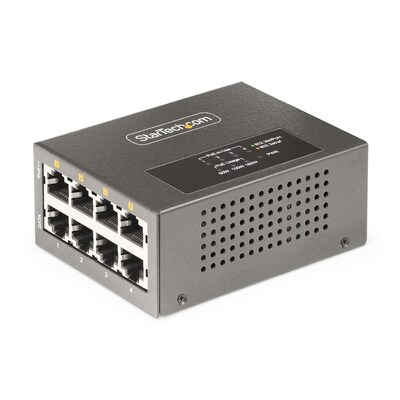

StarTech 4-Port Multi-Gigabit PoE++ Injector Unmanaged, 5/2.5/1G Ethernet, 160 Watts Power Budget (AS445CPOEINJE)
Item #:
901-24590763
Model #:
AS445CPOEINJE
Brand:
StarTech
Not yet rated. Be the first to
Write a review!
Out of stock
$360.99
Per each
Customers also viewed
Startech USB150WN1X1 Wireless N Network Adapter
Item #: 901-IM1LB0001IN
StarTech USB150WN1X1 Wireless N Network Adapter
Item #: 901-2755571
Netgear Nighthawk AX6600 Tri Band MU-MIMO Gaming Router, Black (RAX70-100NAS)
Item #: 901-24474473
Startech 300WN2X2C Mini Wireless-N Network Adapter
Item #: 901-IM1XQ5297IN
Startech USB 3.0 to Gigabit Ethernet NIC Network Adapter
Item #: 901-IM1RL7413IN
Netgear Nighthawk AX2700 Dual Band Router, Black (CAX30S-100NAS)
Item #: 901-24487420
Startech SV231HDMIUA HDMI KVM Switch With Audio; 2 Ports
Item #: 901-M1CN1868ING
Startech USB31000SPTB USB 3.0 to Gigabit Ethernet Adapter NIC With USB-Port; Black
Item #: 901-RZ4408ING
Startech USBBT2EDR4 33' Mini USB Bluetooth 4.0 Adapter; Black
Item #: 901-IM1VM2011IN
StarTech AX2400 Tri Band PCIe Wireless Adapter (PAX2235-WIFI-6E-CARD)
Item #: 901-24597624
StarTech USB DisplayPort 4-Port KVM Switch (D86A2-4-PORT-8K-KVM)
Item #: 901-24597704
Description
This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions. Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.
- 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection

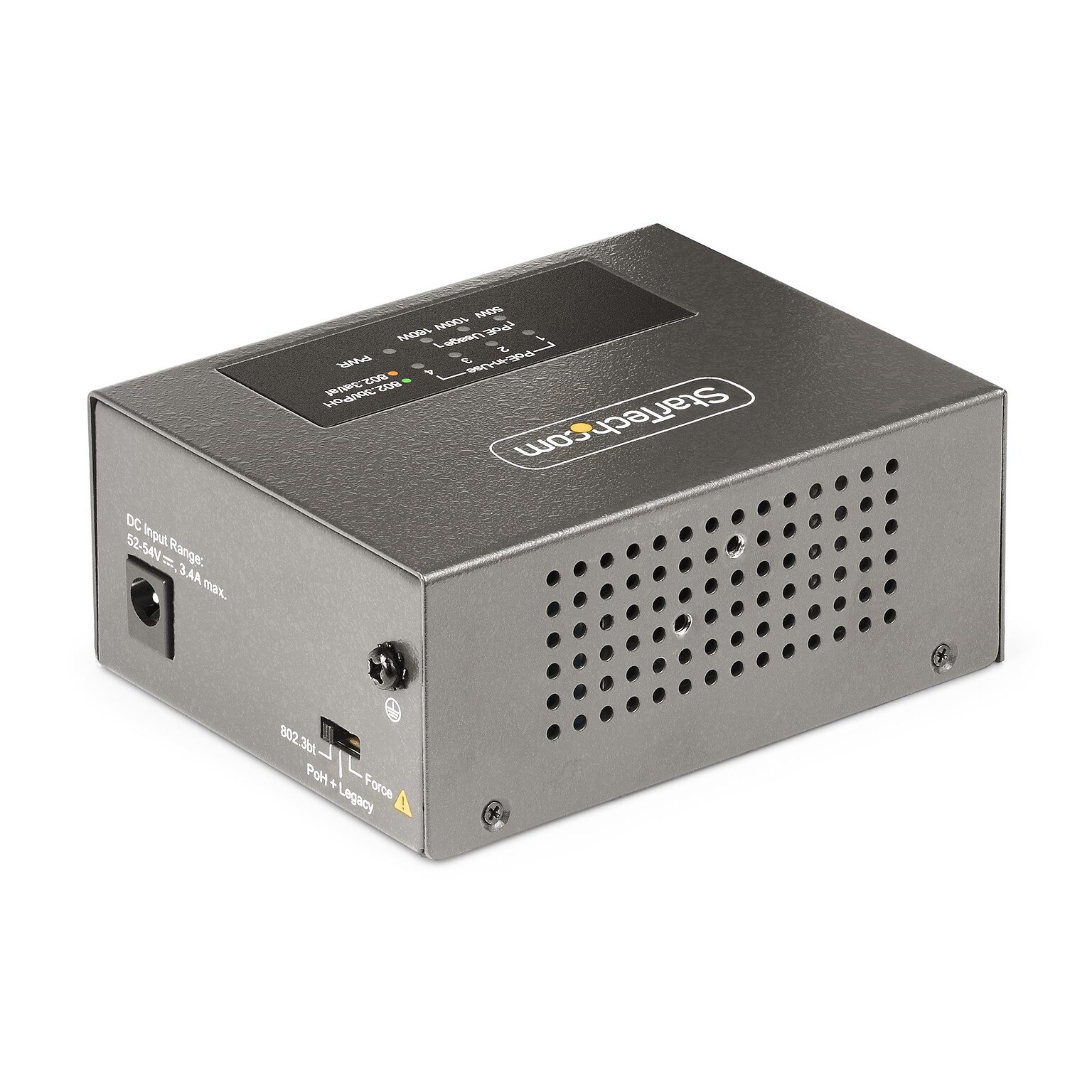

- SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts
- MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment
- RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports
- STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system
Specifications
Brand
StarTech
Data Rate Performances
1 Gbps
Ethernet Number of Ports
4
Gaming
Non Gaming
Max. Data Transfer Rate (Mbps)
100 or less
Network Management Type
Unmanaged Switch
Performance Class
Gigabit Ethernet
Power Over Ethernet
No
Stackable
Non-Stackable
Switch Form Factor
Desktop
True Color
Silver
Warranty Information
1 Year
