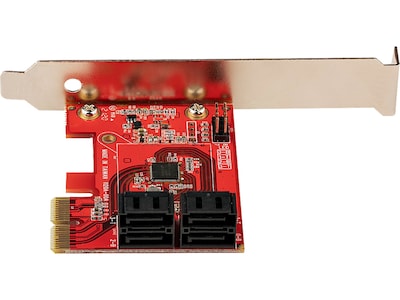

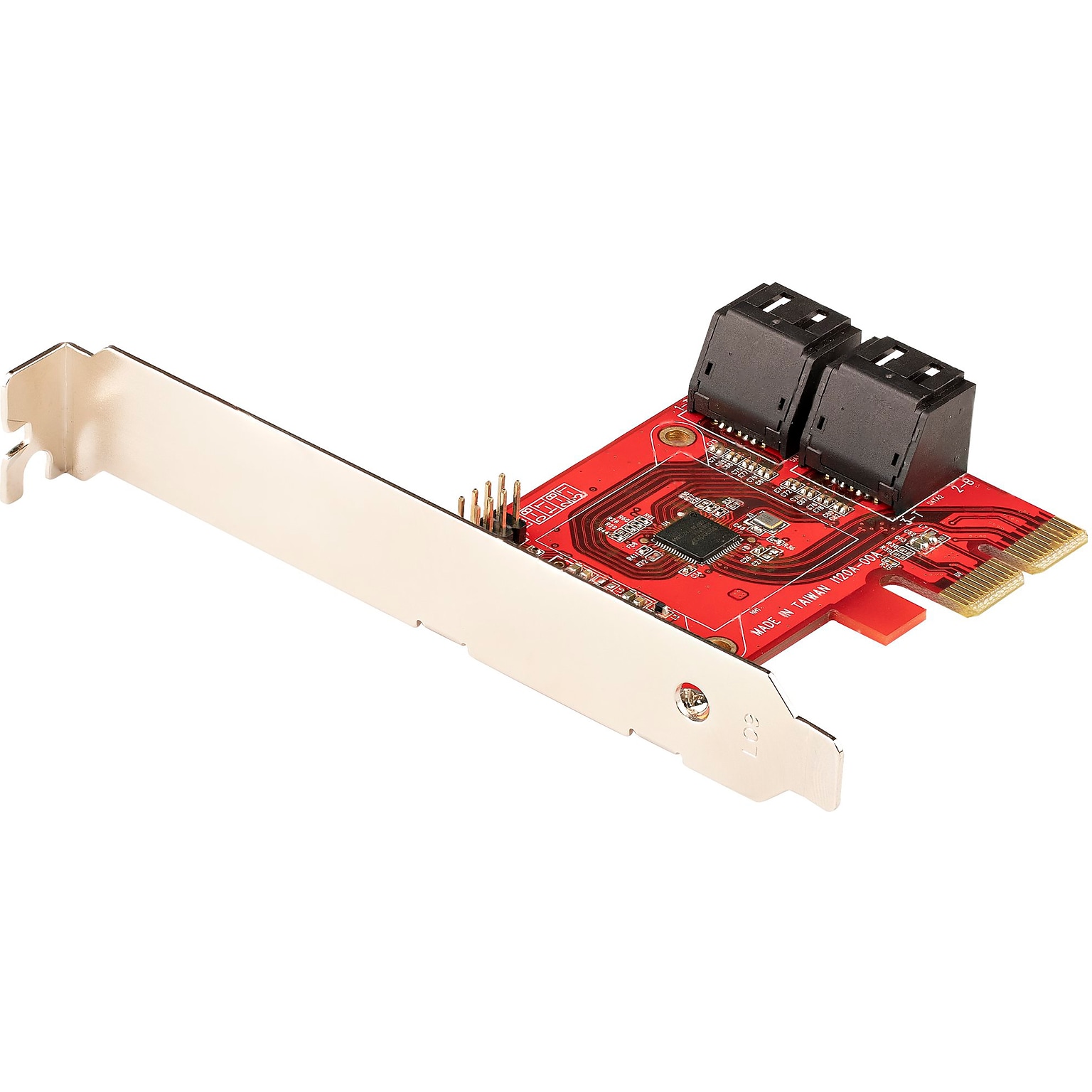

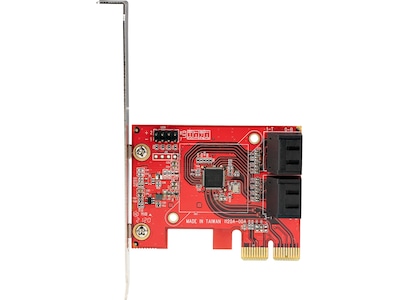

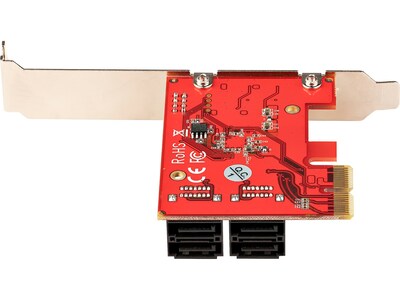

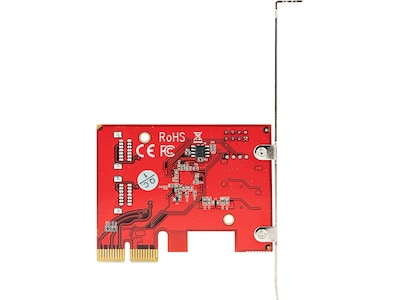

StarTech 4-port SATA III Controller (4P6G-PCIE-SATA-CARD)
Item #:
901-IM19ZX023
Model #:
4P6G-PCIE-SATA-
Brand:
StarTech
5
(1 reviews)
Item #:
901-IM19ZX023
$138.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
StarTech 4-port SATA III Controller (4P6G-PCIE-SATA-CARD)
Limited quantity available: 6 remaining
Description
This four-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps hard drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 specifications.
- Add four SATA III 6Gbps ports to your desktop computer or server using a PCIe x2 slot to connect SATA drives (HDD/SSD)
- Enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps
- The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately)
- Widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above)
- Supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately)

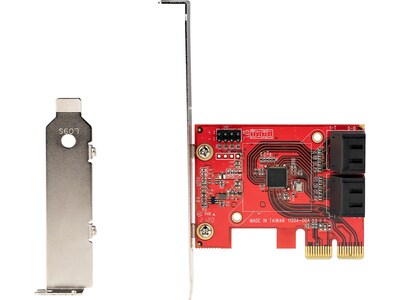

- Features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included
- Manage your drives and built RAID arrays with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux)
- 2-year manufacturer limited warranty
Specifications
Brand
StarTech
Card Type
Expansion
Connector, Port or Interface Type(s)
1 - PCI Express x2, 4 - SATA (7 pin, Data)
Data Transfer Rate (Gbps)
6
Depth in Inches
2.2
Height in Inches
0.6
Host Interface
PCI Express 4.0
OS Compatibility
Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above)
True Color
Red
Warranty Information
2 Year
Width in Inches
2.8
