StarTech Rack PDU 120V Rack Power Distribution Unit, 12-Outlet, 1U Rack-Mount (1215B8H-RACK-PDU-RA)
$95.99
Per each
StarTech Rack PDU 120V Rack Power Distribution Unit, 12-Outlet, 1U Rack-Mount (1215B8H-RACK-PDU-RA)
Item #:
901-IM1540E32
Model #:
1215B8H-RACK-PD
Brand:
StarTech
Not yet rated. Be the first to
Write a review!
New
$95.99
Per each
Want an extra discount today, and every day? Start your free trial.
StarTech Rack PDU 120V Rack Power Distribution Unit, 12-Outlet, 1U Rack-Mount (1215B8H-RACK-PDU-RA)
Description
Power multiple devices efficiently with this 1U 12-Outlet Rackmount PDU, designed for server rooms, AV environments, and IT deployments requiring organized and reliable power distribution. It features twelve NEMA 5-15 right-angle outlets that provide extra spacing to accommodate bulky power adapters without blocking adjacent ports. With six outlets on the front and six on the rear, the unit supports flexible equipment placement while maintaining clean cabling. A built-in 15A circuit breaker protects connected hardware from overloads, while the illuminated, covered power switch prevents accidental shutoff. The 8 ft (2.4 m) power cord provides extended reach, and the included 4-way mounting brackets allow horizontal or vertical installation in standard 19" racks at least 4" deep. Constructed from rugged SPCC steel, this TAA-compliant PDU delivers dependable performance for always-on IT environments.

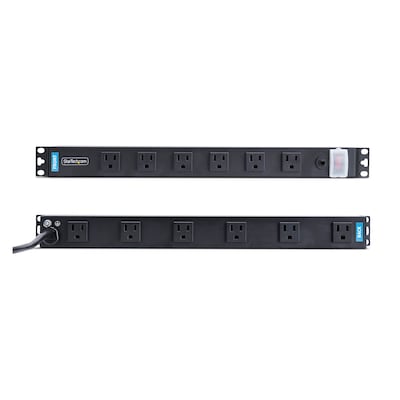

- Runs as a single-phase rack power distribution unit.
- Accepts 120V AC input for standard IT deployments.
- Supports up to 15A of output current.
- Fits a 1U rack footprint for compact mounting.
- Uses a NEMA 5-15 input plug for power delivery.
- Provides 12 wide-spaced NEMA 5-15 outlets.
- Offers 12-outlet capacity for dense rack loads.
- Includes a 7.9 ft cord for flexible positioning.

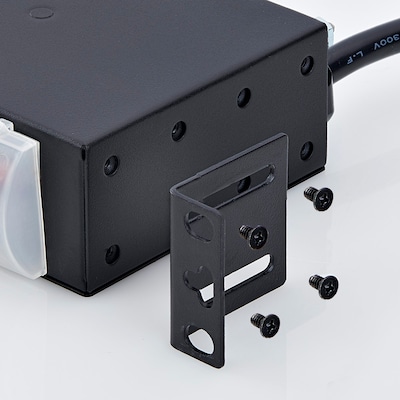

- Comes with brackets, screws, washers, and guide.
- Meets UL 1363 and EIA/ECA-310-E standards.
- 2-year manufacturer warranty.
Specifications
Brand
StarTech
Cable Length (ft.)
7.9
Depth in Inches
3.7
Height in Inches
1.7
Hot Swappable
No
Included Components

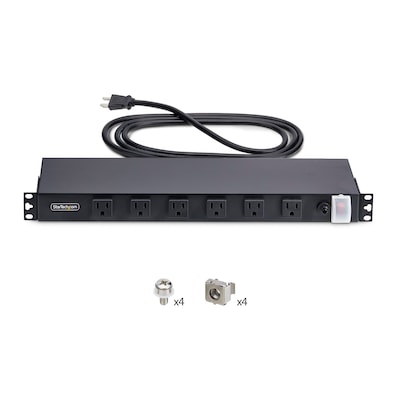

Rack-mount PDU, 2 pre-installed brackets, 4 M5 cage nuts, 4 M5×12mm rack screws, 4 plastic washers, 4 metal washers, documentation
Input Connector
NEMA 5-15 Plug
Input Current
15A
Input Voltage
120V
Load Capacity
1500 VA
Outlet Connectors
12 × NEMA 5-15
Outlet Count
12
Output Voltage
120V
Overload Protection
15A resettable circuit breaker
Phase
Single-Phase
Power Distribution Unit Type
Rack Power
Power Supply
Ac Powered
Rack Units
1U
True Color
Black
Warranty Information
2 Year
Weight (lbs.)
3.57
Width in Inches
18.8
