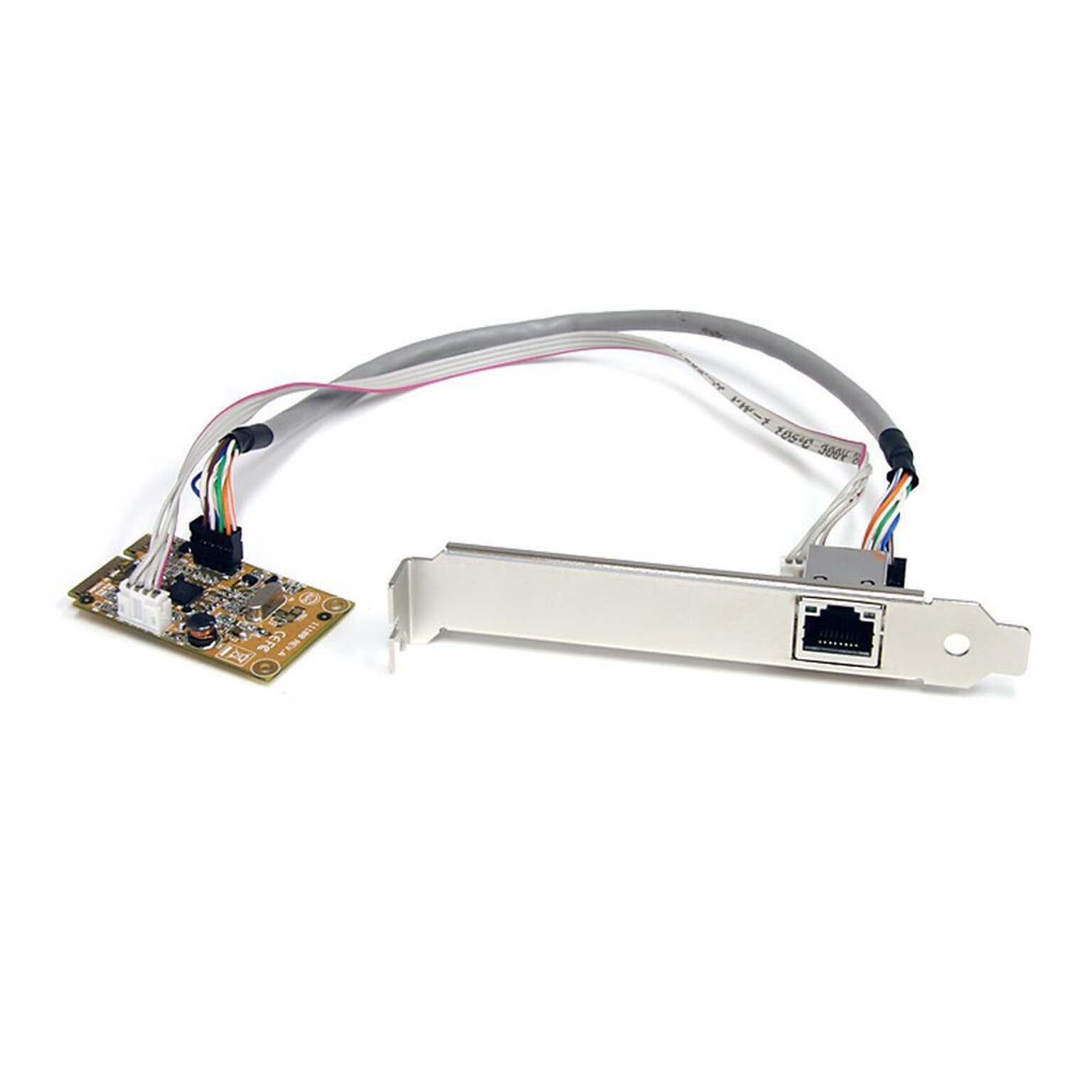

Startech ST1000SMPEX 1 Port Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
$73.99
Per each
Startech ST1000SMPEX 1 Port Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Item #:
901-NB8680ING
Model #:
NB8680
Brand:
StarTech
(1 reviews)
Item #:
901-NB8680ING
Loading...
$73.99
Per each
Description
Startech.com® 1 Port mini PCI express gigabit Ethernet network adapter NIC card adds 1000 Mbps network connectivity to a mini PCI express enabled computer system and is perfect for small form factor or embedded systems.
This card supports NDIS5 checksum and large send offload feature for lower CPU utilization. Adapter card includes a low profile/half-height bracket to provide additional installation options.
- Network adapter interface: RJ45
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Compatible networks: 10/100/1000 Mbps
- Number of ports: 1
- Bus type: Mini PCI express
- Card type: Embedded
- Chipset ID: Realtek - RTL8111E
- OS compatibility: Windows 2000/ XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/8 (32/64-bit), Mac OS 10.4.x and 10.5.x, Linux and Unix
- Connector type: 1 x mini PCI express x1 (52 pin) male
- External ports: 1 x RJ-45 female
- Dimensions: 0.3"(H) x 1.2"(W) x 2"(D)
- Temperature range: 0 to 55 deg C (32 to 131 deg F), -20 to 85 deg C (-4 to 185 deg F) Humidity: 5 - 95% RH non-condensing
- LED indicators: 1 x link/activity
- Certificates and standards: CE, FCC, RoHs
- Includes: 1 x Mini PCIe card, 1 x RJ45 daughter board, 1 x low profile bracket, 1 x driver CD, 1 x instruction manual
- Weight: 0.2 oz.
- Warranty: 2 years
- PCI Express interface
- Up to 1000 MBPS
- 1 x RJ45 port
- Jumbo frame support up to 9 KB
- Crossover detection and auto-correction (auto MDIX)
- IEEE 802.1Q VLAN tagging support
- Supports wake-on-LAN (WOL) and remote wake-up support, pair swap/polarity/skew correction
- Microsoft® NDIS5 checksum offload (IPv4, TCP, UDP) and large send offload support
- Supports full and half duplex operating modes
- IEEE 802.3x full duplex flow control support
- Compliant with PCI express mini card specification 1.1
- Includes full and low profile installation brackets
Specifications
Brand
StarTech
Depth in Inches
2
Height in Inches
0.3
Network Adapter Type
Ethernet
True Color
Multicolor
Warranty Information
2-year mfg Limited warranty
Weight (lbs.)
0.1
Width in Inches
1.2
