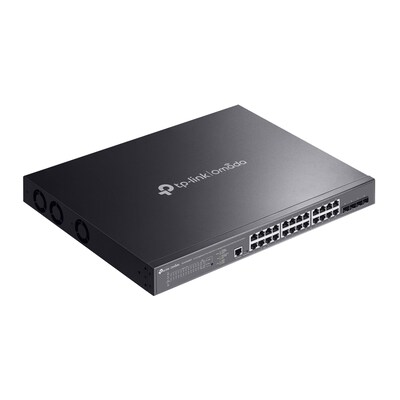

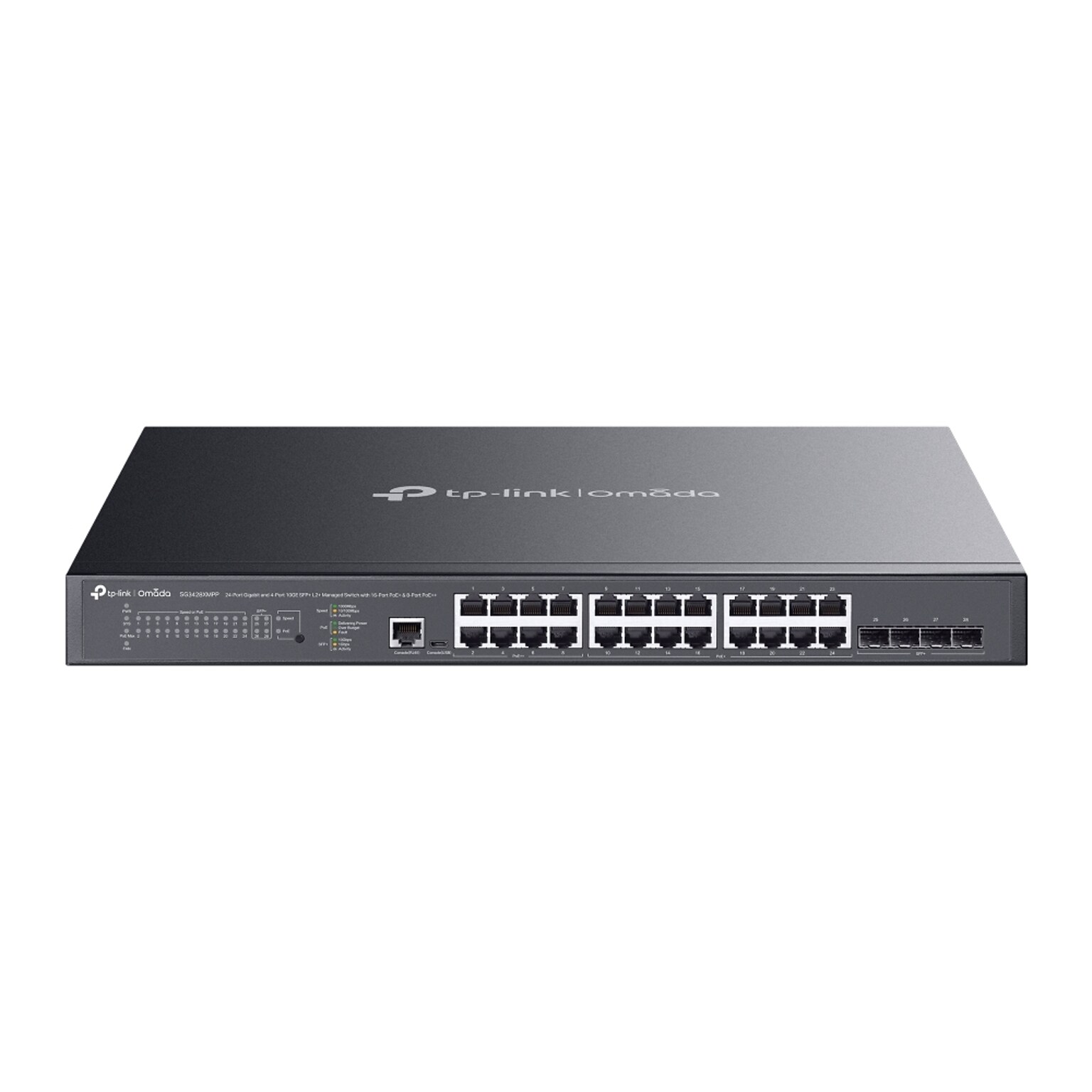

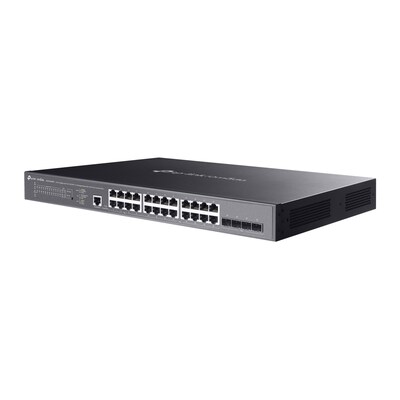

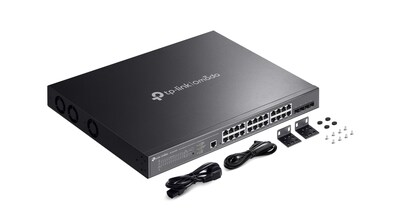

TP-Link Omada 24-Port Gigabit PoE Managed Switch, 10Gbps, Black (SG3428XMPPO)
Item #:
901-IM1NT2290
Model #:
SG3428XMPP
Brand:
TP-LINK
Not yet rated. Be the first to
Write a review!
Out of stock
$658.99
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Product details
Reviews
Address Database Size
Auto-Detecting
Auto-Sensing
Brand
Data Rate Performances
Data Transfer Rate
Data Transfer Rate (Gbps)
Data Transfer Rate (Mbps)
Depth in Inches
Ethernet Number of Ports
Full-Duplex
Gaming
Height in Inches
Jumbo Frame
LACP
Layer
Max. Data Transfer Rate (Mbps)
Module Support
Network Management Type
Number of Ethernet Ports
Performance Class
Port Mirroring
Power Over Ethernet
Quality of Service
Series or Collection
SNMP
Stackable
Switch Form Factor
True Color
VLAN Support
Warranty Information
Width in Inches
Wireless Connectivity
Amperage (amps)
Buffer Memory
Gigabit Ethernet Uplink
Input Voltage
Output Voltage
Power Supply
Protocols
$658.99 each
16000
Yes
Yes
TP-LINK
10 Gbps
10 Gbps
10
10000
13
21 to 30
Yes
Non Gaming
1.7
9KB
Yes
3
More than 3000
SFP, SFP+
Managed Switch
24
Gigabit Ethernet
Yes
Yes
Yes
Omada
v1, v2c, v3
Non-Stackable
Rack Mountable
Black
Yes
Limited Lifetime Warranty
17.3
No
N/A
12MB
N/A
100-240 V AC, 50/60 Hz
N/A
AC Power
IPv4, IPv6, DHCP, SNMP, RMON, ERPS, OAM, DDM
N/A
N/A
N/A
TP-LINK
10/100/1000Mbps
N/A
N/A
N/A
13
21 to 30
N/A
Non Gaming
1.7
9KB
Yes
N/A
1000 - 1499
N/A
Managed Switch
24
Gigabit Ethernet
Yes
Yes
Yes
Jetstream
N/A
Non-Stackable
Rack Mountable
Black
Yes
Limited Lifetime Warranty
17.3
N/A
N/A
N/A
N/A
100-240Vac
N/A
AC Power Supply
N/A
32000
Yes
Yes
TP Link
N/A
10 Gbps uplinks; 2.5 Gbps switching per RJ45 port
10
10000
7.1
11 to 20
Yes
Non Gaming
1.7
9KB
Yes
3
More than 3000
SFP, SFP+
Managed Switch
18
Multi-Gigabit
N/A
Yes
Yes
Omada
v1, v2c, v3
Non-Stackable
Rack Mountable
Black
Yes
5 Year
17.3
No
0.8
16MB
2 × 10G SFP+ uplink slots
120V AC / 230V AC
N/A
100–240V AC internal power supply
IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.3an, 802.1Q, 802.1p
32000
Yes
Yes
Ubiquiti
10 Gbps
10 Gbps
10
10000
N/A
21 to 30
Yes
Non Gaming
1.72
9216 Bytes
Yes
3
More than 3000
SFP, SFP+
Managed Switch
24
Multi-Gigabit
Yes, supports port mirroring for traffic monitoring and diagnostics
Yes
Yes
UniFi Switch Pro HD
v1, v2c, v3
Stackable
Rack Mountable
White
Yes
Limited Lifetime Warranty
17.42
No
N/A
32MB
Yes, includes 4 x 10G SFP+ uplink ports
100 – 240V AC, 50/60 Hz
54V DC on PoE++ ports
Internal AC power supply
IGMP snooping, DHCP, 802.1X, LACP, Spanning Tree Protocol, Static Routing
16000
Yes
Yes
TP Link
10/100/1000Base-T
10/100/1000 Mbps access, 10 Gbps uplink
10
10000
13
51+
Yes
Non Gaming
1.7
9KB
Yes
Yes
More than 3000
10Base-T Cat3, 4, 5 UTP/STP RJ45, 100Base-TX Cat5 UTP/STP RJ45
Managed Switch
52
Gigabit Ethernet
Supported
Yes
Yes
Omada
v1, v2c, v3
Non-Stackable
Rack Mountable
Black
Yes
Limited Warranty
17.3
No
N/A
1.5MB
4 × 10G SFP+ uplinks
100–240V AC, 50/60 Hz
N/A
AC power, 100–240V~ 50/60 Hz
STP/RSTP/MSTP; 802.1Q VLAN; IGMP/MLD snooping; DHCP Server/Relay; ARP inspection; LLDP/LLDP-MED; ERPS; sFlow; OAM; IPv4/IPv6; QoS; ACLs.
Description
Introducing the TP-Link Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++, the ultimate solution for high-performance networking. Designed to meet the demands of modern networks, this switch offers unparalleled speed, flexibility, and power delivery. With 24 Gigabit RJ45 ports, including 8 PoE++ and 16 PoE+ ports, and 4 10G SFP+ slots, this switch provides robust connectivity options for a wide range of devices. The 500W total PoE budget ensures that even the most power-hungry devices, such as PTZ HD IP cameras and smart building lighting, are supported with ease. Centralized cloud management via the Omada app or web interface allows for seamless control and monitoring of your network from anywhere. The switch also supports standalone management through web, CLI, SNMP, and RMON, offering flexibility in how you manage your network. Advanced features such as Static Routing, VLAN, ACL, QoS, IGMP Snooping, and Ethernet Ring Protection Switching (ERPS) ensure optimal network performance and reliability. The durable metal casing and rack-mountable design make it a perfect fit for both enterprise and industrial environments. Empower your network with the TP-Link Omada Managed Switch and experience the difference in speed, reliability, and power. Whether you're setting up a new network or upgrading an existing one, this switch is the ideal choice for high-performance and efficient networking.
- The TP-Link Omada switch features 24 Gigabit Ethernet ports and 4 10G SFP+ slots, providing high-performance connectivity. It is a managed switch, offering advanced network management capabilities for optimal control and efficiency.
- This switch supports Power over Ethernet (PoE) with 8 PoE++ ports delivering up to 90W each and 16 PoE+ ports delivering up to 30W each, ensuring ample power for devices like IP cameras and access points. The total PoE budget is 500W.
- With a maximum data transfer rate of 10 Gbps, this switch ensures high-speed data transmission, making it ideal for bandwidth-intensive applications and ensuring smooth network performance.
- The switch is designed for rack-mountable installation, making it suitable for both enterprise and industrial environments. Its durable metal casing ensures long-lasting performance and reliability.
- The switch supports SNMP v1, v2c, and v3, allowing for comprehensive network management and monitoring, ensuring that administrators can effectively manage and troubleshoot the network.
- Quality of Service (QoS) features are included, allowing for prioritization of network traffic to ensure that critical applications receive the necessary bandwidth for optimal performance.
- The switch offers advanced system management features, including VLAN support, ACL, IP-MAC-Port Binding, DHCP Snooping, and secure web management through HTTPS and SSH, ensuring robust network security.
- With a switching capacity of 128 Gbps and a packet forwarding rate of 95.23 Mpps, this switch ensures high throughput and efficient data handling. It supports various operational modes, including static routing and link aggregation.
- The switch has a maximum power consumption of 605.5W with 500W PD connected, and features energy-saving technologies to optimize power usage and reduce operational costs.
- The switch is CE and FCC certified, ensuring compliance with international standards for safety and performance, providing peace of mind and assurance of quality.
Specifications
Address Database Size
16000
Auto-Detecting
Yes
Auto-Sensing
Yes
Brand
TP-LINK
Buffer Memory
12MB
Data Rate Performances
10 Gbps
Data Transfer Rate
10 Gbps
Data Transfer Rate (Gbps)
10
Data Transfer Rate (Mbps)
10000
Depth in Inches
13
Ethernet Number of Ports
21 to 30
Full-Duplex
Yes
Gaming
Non Gaming
Height in Inches
1.7
Input Voltage
100-240 V AC, 50/60 Hz
Jumbo Frame
9KB
LACP
Yes
Layer
3
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
SFP, SFP+
Network Management Type
Managed Switch
Number of Ethernet Ports
24
Performance Class
Gigabit Ethernet
Port Mirroring
Yes
Power Over Ethernet
Yes
Power Supply
AC Power
Protocols
IPv4, IPv6, DHCP, SNMP, RMON, ERPS, OAM, DDM
Quality of Service
Yes
Series or Collection
Omada
SNMP
v1, v2c, v3
Stackable
Non-Stackable
Switch Form Factor
Rack Mountable
True Color
Black
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Width in Inches
17.3
Wireless Connectivity
No
