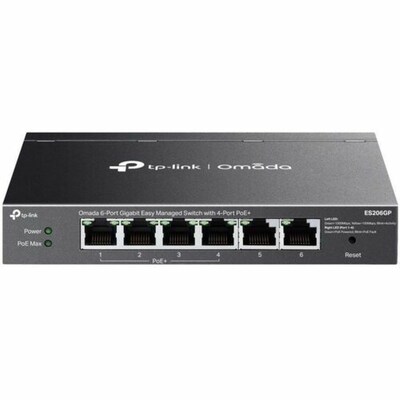

TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, Black (ES206GP)
$56.99
Per each
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, Black (ES206GP)
Item #:
901-IM1Z49473
Model #:
ES206GP
Brand:
TP Link
Not yet rated. Be the first to
Write a review!
New
$56.99
Per each
Want an extra discount today, and every day? Start your free trial.
TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, Black (ES206GP)
Limited quantity available: 8 remaining
Description
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Equipped with 6 Gigabit Ethernet ports, this device operates as a fully managed switch.
- Delivers Power over Ethernet on 4 ports with a total budget of 65W and up to 30W per port.
- Supports data transfer rates up to 1000 Mbps per port with a switching capacity of 12 Gbps.
- Designed for desktop or wall mounting, its compact fanless build suits various environments.
- Implements advanced QoS features including 8 priority queues and bandwidth control.
- Manages network traffic securely with VLANs, IGMP snooping, and loop prevention.
- Handles throughput efficiently with 8.93 Mpps forwarding rate and jumbo frame support.
- Consumes up to 76.6W under full load, with energy-saving features like fanless operation.
- Complies with CE, FCC, and RoHS certifications and IEEE networking standards.
Specifications
Address Database Size
8000
Auto-Detecting
Yes
Auto-Sensing
Yes
Brand
TP Link
Buffer Memory
4MB
Data Rate Performances
10/100/1000Mbps
Data Transfer Rate
1000 Mbps
Data Transfer Rate (Gbps)
1
Data Transfer Rate (Mbps)
1000
Depth in Inches
4.0
Ethernet Number of Ports
5 to 6
Full-Duplex
Yes
Gaming
Non Gaming
Height in Inches
1
Input Voltage
53.5 VDC
Jumbo Frame
16KB
LACP
Yes
Layer
2
Max. Data Transfer Rate (Mbps)
1000 - 1499
Module Support
Auto MDI/MDIX Crossover
Network Management Type
Managed Switch
Number of Ethernet Ports
6
Output Voltage
53.5 VDC
Performance Class
Gigabit Ethernet
Port Mirroring
One-to-One, Many-to-One, Ingress/Egress/Both
Power Over Ethernet
Yes
Power Supply
DC Adapter
Protocols
IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1q, 802.1ab
Quality of Service
Yes
Series or Collection
Omada
SNMP
No
Stackable
Non-Stackable
Switch Form Factor
Desktop, wall mountable
True Color
Black
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
1.1
Width in Inches
6.2
