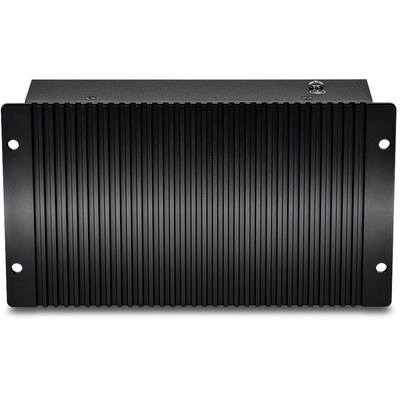

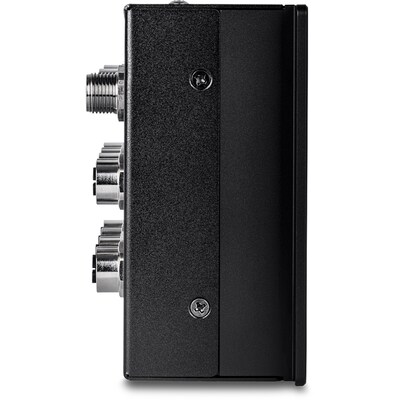

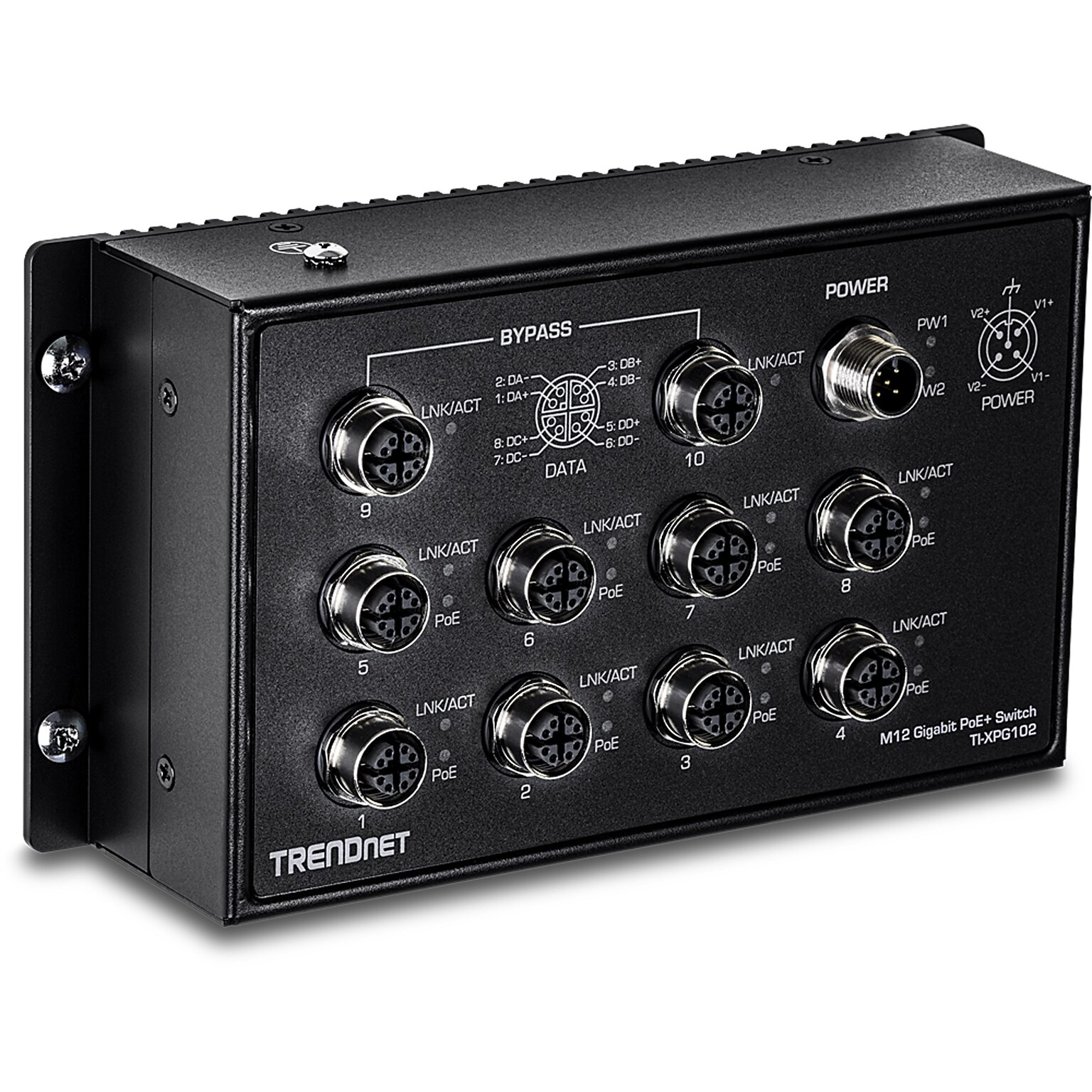

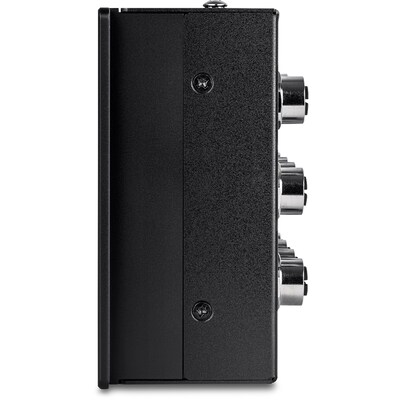

TRENDnet TI Series 10 Ethernet Ports Industrial-Class PoE Managed Switch, 20Gbps, Black (TI-XPG102)
Item #:
901-24605721
Model #:
TIXPG102
Brand:
TRENDnet
Not yet rated. Be the first to
Write a review!
Out of stock
$769.99
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description
The TRENDnet TI-XPG102 is a rugged 10-port industrial Gigabit PoE+ switch engineered for railway and rolling stock applications. With eight M12 (X-code) Gigabit PoE+ ports and two M12 (X-code) Gigabit ports featuring bypass functionality, it delivers up to 200W of PoE power at 56V DC. Housed in an IP40-rated metal enclosure, this switch withstands extreme temperatures from -40° to 75°C and resists vibration and shock, meeting EN 50155 and EN 50121 standards. Designed for secure and reliable connectivity in harsh environments, it supports advanced features like Jumbo Frame, QoS, VLAN, SNMP, and LACP. Ideal for buses, trains, and industrial automation, the TI-XPG102 ensures uninterrupted network performance with a 20Gbps switching capacity and lifetime warranty.
- Offers 10 Ethernet ports, Gigabit performance, and full Layer 2 managed switch capabilities.
- Supports PoE+ with up to 30W per port and a total budget of 200W @ 56V DC.
- Delivers 20Gbps switching capacity and 14.88Mpps forwarding rate for high-throughput networks.
- Built in a wall-mountable, rail-mountable IP40-rated metal enclosure for industrial deployment.
- Designed for rugged wired Ethernet environments.
- SNMP v1/v2c/v3 support enables remote monitoring and network management.
- Includes Quality of Service (QoS) for traffic prioritization and bandwidth control.
- Features VLAN, LACP, Jumbo Frame, and 6kV ESD protection for secure, reliable operation.
- Operates in full-duplex mode with bypass ports for uninterrupted connectivity.
- Consumes 5.76W without PoE; supports energy-efficient DC input from 24–56V.
- Complies with EN 50155, EN 50121, CE, FCC, and IEC EN 60950-1 standards for railway use.
Specifications
Address Database Size
8000
Auto-Detecting
Yes
Auto-Sensing
Yes
Brand
TRENDnet
Buffer Memory
512KB
Data Rate Performances
10/100/1000Mbps
Data Transfer Rate
20Gbps switching capacity; 14.88Mpps forwarding rate
Depth in Inches
6.3
Ethernet Number of Ports
9 to 10
Full-Duplex
Yes
Gaming
Non Gaming
Height in Inches
2.0
Input Voltage
24–56V DC
Jumbo Frame
9KB
LACP
Yes
Layer
2
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
Auto MDI/MDIX Crossover
Network Management Type
Managed Switch
Number of Ethernet Ports
10
Performance Class
Gigabit Ethernet
Power Over Ethernet
Yes
Power Supply
DC Powered
Protocols
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
Quality of Service
Yes
Series or Collection
TI Series
SNMP
v1, v2c, v3
Stackable
Non-Stackable
Switch Form Factor
Rail-Mountable, Wall Mountable
True Color
Black
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
1.94
Width in Inches
3.8
Wireless Connectivity
No
