Tripp Lite Single-Phase 200/208/220/230/240 V Switched Power Distribution Unit, 24-Outlet, Black (PDUMV20HVNETLX)
Item #:
369-IM12DB228
Model #:
PDUMV20HVNETLX
Brand:
Tripp Lite
Not yet rated. Be the first to
Write a review!
Out of stock
$1,344.00
Per each
Want an extra discount today, and every day? Start your free trial.
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item
Description

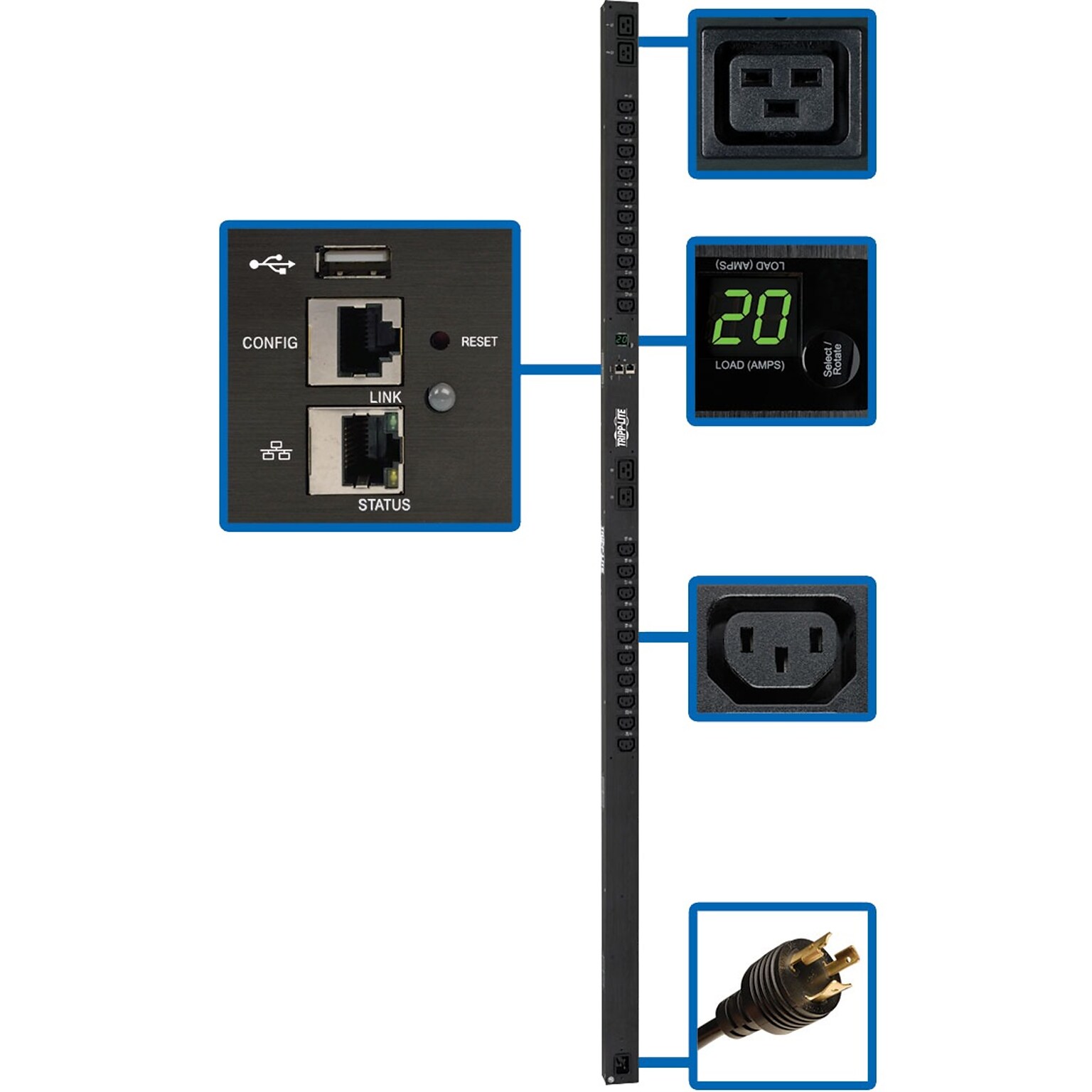

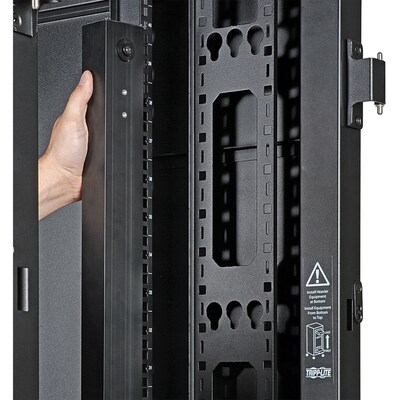

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
- 24 individually controllable outlets-20 C13, 4 C19

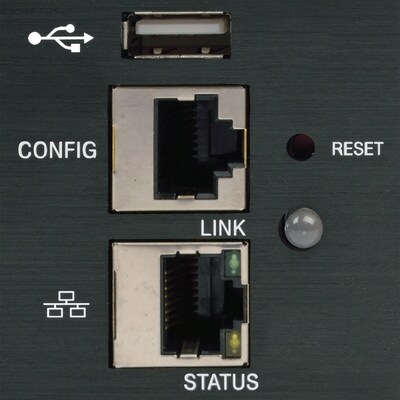

- Built-in LX Platform interface for 24/7 remote access

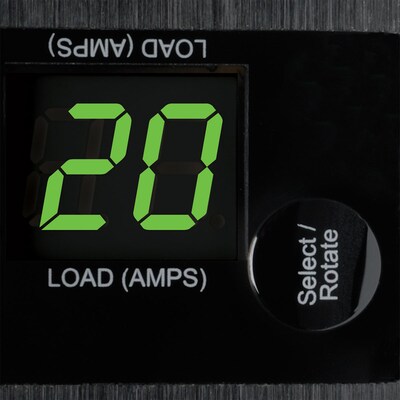

- Digital ammeter for on-site load monitoring in real time
- C20 inlet with 10ft NEMA L6-20P AC power cord
Specifications
Brand
Tripp Lite
Cable Length (ft.)
10
Depth in Inches
2.65
Height in Inches
70
Input Connector
1 x NEMA L6-20P, 1 x IEC 60320 C20
Input Current
20 A
Input Voltage
200/208/220/230/240 V
Load Capacity
3.2 - 3.8 kW
Outlet Connectors
4 x IEC 60320 C19, 20 x IEC 60320 C13
Outlet Count
24
Output Frequency
50/60 Hz
Phase
Single-Phase
Power Distribution Unit Type
Switched
Power Supply
200/208/220/230/240 V
True Color
Black
Warranty Information
2 Year
Weight (lbs.)
8.5
Width in Inches
2.2
