Tripp Lite SmartPro 750 VA 600 W Line-Interactive Rackmount UPS (SMART750RM1UN)
Item #:
901-IM11R1391
Model #:
SMART750RM1UN
Brand:
Tripp Lite
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Battery run time: 4.9 mins full load, 13.2 mins half load, Recharge time: Less than 4 hrs.
- Battery type: Rechargeable battery
- Cable length: 10'
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Start your membership
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item.
Product details
Reviews
Battery Backup Connectivity
Battery Backup LCD Display
Battery Backup or UPS Device Type
Battery Backup or UPS Form Factor
Battery Backup Run Time
Brand
Mountable
Operating Temperature (Degrees)
Power Capacity (VA)
Rack Units
USB Connectivity
VA Rating
Battery Life (Years)
Compliance Standards
Connector, Port or Interface Type(s)
Cord Length (ft.)
Depth in Inches
Height in Inches
Joule Rating
On-Line Phase
Outlet Count
Output Power Capacity (W)
Plug or Connector
Series or Collection
True Color
Types of Battery
Warranty Information
Weight (lbs.)
Width in Inches
Charge Time (hours)
$1,077.99 each
USB/Serial
No
Line-Interactive UPS
Rackmount
less than 10 minutes
Tripp Lite
Mountable
32 - 104 deg F
750
1U
USB Connection
501-750
N/A
FCC Part 15 Category A , CSA, NOM and UL1778
N/A
10
16.75
1.75
450
N/A
N/A
N/A
N/A
N/A
N/A
N/A
2 Year
30
17.5
4
N/A
No
UPS Replacement Battery
Desktop
less than 10 minutes
APC
Mountable
32 - 104 deg F
750
N/A
No USB Connection
501-750
5-Mar
RoHS Exemption 7b
N/A
N/A
16.5
3.5
N/A
N/A
N/A
N/A
N/A
Replacement Battery Cartridge #116
Black
Lead Acid Battery
N/A
23.15
6.5
N/A
USB
No
Line-Interactive UPS
Rackmount
less than 10 minutes
Tripp Lite
N/A
32 - 104 deg F
500
1U
USB Connection
Less than 500
N/A
CAN/CSA C22.2 No. 107.3-14, UL 1778 5th edition R10.17, ICES Class A, NOM, FCC Class A certified, ICES-003:2016
1 x EPO (emergency power off), 1 x Management (RS-232) 9 pin D-Sub (DB-9), 1 x Management (USB), 1 x power NEMA 5-15P, 6 x power NEMA 5-15R
10.17
11.26
1.73
567
Single Phase
6
300
NEMA 5-15P, NEMA 5-15R
SmartPro
Black
Other
3 Year
15.83
17.3
N/A
USB/Serial
Yes
Line-Interactive UPS
N/A
11-20 min
APC
N/A
32 - 104 deg F
750
2U
USB Connection
501-750
N/A
RoHS, REACH, UL 1778, FCC Part 15, UL 1449, cUL
1 x Serial RJ-45, 1 x Management (USB), 1 x EPO (emergency power off), 1 x Management (Ethernet), 1 x power NEMA 5-15P, 8 x power NEMA 5-15R
N/A
19.3
17
540
N/A
8
675
NEMA 5-15P, NEMA 5-15R
Smart-UPS X
Black
Lead Acid Battery
3 Year
48.6
3.5
N/A
Description

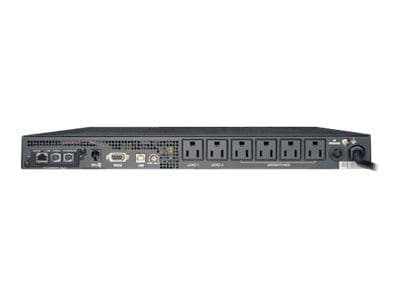

The Tripp Lite SmartPro 750 VA 600 W 1U line-interactive rackmount UPS is a vital backup power source during mains power failure. This UPS has USB and DB9 serial interface to support simultaneous communications. It incorporates automatic voltage regulation technology to get rid of the minor power fluctuations without switching to battery power. It enables remote outlet management through integrated two bank switched PDU to achieve load shedding or remote reboot of individual devices. This UPS offers surge protection to critical network applications. It comes along with mounting brackets that support 2 and 4-post installation.
- Battery run time: 4.9 mins full load, 13.2 mins half load, Recharge time: Less than 4 hrs.
- Battery type: Rechargeable battery
- Cable length: 10'
- Output capacity: 750 VA
- Output watt capacity: 600 W
- Receptacles: Six NEMA 5-15R outlets
- Output voltage: 120 VAC
- Input voltage: 120 VAC, Input current: 7 A
- Joule rating: 450 J
- Form factor: 1U rack mountable
- Interface: DB9 serial, USB, RS-232
- Dimensions: 1 3/4"H x 17 1/2"W x 16 3/4"D
- Features steel construction for durability and fan cooling for reliable operation
- Operating temperature: 32 - 104 deg F, Storage temperature: 5 - 122 deg F, Humidity: 0 - 95 percent non-condensing
- Contains cabling for USB & DB9 monitoring and EPO switching, PowerAlert unattended shutdown and UPS/power monitoring software and instruction manual
- Meets FCC Part 15 Category A (EMI), CSA, NOM and UL1778 certifications and standards
- Weight: 30 lbs.
- Comes with 2 years warranty
Specifications
Battery Backup Connectivity
USB/Serial
Battery Backup LCD Display
No
Battery Backup or UPS Device Type
Line-Interactive UPS
Battery Backup or UPS Form Factor
Rackmount
Battery Backup Run Time
less than 10 minutes
Brand
Tripp Lite
Charge Time (hours)
4
Compliance Standards
FCC Part 15 Category A , CSA, NOM and UL1778
Cord Length (ft.)
10
Depth in Inches
16.75
Height in Inches
1.75
Joule Rating
450
Mountable
Mountable
Operating Temperature (Degrees)
32 - 104 deg F
Power Capacity (VA)
750
Rack Units
1U
USB Connectivity
USB Connection
VA Rating
501-750
Warranty Information
2 Year
Weight (lbs.)
30
Width in Inches
17.5
