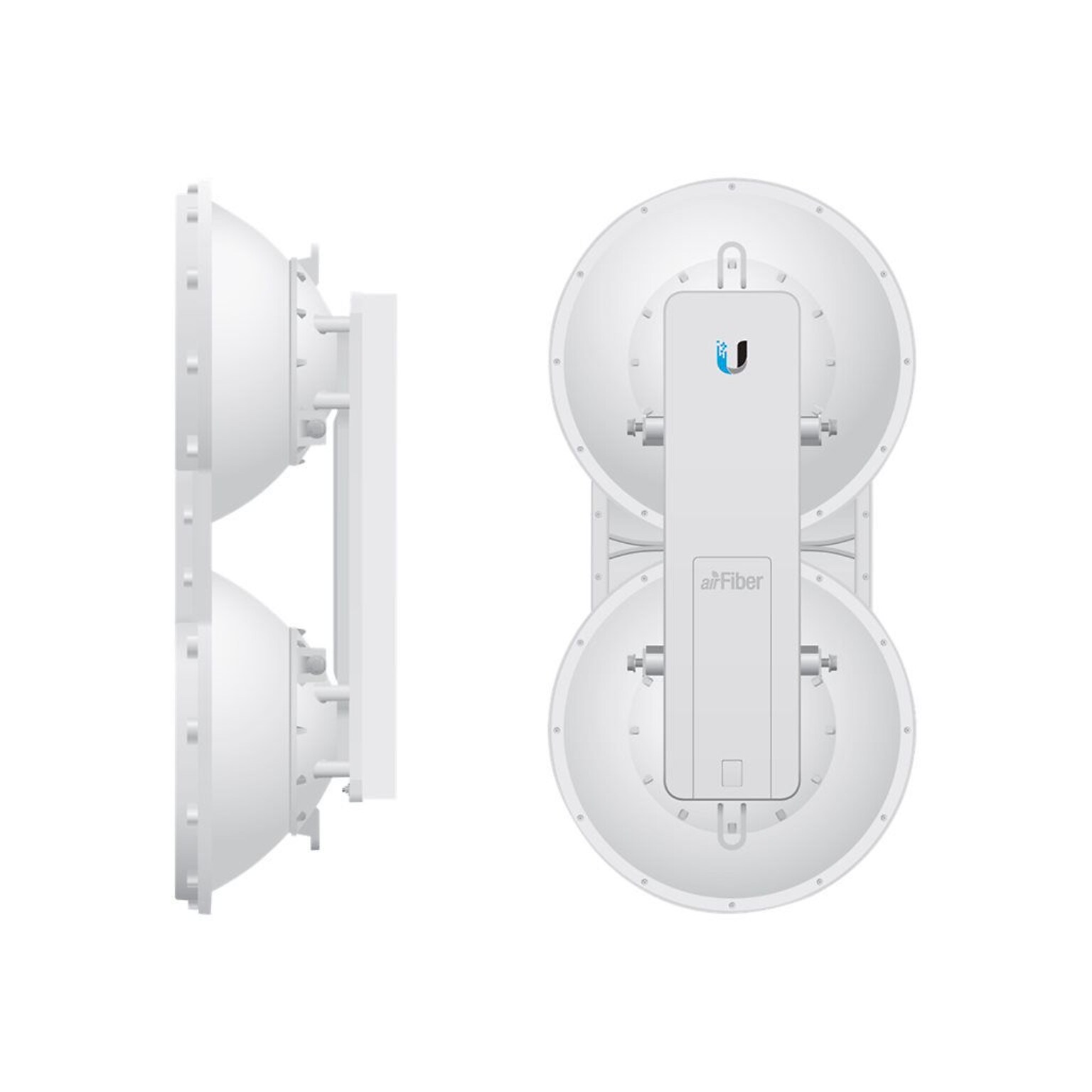

Ubiquiti® airFiber® 5 Full Duplex Point-to-Point Gigabit Radio, 1 Gbps (AF-5U US)
Item #:
901-IM1UQ3081
Model #:
AF-5U US
Brand:
Ubiquiti
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Full duplex point-to-point gigabit radio is perfect for carrier backhaul, building-to-building enterprise use or public safety applications
- Connections: One 10/100/1000 Ethernet port, one 10/100 Ethernet, one RJ-12 and alignment tone port
- Dimensions: 938.4 mmH x 468.4 mmW x 281.4 mmD
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Start your membership
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code.
Description
The Ubiquiti® airFiber® full duplex point-to-point Gigabit radio operates at 5 GHz high-frequency band. It is perfect for carrier backhaul, building-to-building enterprise use or public safety applications. It has one 10/100/1000 Ethernet port, one 10/100 Ethernet, one RJ-12 and alignment tone port for enhanced connectivity. It provides 128-Bit AES encryption with 164/205 forward error correction for added safety.
- Full duplex point-to-point gigabit radio is perfect for carrier backhaul, building-to-building enterprise use or public safety applications
- Connections: One 10/100/1000 Ethernet port, one 10/100 Ethernet, one RJ-12 and alignment tone port
- Dimensions: 938.4 mmH x 468.4 mmW x 281.4 mmD
- Power supply: 50 V, 1.2 A PoE (42-58VDC) GigE adapter, Power consumption: 40 W Maximum
- Frequency: High-band 5 GHz, Channel bandwidth: 100 MHz
- Maximum throughput: 1.0+ G/ps
- Maximum range: 100+ km
- Operating frequency: 5725 - 5850 MHz (FCC 15.247, IC RSS 21) 5725 - 5875 MHz (ETSI EN 302 502) 5725 - 6200 MHz (Other Regions)
- Encryption: 128-Bit AES, Forward error correction: 164/205, Cyclic prefix: 1/16 fixed, Uplink/downlink ratio: 50 percent fixed
- Antenna: 23 dBi (TX/RX gain), Beamwidth: 6 deg, Front-to-back ratio: 70 dB, Polarity: Dual-slant polarization, Cross-polarity isolation:
- Wind loading: 194 lbf at 125 mph, Wind survivability: 125 mph
- Mounting: Pole mount kit
- LEDs: Twelve status LEDs: Data port link/activity, data port speed, management port link/activity, management port speed, GPS synchronization
- Meets CE, FCC and IC certifications and standards
- Weight: 16 kg
Specifications
Brand
Ubiquiti
Depth in Inches
11.07
Height in Inches
36.94
Operating Distance (Feet)
328084
Operating Distance (miles)
62.137
Power-Wattage
40
Receiver & Amplifier Type
Receiver
Weight (lbs.)
35.27
Width in Inches
18.44
