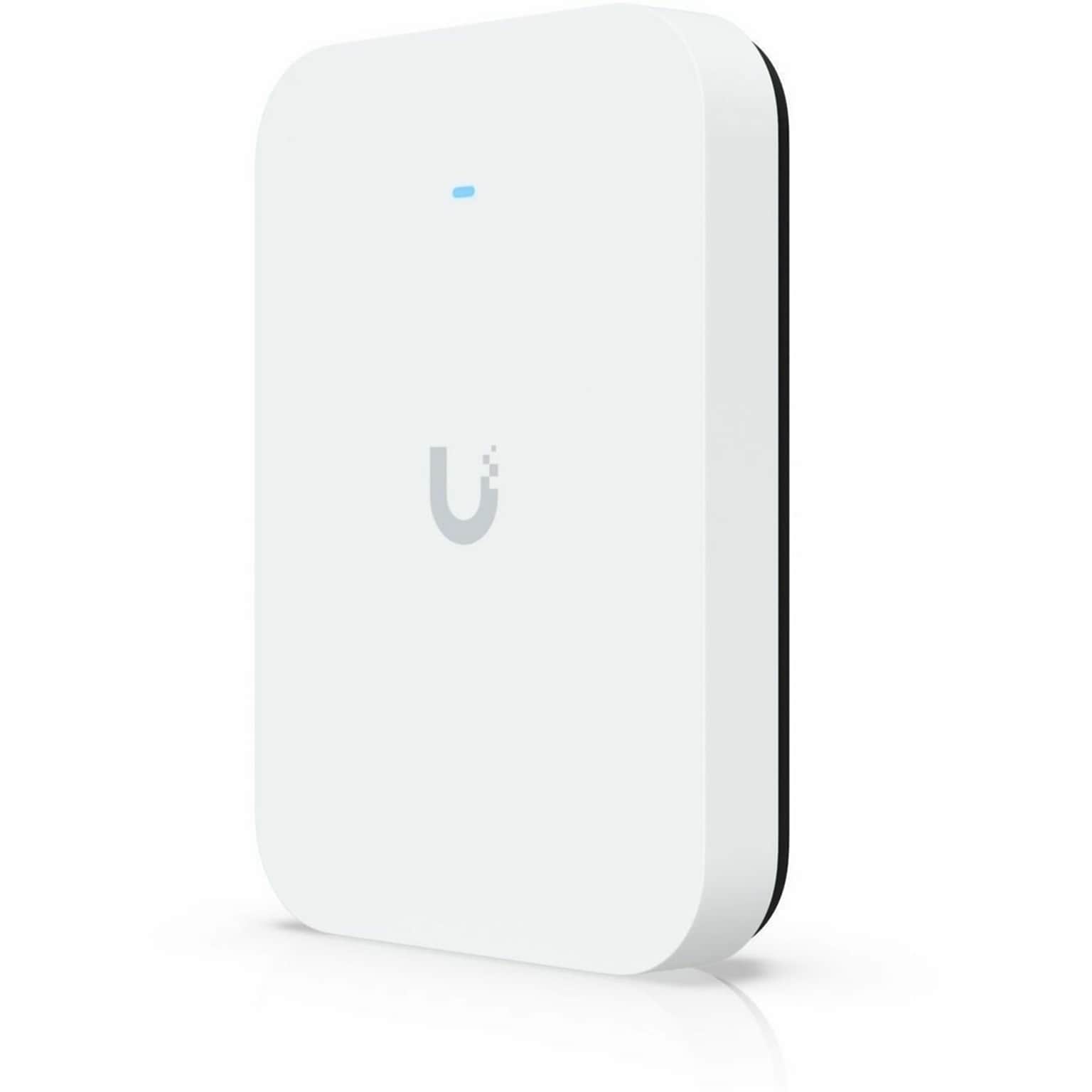

Ubiquiti U7 Pro XG 10788 Mbps Tri-Band PoE WiFi 7 Access Point, White (U7-PRO-XG-WALL-US)
Item #:
901-24701770
Model #:
U7PROXGWALLUS
Brand:
Ubiquiti
Not yet rated. Be the first to
Write a review!
Out of stock
$324.09
Per each
Save up to 10% on every order, plus free shipping and more. Try our calculator tool to see your savings.
Description
The Ubiquiti UniFi U7 Pro XG Wall is a high-performance wall-mounted Wi-Fi 7 access point designed for enterprise, hospitality, and high-density networking environments. Featuring tri-band 2.4 GHz, 5 GHz, and 6 GHz wireless connectivity with six spatial streams, it delivers aggregate wireless speeds of up to 10.8 Gbps and supports more than 300 connected devices. The access point includes a 10 Gigabit Ethernet uplink with PoE+ support for simplified installation and high-speed backhaul connectivity. Advanced features such as MU-MIMO, 320 MHz channel support, fast roaming, wireless meshing, band steering, captive portal functionality, and WPA3 security make it ideal for demanding business networks. With coverage of up to 1,500 square feet, a sleek low-profile wall-mounted design, and seamless management through the UniFi Network platform, the U7 Pro XG Wall provides reliable next-generation wireless performance for modern deployments.
- Optimized for high-density enterprise, hospitality, and commercial environments, this wall-mounted tri-band access point operates across 2.4 GHz, 5 GHz, and 6 GHz bands.
- Delivering next-generation wireless performance, it supports Wi-Fi 7 (802.11be) with speeds up to 10,788 Mbps (10.788 Gbps).
- Powered through PoE+, it supports the latest Wi-Fi 7 standard for simplified deployment and high-speed connectivity.
- Featuring broad compatibility, it supports 802.11 a/b/g/n/ac/ax/be wireless connectivity standards.
- Equipped with a 10GbE RJ45 Ethernet port, it enables ultra-fast wired uplink connectivity and PoE+ power delivery.
- Including essential installation accessories, the package contains the access point, mounting hardware, installation kit, and quick start guide.
- Utilizing PoE+ as its power source, it operates within a supported input range of 42.5V to 57V DC.
- Supporting modern wireless communications, it broadcasts on 2.4 GHz, 5 GHz, and 6 GHz frequency bands.
- Certified to enterprise-grade standards, it complies with CE, FCC, IC, NDAA, and IEEE 802.11be requirements.
Specifications
Antenna
Internal Antennas, 4 dBi (2.4GHz), 6 dBi (5GHz), 6 dBi (6GHz)
Brand
Ubiquiti
Compatible Operating System
UniFi Network Application
Connector, Port or Interface Type(s)
1 x 10GbE RJ45 Ethernet Port (PoE+)
Data Transfer Rate
10.788 Gbps
Data Transfer Rate (Gbps)
10.788
Data Transfer Rate (Mbps)
10788
Depth in Inches
1.32
Encryption Type
WPA-PSK, WPA2-PSK, WPA3
Frequencies
2.4Ghz, 5Ghz, 6Ghz
Frequency (Wireless)
Tri Band 2.4/5/6GHz
Gaming
Non Gaming
Height in Inches
6.1
Included Components
U7 Pro XG Wall Access Point, Wall Mounting Hardware, Installation Kit, Quick Start Guide
Max. Data Transfer Rate (Mbps)
More than 3000
Power Over Ethernet
Yes
Power Source
PoE+ Powered
Series or Collection
U7 Pro XG
True Color
White
Warranty Information
1 Year
Weight (lbs.)
1.11
Width in Inches
4.25
WiFi Range (Sq. Ft.)
1500
WiFi Standard
WiFi 7
Wireless Bands
Tri Band
Wireless Connectivity
802.11 a/b/g/n/ac/ax/be
Wireless Standard
BE
