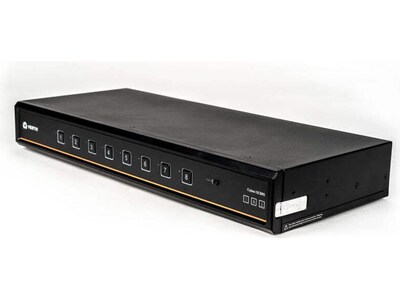

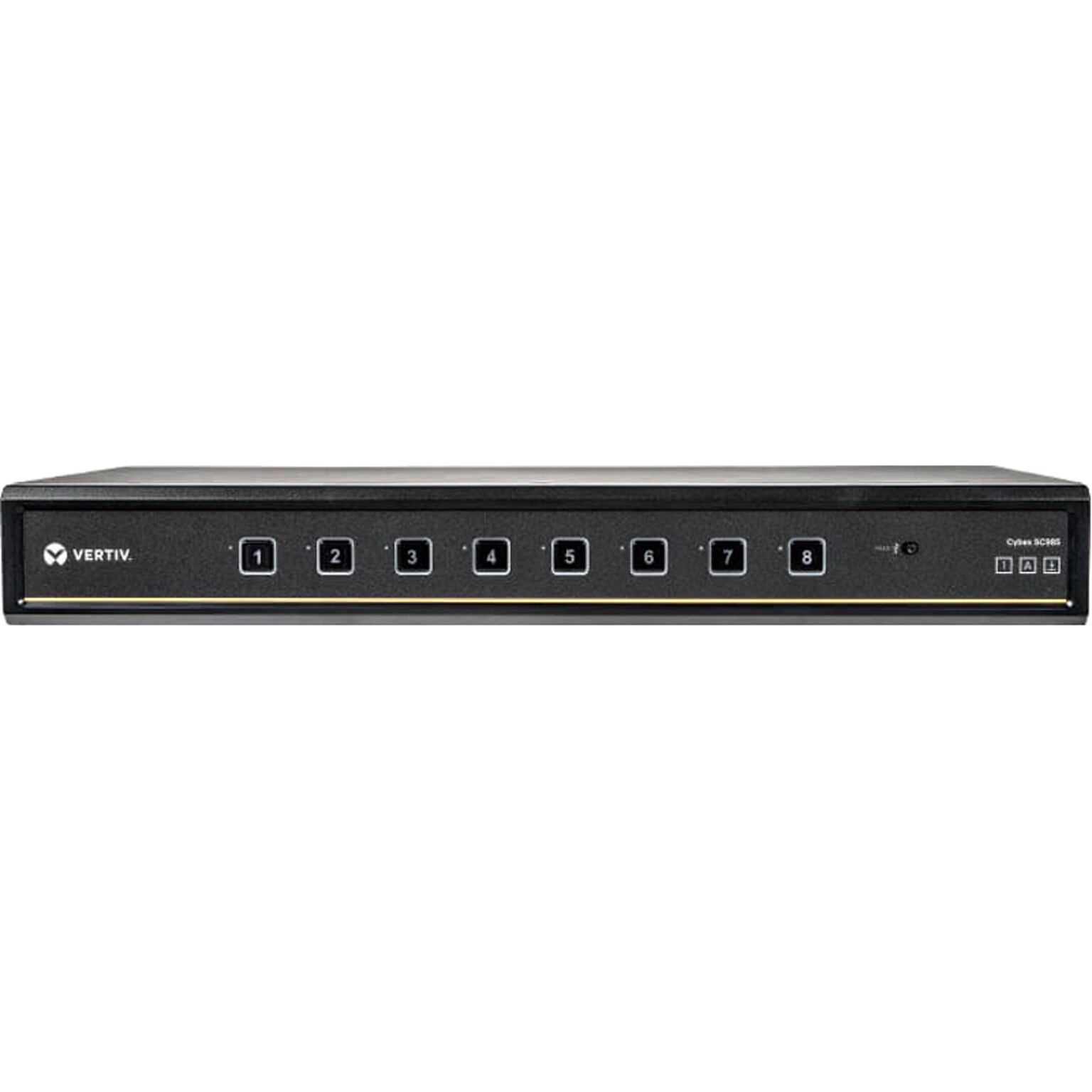

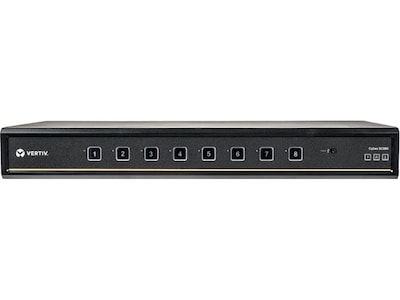

Vertiv Cybex Secure DPH Rack-Mountable 8-Port KVM Switch (SC985DPH-400)
$3,739.00
Per each
Vertiv Cybex Secure DPH Rack-Mountable 8-Port KVM Switch (SC985DPH-400)
Item #:
901-IM18FF402
Model #:
SC985DPH-400
Brand:
Vertiv
Not yet rated. Be the first to
Write a review!
$3,739.00
Per each
Want an extra discount today, and every day? Start your free trial.
Vertiv Cybex Secure DPH Rack-Mountable 8-Port KVM Switch (SC985DPH-400)
Description
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Vertiv Cybex SC985DPH is an eight port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse. The SC845DPH comes with a Universal Video Connector to support either DP, HDMI or DVI-D connectivity with resolution up to UHD 4K, 60Hz. The SC845DPH comes with a Dedicated Peripheral Port and Vertiv's patented keyboard lock status indicator.
- This eight port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse
- Features 8 x Universal Video Ports (each provides: 2 x video connectors, 1 x USB B 2.0, 1 x 3.5mm speaker), 1 x console (2 x video connectors, 2 x USB A 2.0, 1 x 3.5mm speaker)
- Dimensions: 2.2"H x 17.3"W x 7.3"D
- Supports either HDMI or DP on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
- Unidirectional data flow of keyboard, mouse, video, and audio
- Isolated switch ports provide discrete processing paths to each computer
- Native video supports up to UHD 4K at 60Hz
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Touch screen support
- Smart-card (CAC) or biometric readers for authentication on any attached computer
- Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
- Ease of setup and use
- Button LED colors can be customized for enhanced channel identification
- Always-on active anti-tampering system, and heavy-duty tamper resistant enclosure with holographic tamper evident seals
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- Freeze DPP Channel - Independently locks DPP channel to a specific computer
- Rack-mountable
- 3-year manufacturer limited warranty
Specifications
# of Ports
8
Brand
Vertiv
Connector, Port or Interface Type(s)
8 x Universal Video Ports (each provides: 2 x video connectors/1 x USB B 2.0/1 x 3.5mm)/1 x console (2 x video connectors/2 x USB A 2.0/1 x 3.5mm)
Connects Devices (To and From)
To up to four computers from a single keyboard, monitor and mouse
DisplayPort
Yes
HDMI
Yes
KVM Cable or Switch Type
KVM Switch
Maximum Resolution
UHD 4K , 60Hz
Power Consumption (Watts)
45
Power Source
AC Powered (100 - 240V AC), 1 x internal power supply (45W max)
Rack-Mountable
Rack-Mountable (365927)
Series or Collection
Cybex Secure DPH
USB
Yes
Warranty Information
3 Year
