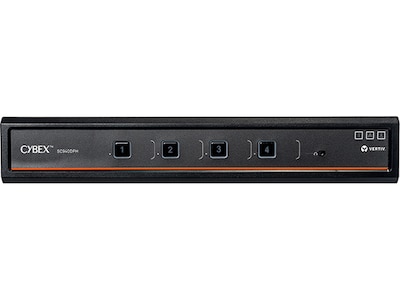

Vertiv Cybex Secure DPH SC940DPH-400 USB DisplayPort HDMI 4-Port KVM Switch
$1,988.00
Per each
Vertiv Cybex Secure DPH SC940DPH-400 USB DisplayPort HDMI 4-Port KVM Switch
Item #:
901-IM18FF399
Model #:
SC940DPH-400
Brand:
Vertiv
Not yet rated. Be the first to
Write a review!
$1,988.00
Per each
Want an extra discount today, and every day? Start your free trial.
Vertiv Cybex Secure DPH SC940DPH-400 USB DisplayPort HDMI 4-Port KVM Switch
Description
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Vertiv Cybex SC940DPH is a four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse. The SC940DPH comes with a Universal Video Connector to support either DP, HDMI or DVI-D connectivity with resolution up to UHD 4K 60Hz. Touchscreen support and Vertiv's patented keyboard lock status indicator are all standard features.
- This four port, dual head secure desktop KVM switch that gives users access up to four computers using a single keyboard, monitor and mouse
- Features 4 x Universal Video Ports (each provides: 2 x video connectors, 1 x USB B 2.0, 1 x 3.5mm speaker), 1 x console (2 x video connectors, 2 x USB A 2.0, 1 x 3.5mm speaker)
- Dimensions: 2.2"H x 13.7"W x 5"D
- Supports either HDMI or DP on the same physical video input and output ports (DVI-D supported with HDMI-to-DVI-D cable)
- Unidirectional data flow of keyboard, mouse, video, and audio
- Isolated switch ports provide discrete processing paths to each computer
- Native video supports up to UHD 4K at 60Hz
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Touch screen support
- Smart-card (CAC) or biometric readers for authentication on any attached computer
- Eliminate the need for multiple hardware resources, such as monitors, keyboards, mice, and cables
- Ease of setup and use
- Button LED colors can be customized for enhanced channel identification
- Always-on active anti-tampering system, and heavy-duty tamper resistant enclosure with holographic tamper evident seals
- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- 3-year manufacturer limited warranty
Specifications
# of Ports
4
Brand
Vertiv
Connector, Port or Interface Type(s)
4 x Universal Video Ports (each provides: 2 x video connectors/1 x USB B 2.0/1 x 3.5mm)/1 x console (2 x video connectors/2 x USB A 2.0/1 x 3.5mm)
Connects Devices (To and From)
To up to four computers from a single keyboard, monitor and mouse
DisplayPort
Yes
HDMI
Yes
KVM Cable or Switch Type
KVM Switch
Maximum Resolution
UHD 4K , 60Hz
Power Source
AC Powered (100 - 240V AC), 1 x external power supply (2.5A max)
Series or Collection
Cybex Secure DPH
USB
Yes
Warranty Information
3 Year
