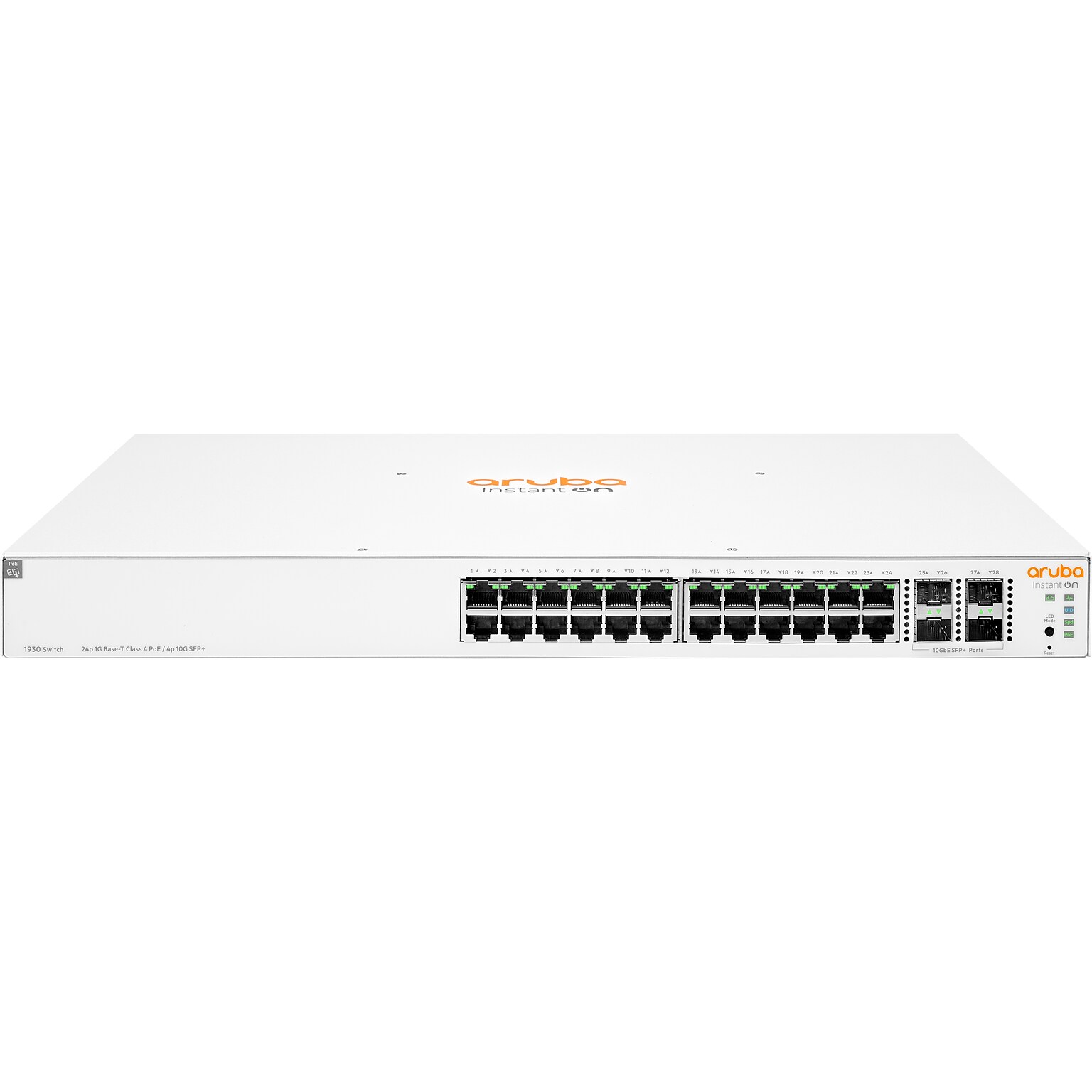

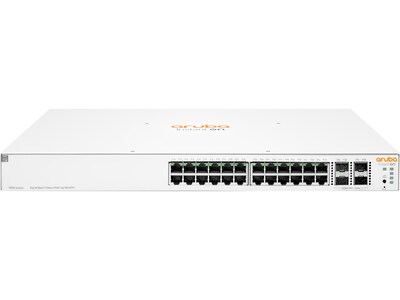

Aruba 1930 28-Port Gigabit Ethernet Managed Switch, White (JL683B#ABA)
Item #:
901-IM109AL99
Model #:
JL683B#ABA
Brand:
Aruba
Not yet rated. Be the first to
Write a review!
Product details
View all details
- Gigabit Ethernet managed switch features 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T), 4 SFP+ 1/10GbE ports
- PoE to power APs and IoT devices such as IP phones, surveillance cameras, and door locks
- Switching capacity: up to 128Gbps
Save up to 10% on every order, plus free shipping and more. See what you’d save.
Start your membership
Out of stock
Item is out of stock in your zip code 60069. Please try another zip code or see Other alternate products similar to this item.
Product details
Reviews
Brand
Buffer Memory
Ethernet Number of Ports
Full-Duplex
Gaming
Height in Inches
LACP
Layer
Max. Data Transfer Rate (Mbps)
Module Support
Network Management Type
Performance Class
Power Over Ethernet
Power Supply
Quality of Service
SNMP
Stackable
Switch Form Factor
True Color
VLAN Support
Warranty Information
Width in Inches
Address Database Size
Amperage (amps)
Auto-Detecting
Auto-Sensing
Data Rate Performance
Data Rate Performances
Data Transfer Rate
Depth in Inches
Gigabit Ethernet Uplink
Input Voltage
Jumbo Frame
Wireless Connectivity
Jumbo Frames
Number of Ethernet Ports
Port Mirroring
Protocols
Series or Collection
Weight (lbs.)
$450.69 each
Aruba
1.5MB
21 to 30
Yes
Non Gaming
1.73
Yes
3
More than 3000
SFP, SFP+
Managed Switch
Gigabit Ethernet
Yes
Internal
Yes
v1, v2c, v3
Non-Stackable
Rack Mountable
White
Yes
Limited Lifetime Warranty
17.42
N/A
N/A
N/A
N/A
N/A
N/A
N/A
10.42
N/A
100-127VAC
No
9216 Bytes
N/A
28
N/A
N/A
1930
7.69
TP-LINK
N/A
21 to 30
N/A
Non Gaming
1.7
Yes
N/A
1000 - 1499
N/A
Managed Switch
Gigabit Ethernet
Yes
AC Power Supply
Yes
N/A
Non-Stackable
Rack Mountable
Black
Yes
Limited Lifetime Warranty
17.3
N/A
N/A
N/A
N/A
N/A
10/100/1000Mbps
N/A
13
N/A
100-240Vac
9KB
N/A
N/A
24
Yes
N/A
Jetstream
N/A
TP-LINK
4MB
7 to 8
N/A
Non Gaming
1.7
Yes
3
More than 3000
SFP, SFP+
Managed Switch
Gigabit Ethernet
Yes
N/A
Yes
v1, v2, v3, v2c
Stackable
Rack Mountable
Black
Yes
Limited Lifetime Warranty
11.6
8000
N/A
Yes
Yes
N/A
10/100/1000Mbps
20Gbps
7.1
N/A
100
9KB
N/A
N/A
8
N/A
N/A
Jetstream
N/A
Aruba
1.5MB
21 to 30
Yes
Non Gaming
1.73
Yes
2
N/A
SFP, SFP+
Smart Switch
Gigabit Ethernet, Fast Ethernet
N/A
Internal
N/A
v1, v2c, v3
N/A
Desktop
White
Yes
Limited Lifetime Warranty
17.42
16000
0.5
Yes
Yes
128 Gbps
N/A
N/A
8.72
Four SFP Fiber Upllinks
100-127VAC/200-240VAC
N/A
N/A
9216 Bytes
N/A
Yes
IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.1Q/802.1p/802.3ad/802.1X/802.3az/802.1D/802.1W/802.1S/802.1AB
Instant On 1930
5.32
Description
The Aruba Instant On 1930 switches features advanced, smart-managed, fixed- configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They're made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance. Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What's more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform. Built-in security features protect your network from unauthorized access by allowing you to segment traffic and define access to each area of the network. And all of this is included in the price of the hardware there are no hidden subscription or licensing fees.
- Gigabit Ethernet managed switch features 24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T), 4 SFP+ 1/10GbE ports
- PoE to power APs and IoT devices such as IP phones, surveillance cameras, and door locks
- Switching capacity: up to 128Gbps
- Comes in a rack-mountable design
- Facilitates remote management with SNMPv1/v2c/v3 management station that discovers and monitors the switch
- Quality of service features include: traffic prioritization, IEEE 802.1p/Q VLAN tagging, Class of Service (CoS), and Advanced Classifier Based QoS
- Supports a choice of management interfaces: Cloud-Based management for entire network, Simple Local Web GUI management, firmware update, default DHCP client mode, port mirroring, event logging and alerts, account management, locator LED, and schedule configuration
- Throughput capacity: up to 95.23Mpps
- Plug-and-play switches that work together with Instant On APs right out of the box
- Mobile app to easily set up, monitor, and manage your network
- Security controls let you define access in each area of your network, keeping your business data safe
- Lifetime manufacturer limited warranty
- 195 W PoE Budget
Specifications
Brand
Aruba
Buffer Memory
1.5MB
Depth in Inches
10.42
Ethernet Number of Ports
21 to 30
Full-Duplex
Yes
Gaming
Non Gaming
Height in Inches
1.73
Input Voltage
100-127VAC
Jumbo Frame
9216 Bytes
LACP
Yes
Layer
3
Max. Data Transfer Rate (Mbps)
More than 3000
Module Support
SFP, SFP+
Network Management Type
Managed Switch
Number of Ethernet Ports
28
Performance Class
Gigabit Ethernet
Power Over Ethernet
Yes
Power Supply
Internal
Quality of Service
Yes
Series or Collection
1930
SNMP
v1, v2c, v3
Stackable
Non-Stackable
Switch Form Factor
Rack Mountable
True Color
White
VLAN Support
Yes
Warranty Information
Limited Lifetime Warranty
Weight (lbs.)
7.69
Width in Inches
17.42
Wireless Connectivity
No
